Advanced > RF Power menu item

Configuring the transmission power

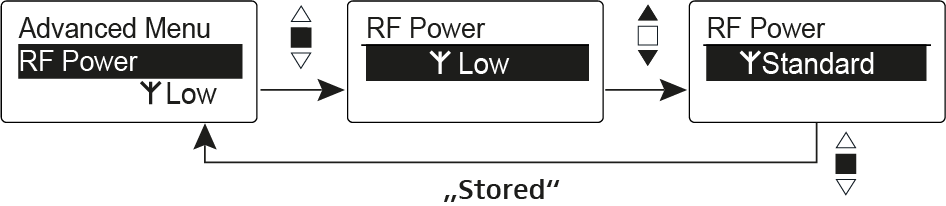

You can configure the transmission power in three steps in the RF Power menu item.

Please note the information at the following address: sennheiser.com/sifa.

Setting range:

Low: 10 mW
Standard: 30 mW
High: 50 mW
