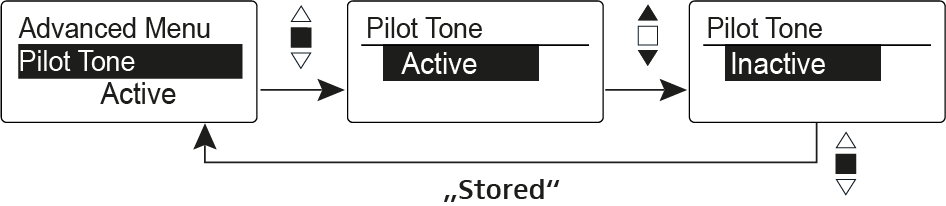

Advanced > Pilot Tone menu item

Activating/deactivating pilot tone transmission

The pilot tone has an inaudible frequency that is sent from the transmitter and evaluated by the receiver. It supports the receiver’s squelch function.
