Connecting receivers

You can connect and operate up to four stationary receivers to the ASA 214.

Sennheiser receivers of the ew G4 and ew G3 series can also be supplied with power from the ASA 214.

The following receivers are compatible:
  • evolution wireless G4:
    • EM 100 G4
    • EM 300-500 G4
  • evolution wireless G3:
    • EM 100 G3
    • EM 300 G3
    • EM 500 G3
  • 2000 series:
    • EM 2000 (with its own power supply)
    • EM 2050 (with its own power supply)

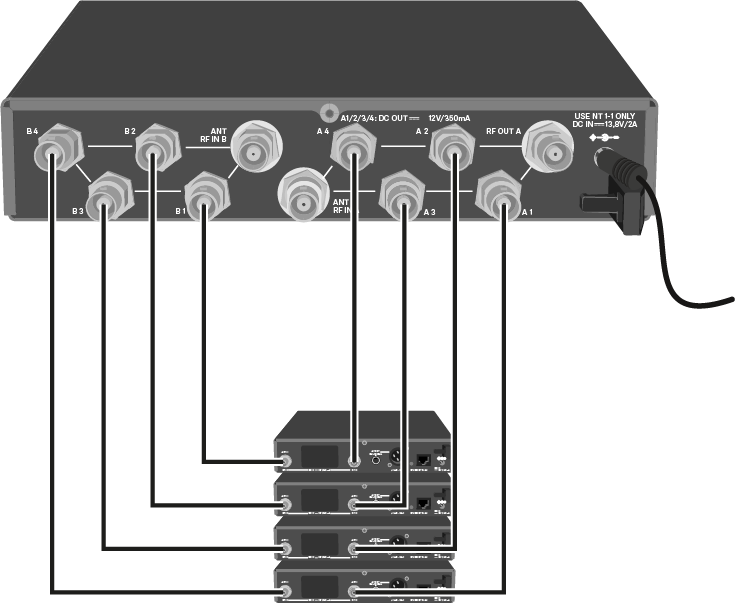

To connect the receivers to the ASA 214 antenna splitter:
  1. Connect one of the receiver’s antenna inputs to one of the BNC sockets A1 to A4 using one of the supplied BNC cables.
    The compatible receivers listed above do not require their own power supply. They are powered via the BNC sockets A1 to A4.
  2. Connect the receiver’s other antenna input to one of the BNC sockets B1 to B4 using one of the supplied BNC cables.
