System -> This Device menu item

This menu item allows you to change the device name, view software and hardware information, or reset the device to factory settings.

To open the This Device menu item:

In the System menu, navigate to the This Device menu item.
Press the jog dial to open the menu.

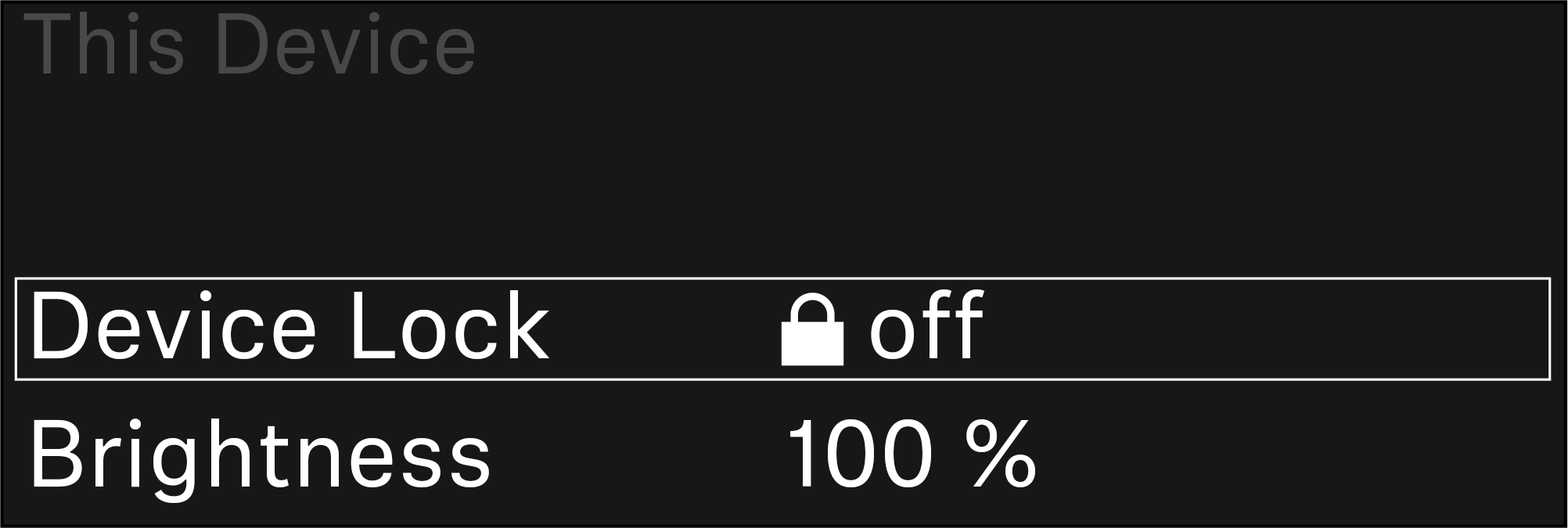

The following view is displayed:
Choose from the following:
- Device Lock: Set the lock-off of the receiver.
- Brightness: Set the brightness of the display.
- Device Name: Open this menu item to change the device name. This receiver will be displayed in the network under this name.
- MAC: Shows the MAC address of the receiver.
- Dante Name: Shows the name of the device in the Dante network.
- Dante Pri MAC/Dante Sec MAC: Shows the primary/secondary Dante MAC address of the receiver
- Software: Shows the software version of the receiver.
- HW Main/HW Front/HW Tuner1/HW Tuner 2/HW Interface: Displays the hardware versions of the boards installed in the receiver.
- Reset: Resets the receiver to factory settings.
