Connecting receivers in a Dante® network

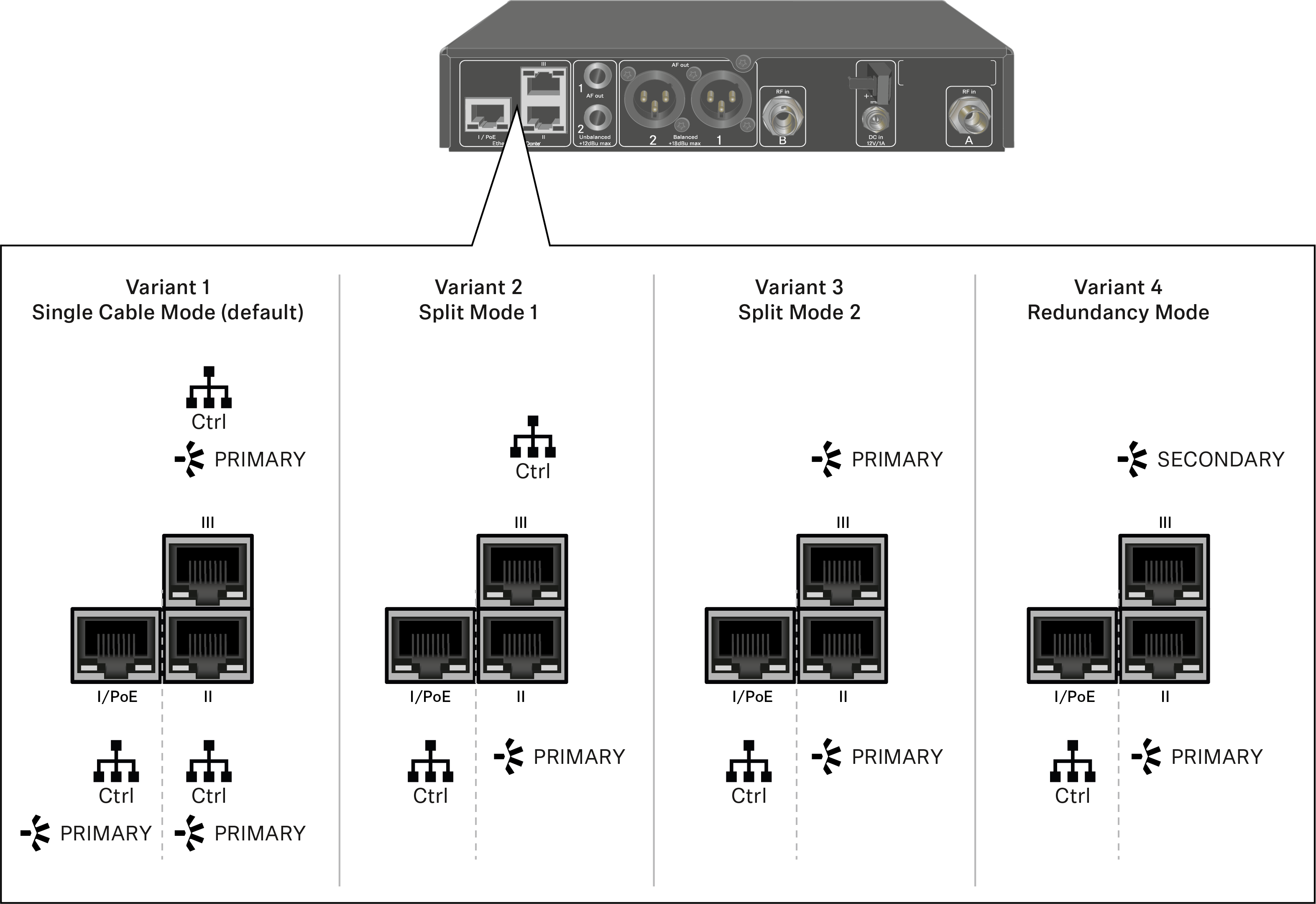

Assignment of the network connections

The network connections have a different assignment depending on the network mode set.

The network mode can be changed in the Network menu, see System -> Network menu item.

PoE = Power over Ethernet

Ctrl = network control via e.g. Wireless Systems Manager (WSM), Sennheiser Control Cockpit (SCC) or third-party media control

PRIMARY = Dante® primary

SECONDARY = Dante® secondary
