Pairing a receiver with a transmitter

The receiver and the transmitter of a set are factory pre-paired and therefore ready for immediate use. The radio link is automatically established as soon as both devices are switched on. You can disconnect the existing radio link and establish new radio links to two other devices.
To establish a new radio link between a receiver and a transmitter, proceed as follows:
  1. Switch on the receiver and the transmitter that you want to pair (see EKP Switching the EKP AVX on or off, SKM Switching the SKM AVX on or off and SK Switching the SK AVX on or off).
    The status LED on both the receiver and the transmitter indicates the current device status (see LED display, LED display and LED display).

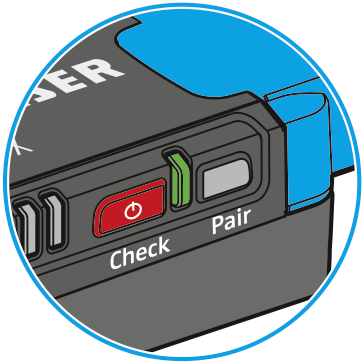

  2. Long-press, one after the other, the Pair buttons of the receiver and the transmitter to be paired until their status LEDs flash alternately green and red. You have 120 seconds between pressing the first button and the second button.
    Press pair on receiver appears on the transmitter display panel.

    Existing radio links to other devices are now disconnected.

  3. Wait for approx. 10 seconds until the radio link is established.
  • Once the radio link is successfully established, Paired appears on the transmitter display panel and the status LED on both the transmitter and the receiver lights up green.
  • If no radio link can be established, Pairing failed briefly appears on the transmitter display panel, followed by the message No Link . The status LED of the transmitter and/or the receiver lights up red.
