Product overview

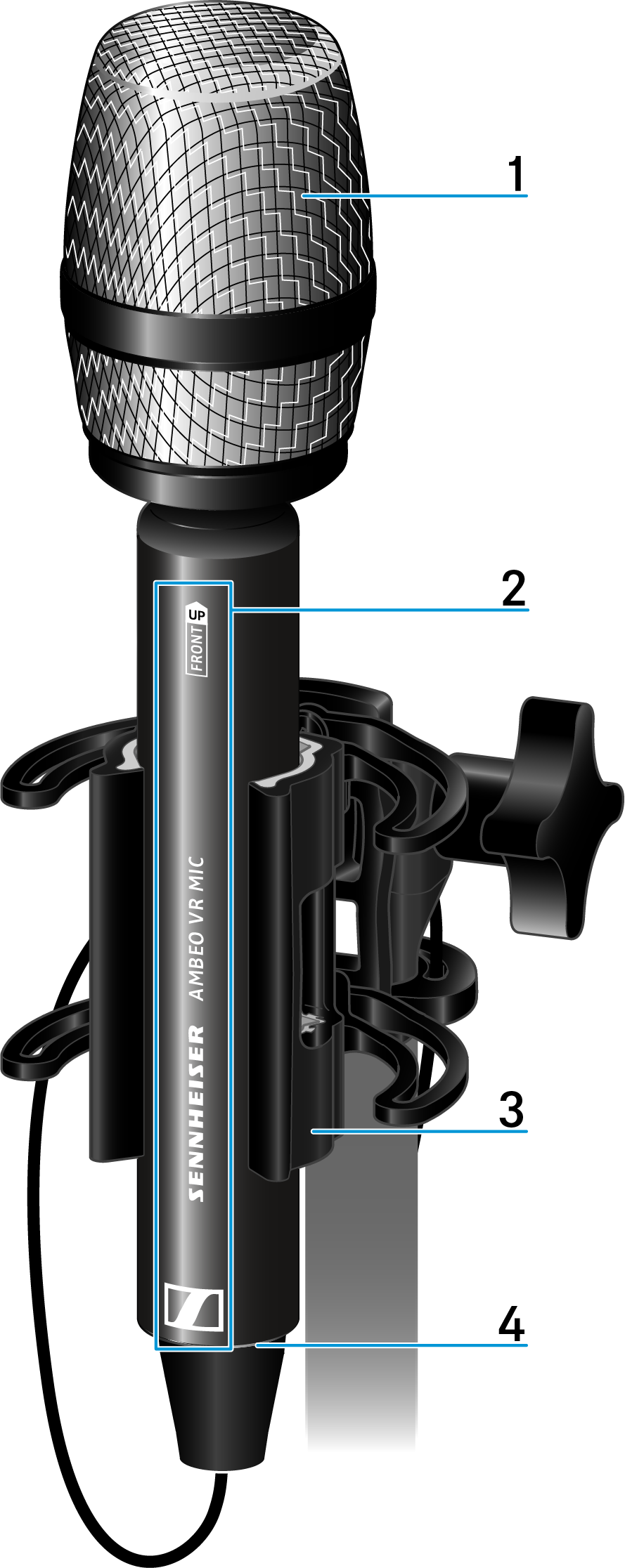

Microphone

1 Microphone basket: siehe Microphone capsules
2 Sound inlet direction, marked with the Sennheiser logo and the labeling "FRONT UP": siehe Positioning the microphone
3 Shock mount: siehe Mounting the microphone
4 DIN12M connection socket for the adapter cable: siehe Connecting the microphone

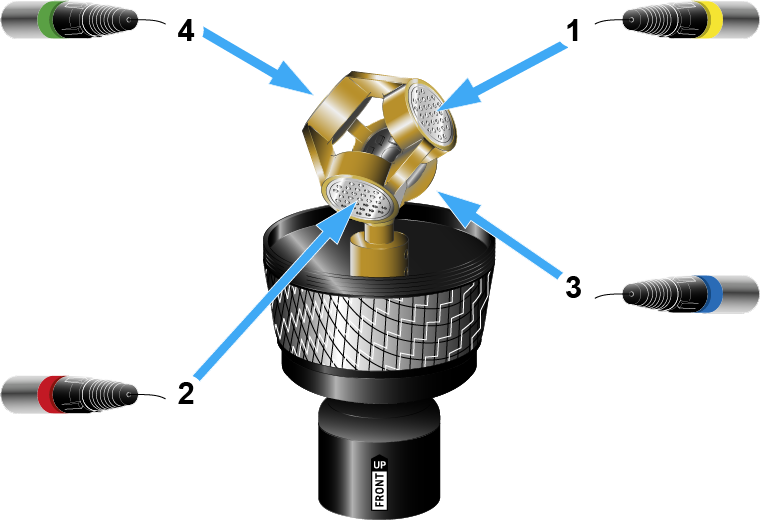

Microphone capsules

Channel 1: Front Left Up (FLU); Yellow XLR-3 connector
Channel 2: Front Right Down (FRD); Red XLR-3 connector
Channel 3: Back Left Down (BLD); Blue XLR-3 connector
Channel 4: Back Right Up (BRU); Green XLR-3 connector
