Streaming using Dante

Required hardware

You require an EM 9046 receiver equipped with an EM9046 DAN module (a Dante module provided by Sennheiser).

Required software

For Dante playback, you require Dante Virtual Soundcard by Audinate.

You additionally require the “AVS Firmware Updater” software developed by AuviTran to update the firmware of the EM 9046 DAN modules. The “AVS Firmware Updater” is only available for Windows.

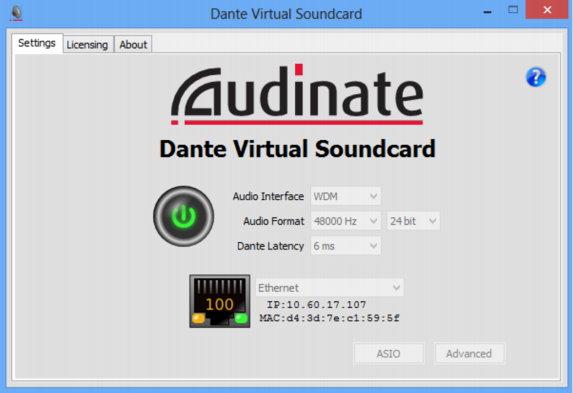

To turn on Dante Virtual Soundcard:
  1. Open the Dante Virtual Soundcard Control Panel.
  2. Click on the grayed out power on/off button.
    The power on/off button turns green, indicating that Dante Virtual Soundcard is turned on (for more information, refer to the Dante Virtual Soundcard User Guide).
