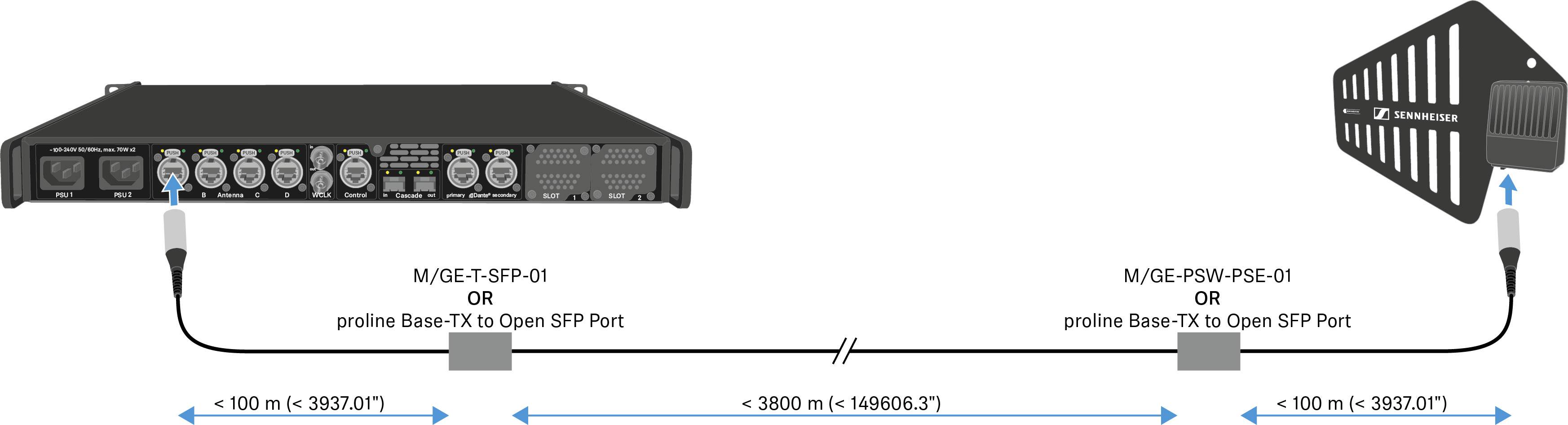

Antenna cable extension

Longer cable distances are possible with the use of fiber optic cables and media converters.

Sennheiser tested the recommend converters for a complete distance of 4 km (157480.31").

We only recommend the following converters for fully tested functionality:

Base Station:

Do not use converters with PoE to connect to the Base Station.
- Lantronix M/GE-T-SFP-01
DAD:
- Lantronix M/GE-PSW-PSE-01 (with PoE only for DAD)
- Lantronix M/GE-T-SFP-01 (needs a Class 2 PoE injector capable of supplying powering to the DAD (power consumption < 6.5 W))
- Barnfind Technologies BarnColor 4xEth (with PoE only for DAD)

The media converter must not have a switch function.
