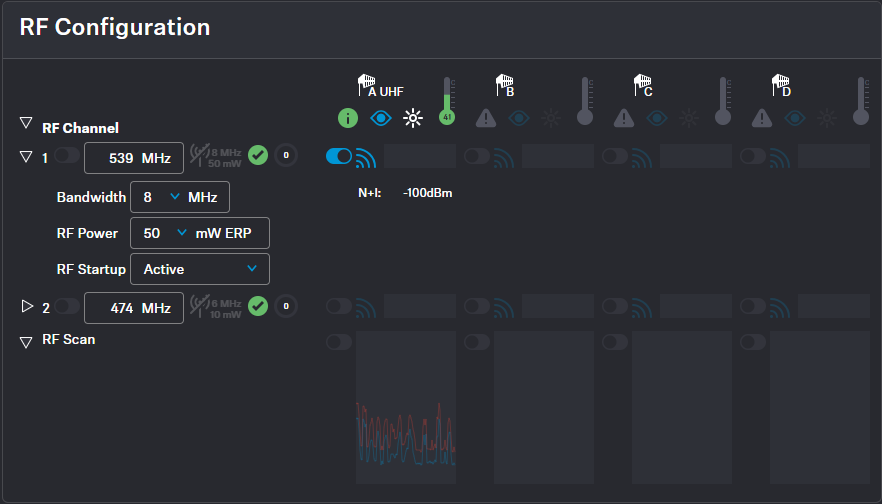

RF configuration

Here you can set up your RF channel and check the status of local permissions, your connected antenna, and any potential frequency interference in the surrounding area.

RF Channel

Display of two possible configurable RF channels RfC 1 and RfC 2
Display of the antenna (A-D) assigned to the RF channel

Frequency

Settings for frequency of the RF channel
The input is accepted via the ENTER key

The input cannot be accepted by switching with TAB.
Status indication of the RF channel with current settings
Permission indication for local country based on RF channel settings
- Valid properties acc. to the license and local regulations
- Invalid properties acc. to the license and local regulations

  The frequency and bandwidth must comply with local regulations.
Capacity utilization of the entire RF bandwidth in %

Bandwidth

Settings for bandwidth of the RF channel

The input cannot be accepted by switching with TAB.

The frequency and bandwidth must comply with local regulations. Permission is displayed via the icons (valid) and (invalid).

RF Power

Setting for the transition power of the transmitter

The frequency and bandwidth must comply with local regulations. Permission is displayed via the icons (valid) and (invalid).

RF Startup

Settings for the first RF start after switching off the device or when waking up the device after it has been in standby mode.

Antenna

Display of available antennas (A-D)
Readiness status of the RF channel
Identification button for configured antenna (flashes white 3x)
LED brightness of the antenna LED (off, dim, standard, bright)
Current antenna temperature
Indication for active RF
Frequency indication without any interference
Frequency indication with interference in the surrounding area
