Assigning an antenna for RF channel

You can choose between up to four connected antennas to assign them to your two possible RF channels.

For additional reliability in terms of redundancy or to extend your range, you can assign up to 4 antennas per channel and use them simultaneously.

The antennas can be assigned and unassigned, e.g. to perform an RF scan or to switch between the configured RF channels.

To assign an antenna for an RF channel:

In the top bar, navigate to Configuration > RF Configuration.

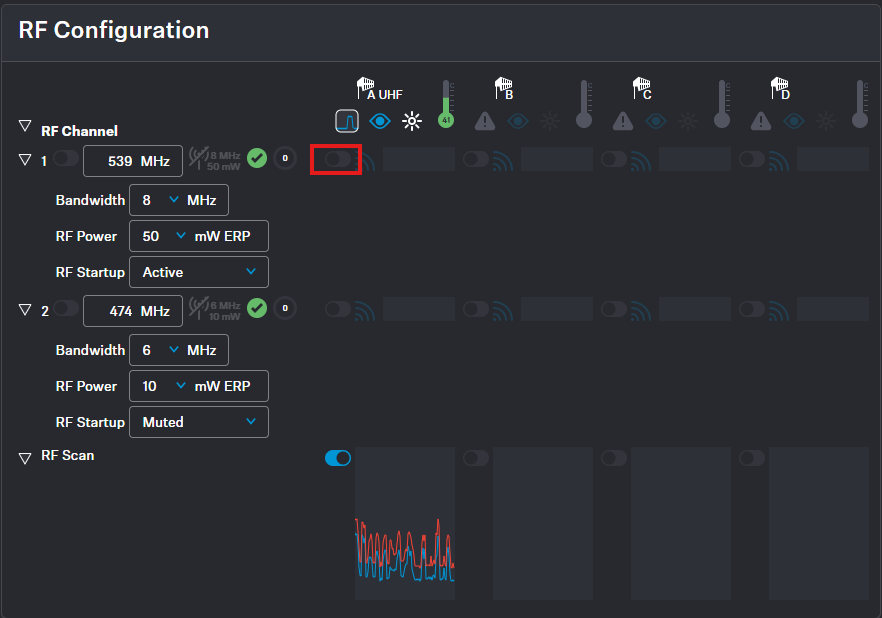

In your RF channel row, click on the toggle switch next to the utilization and interference icon .

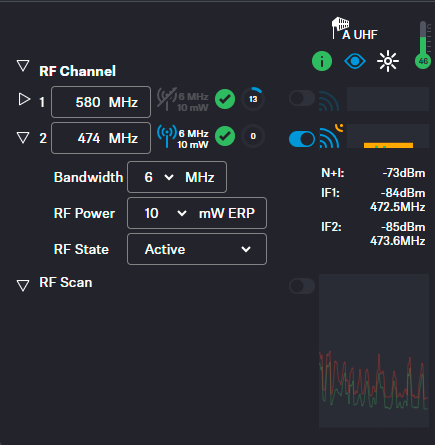

The toggle switch becomes blue . The antenna has been assigned to the RF channel and any potential interference is indicated by the icon.

The antenna has been assigned to a specific RF channel.
