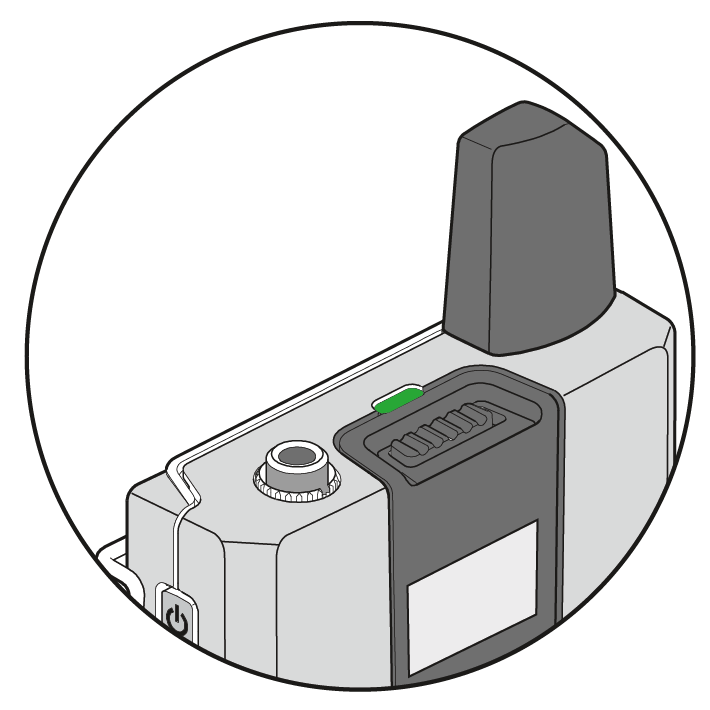

lights up green
|
A radio link to the receiver is established. The accupack of the bodypack transmitter is sufficiently charged. |

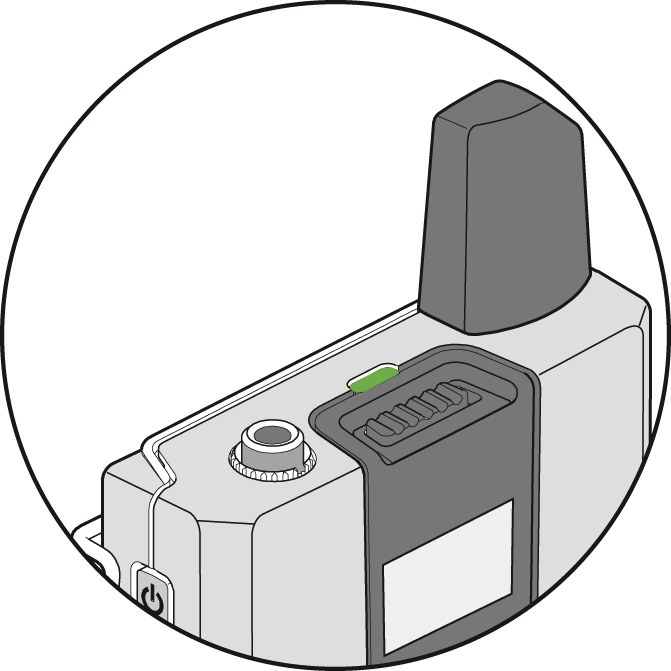

flashes green
|
The PAIR button has been short-pressed. Paired devices are being identified. |
flashes alternately green and red
|
The PAIR button has been long-pressed. The bodypack transmitter establishes a
radio link to a receiver whose PAIR button has also been long-pressed. |
lights up yellow
|
The bodypack transmitter has been muted with the MUTE switch. In addition,
Muted is displayed on the display panel. |
flashes yellow
|
The firmware is being updated. |
lights up red
|
No radio link to a receiver. In addition, No Link is displayed on the display panel. |

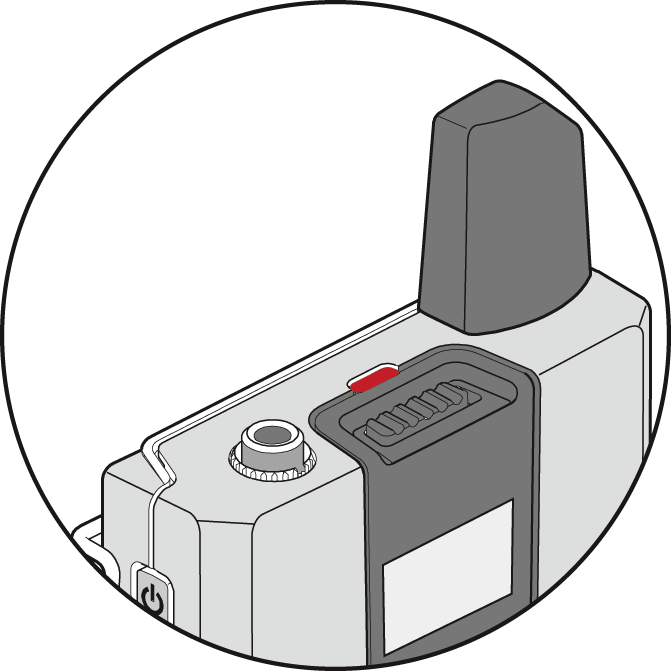

flashes red
|
The accupack capacity of the bodypack transmitter is only sufficient for max. 30 minutes of operation. |
