Mounting the microphone on the boom arm
A stable and level worktop (e.g. a desk) is required for mounting the boom arm.
Mounting the microphone on the boom arm:

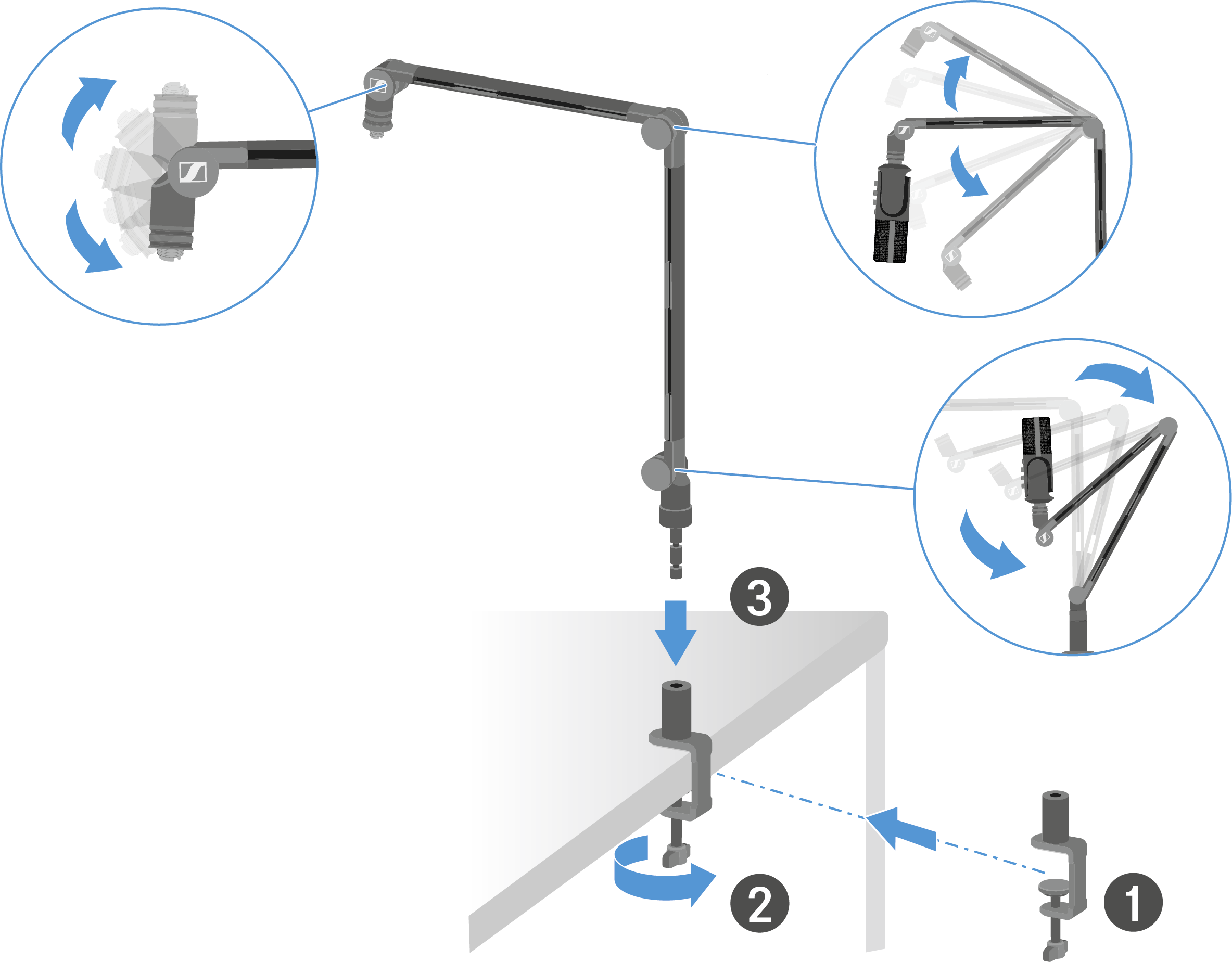

- Attach the supplied table clamp to a stable worktop.
- To do this, tighten the screw cap in the direction indicated by the arrow.
-
Insert the boom arm's locking pin into the table clamp until you hear the holder click into place.
You can use the rotating external thread on the boom arm to fix the microphone in the desired position. -

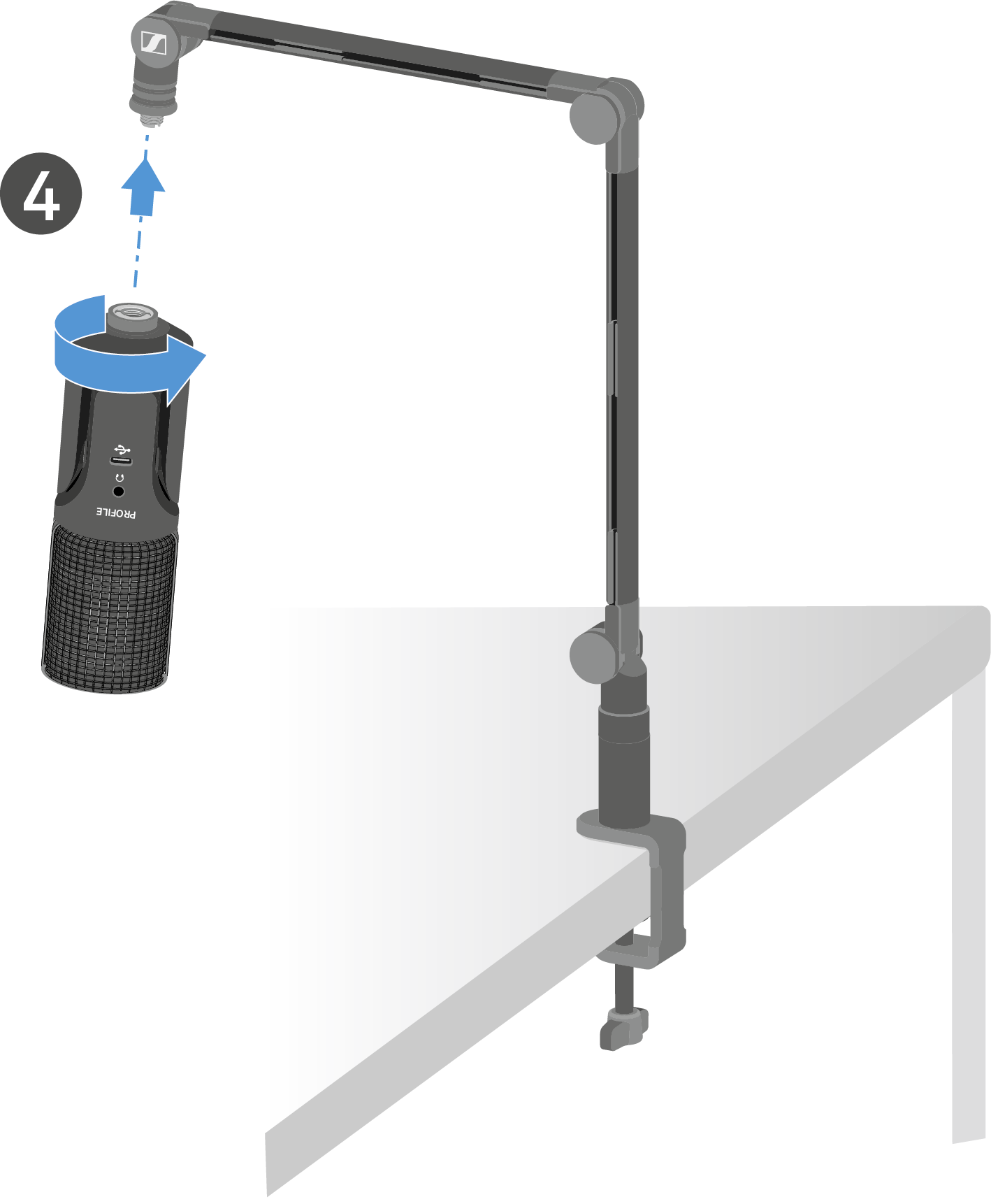

Manually screw the USB microphone onto the screw thread on the boom arm until the microphone is fixed in place.
You can use the rotating external thread on the boom arm to fix the microphone in the desired position.
