Pin assignment

3.5 mm stereo jack plug

Plug for headphone and earphone cables, e.g. IE 4.

Connect to:

• EK IEM G4
• EK 500 G4

3.5 mm mic jack plug Mic

Plug for lavalier and headset microphone, e.g. ME 2

Connect to:

• SK 100 G4
• SK 300 G4-RC
• SK 500 G4

3.5 mm line jack plug Line

Plug for line and instrument cables, e.g. Ci 1-N

Connect to:

• SK 100 G4
• SK 300 G4-RC
• SK 500 G4

6.3 mm stereo jack plug, balanced (audio in/loop out)

Connect to:

• SR IEM G4 Audio In
• SR IEM G4 Loop Out

6,3 mm Mono-Klinkenstecker, unsymmetrisch

Connect to:

• EM 100 G4 Audio Out
• EM 300-500 G4 Audio Out

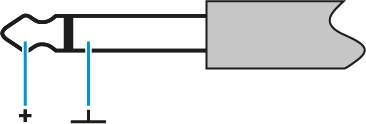

6.3 mm mono jack plug, unbalanced

Connect to:

• EM 100 G4 headphone input
• EM 300-500 G4 headphone input
• SR IEM G4 headphone input

XLR-3 plug, balanced

Hollow jack plug for power supply
