ASA 214 antenna splitter
| ASA 214 antenna splitter | 2 x 1:4 or 1 X 1:8, active |
| Connection cable | 8 pieces, 50 cm, BNC |
| Frequency range | ASA 214-UHF: 470 - 870 MHz at -3 dB ASA 214-1G8: 1785 - 1805 MHz at -3 dB |
| Amplification | In A – Out A: 0 ± 1 dB
In A – Out A1 ... A4: 0 ± 1 dB In B – Out B1 ... B4: 0 ± 1 dB |
| IIP3 | 20 dBm min. 23 dBm typ. |
| Impedance | 50 Ω |
| Reflection loss | 10 dB (all RF outputs) |
| Operating voltage | 13.8 V DC (with power supply unit NT 1-1) |
| Power consumption | ASA 214: 245 mA ASA 214-1G8: 350 mA |
| Total power consumption | max. 2.0 A with 4 receivers and 2 × 2 antenna amplifiers per antenna input |
| Antenna amplifier power supply at ANT RF IN A and ANT RF IN B | 12 V, 130 mA |
| Receiver power supply at A1 to A4 | 12 V (protected against reverse supply), 350 mA |
| Relative air humidity | 5 to 95 % |
| Temperature range | Operation: -10 °C to +55 °C (14 °F to 131 °F) Storage: -20 °C to +70 °C |
| Dimensions | approx. 212 x 168 x 43 mm |
| Weight | approx. 1090 g |

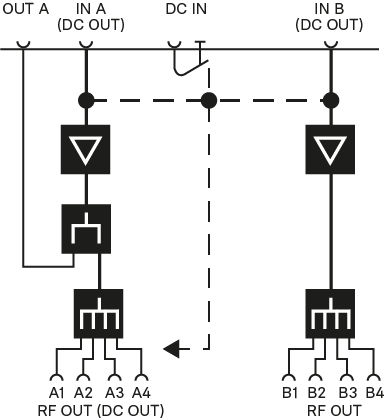

Block diagram
