AWM active directional antenna
Frequency ranges
- UHF I: 470 – 694 MHz
- UHF II: 823 – 1075 MHz
- 1 G8: 1785 – 1805 MHz
Apex angle (horizontal, -3 dB)
- UHF I: not applicable
- UHF II: approx. 80°
- 1 G8: approx. 110°
Front-to-back ratio
- UHF I: not applicable
- UHF II: approx. 10 dB
- 1 G8: approx. 10 dB
Antenna gain
- UHF I: ≥ +3.0 dBi (480 MHz) | ≥ +3.5 dBi (582 MHz) | ≥ +4.5 dBi (694 MHz)
- UHF II: ≥ +6.0 dBi
- 1 G8: ≥ +6.0 dBi
Antenna polarization
Linear
Amplification (signal booster, low-noise, band-selective, +/-1 dB)
- +12 dB: Max. amplification 12 dB
- +6 dB: Max. amplification 6 dB
- 0 dB1: Max. amplification UHF I, UHF II: -0.5; 1 G8: -1.5
- -6 dB: Max. amplification -6 dB
1 The band-selective booster is bypassed at 0 dB. This mode requires a DC power supply.
OIP3 (@ “+12 dB”)
≥ 35 dBm
Max. RF output power
- UHF I / UHF II: approx. +22 dBm
- 1 G8: approx. +18 dBm
RF connection
BNC female, DC coupled
Impedance
50 Ω
DC connection
5.5 x 1.6 mm DC hollow jack, polarity: + inside
Power supply (via BNC or DC)
12 V DC (9 – 18 V DC) / max. 100 mA @ 12 V
LED display
ON (white = “+12 dB”; blue = “+6 dB”; green= “0 dB”; orange= “-6 dB”)
OFF (no or insufficient power supply)
Thread for tripod mounting
3/8" inside thread
Mounting holes
VESA 100 x 100
Color
Traffic white (RAL: 9016)
Housing material
Halogen-free flame-retardant PC/ABS
Dimensions
- Without wall bracket: 180 x 180 x 53 mm
- With wall bracket: 180 x 180 x 63 mm
Weight
Approx. 700 g
Operating temperature range
-10 °C to +55 °C
Storage temperature range
-20 °C to +70 °C
Relative humidity
5 to 95%
Polar diagram
Normalized to max. antenna gain

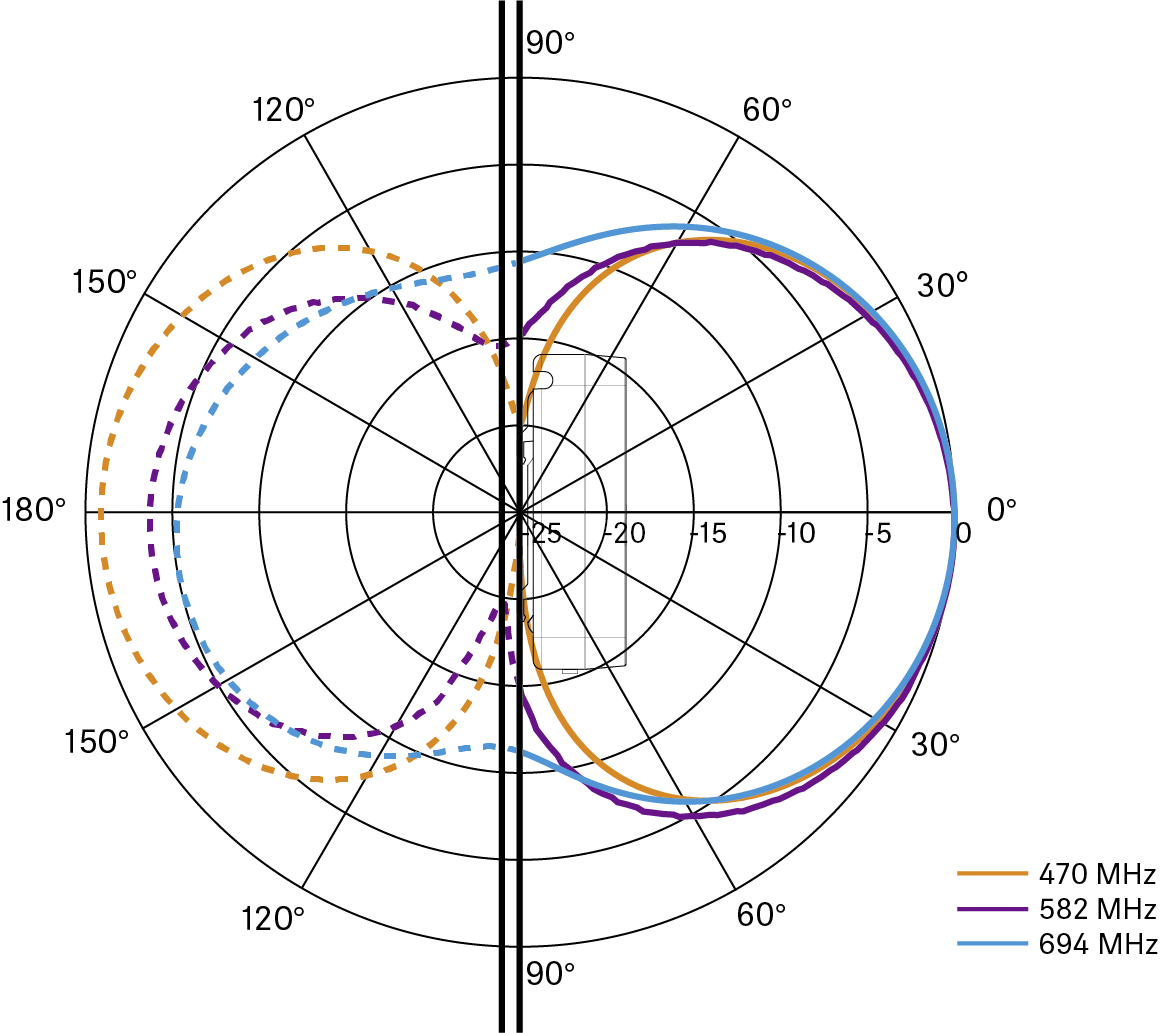

UHF (470 – 694 MHz) vertical [dB]

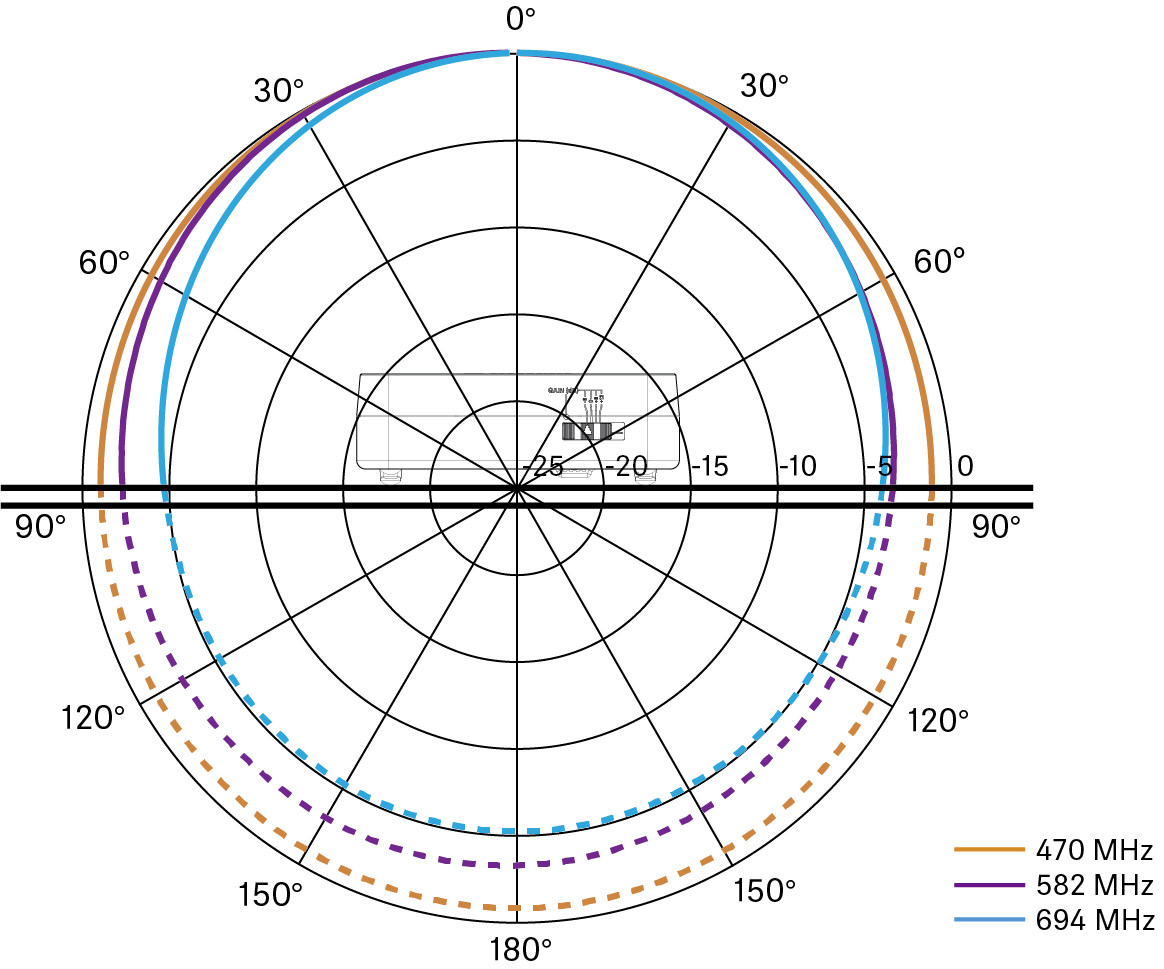

UHF (470 – 694 MHz) horizontal [dB]

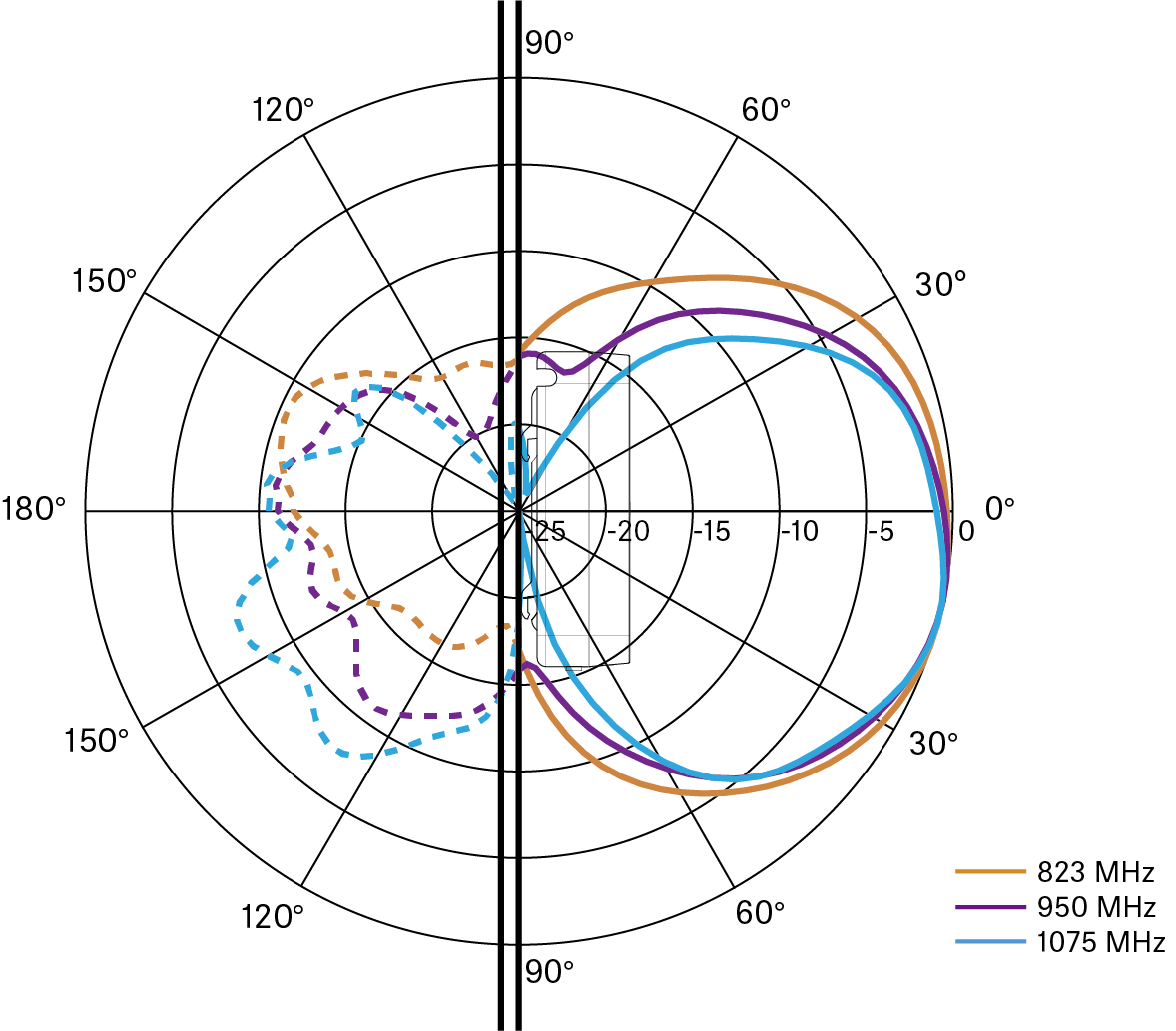

UHF (823 – 1075 MHz) vertical [dB]
UHF (823 – 1075 MHz) horizontal [dB]

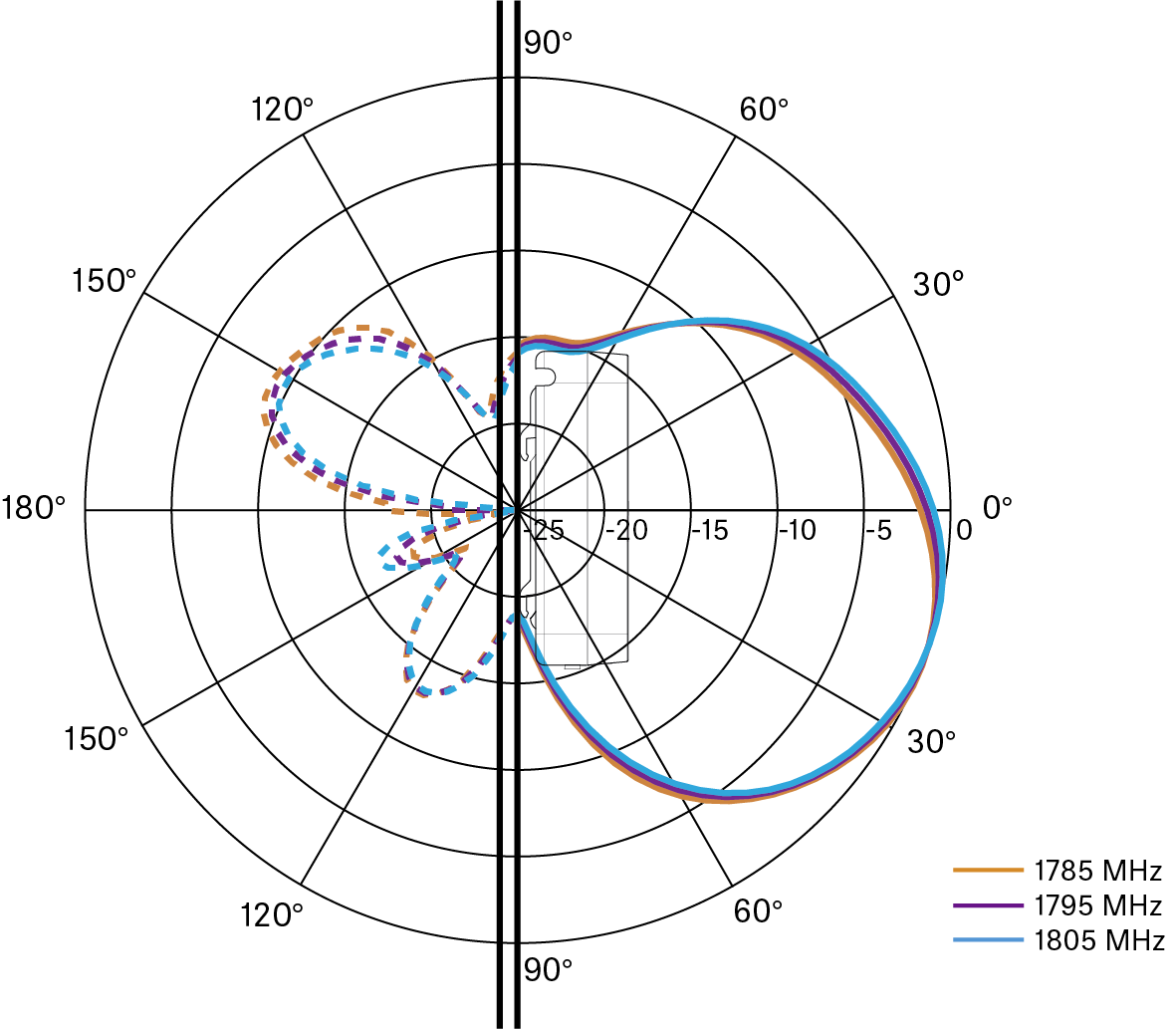

1G8 vertical [dB]

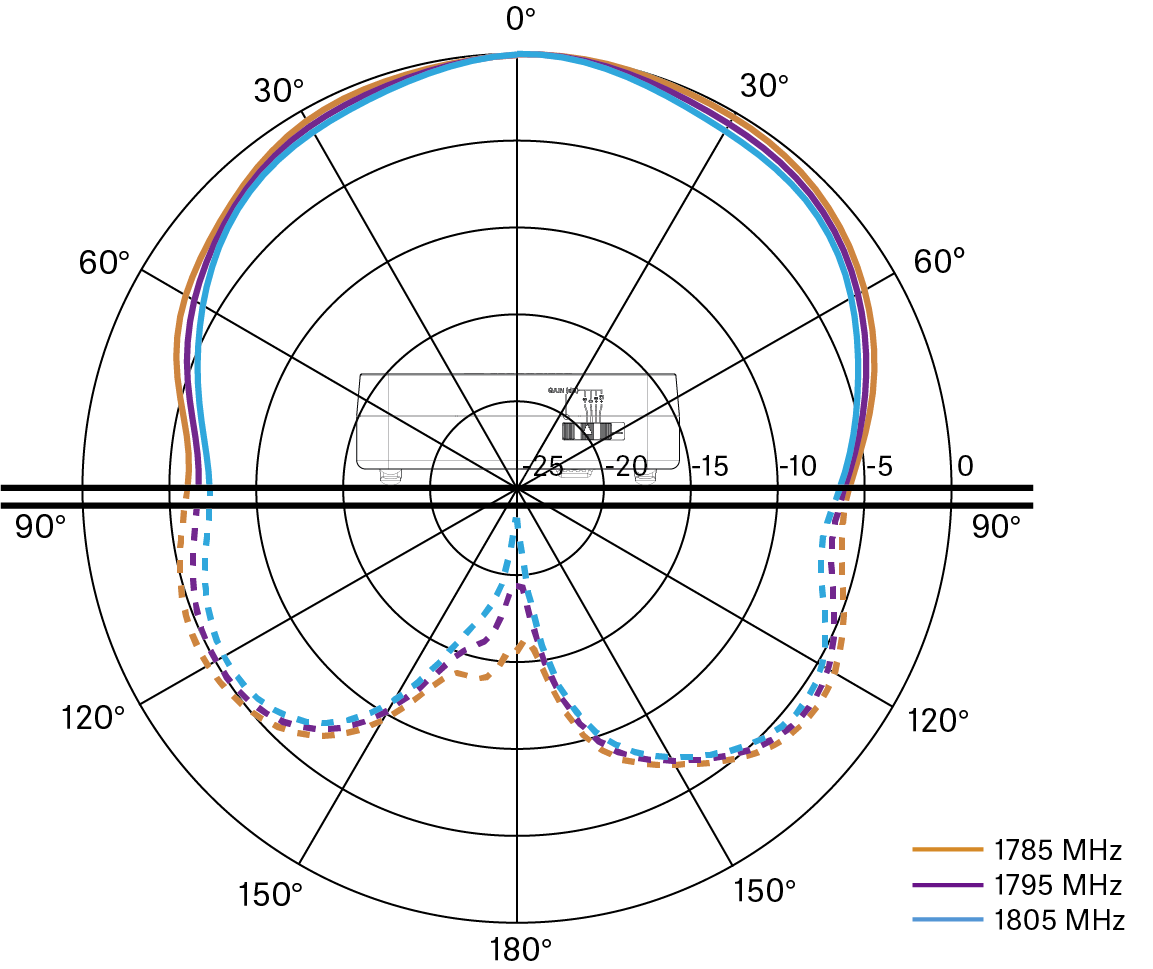

1G8 horizontal [dB]
