Meaning of the LEDs

The LINK and DATA LEDs on the top of the transmitter can indicate the following information.

LINK LED

The LINK LED provides information about the status of the radio link between the transmitter and receiver, as well as status information for the paired transmitter.

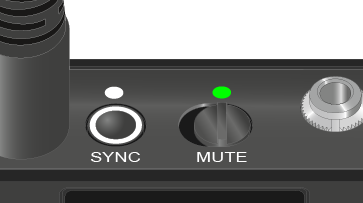

The LED is green:
  • The link between the transmitter and receiver is established.
  • The transmission frequency is active.

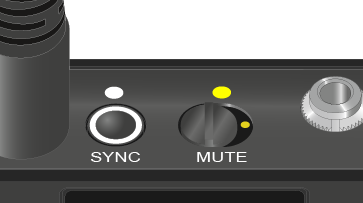

The LED is yellow:
  • The link between the transmitter and receiver is established.
  • The audio signal is muted.

Or

  • No microphone module is mounted on the SKM-S handheld transmitter.

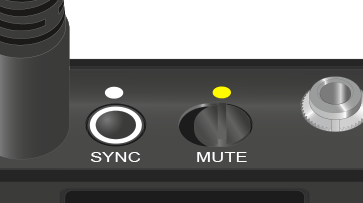

The LED is flashing yellow:
  • The link between the transmitter and receiver is established.
  • The audio signal is overdriven (clipping).
The LED is continuously red:
  • The (rechargeable) battery in the transmitter is dead.

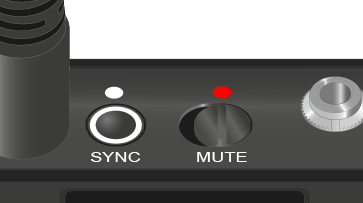

The LED is flashing red:
  • The link between the transmitter and receiver is established.
  • The battery/rechargeable battery in the transmitter is low.
The LED is off:
  • No link between the transmitter and receiver.
  • The transmitter is switched off.

DATA LED

The DATA LED provides information about the synchronization of transmitters and receivers.

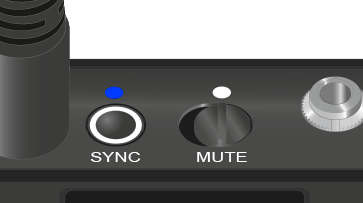

The LED is flashing blue:
  • The transmitter is being synchronized with a receiver.

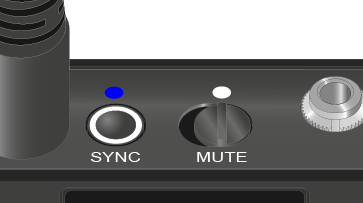

The LED is blue:
  • The firmware is being updated.
The LED is off:
  • There is currently no active data link.
