Connecting to the EW-DX EM receivers / synchronizing the EW-DX EM
Receiver: EW-DX EM 2 | EW-DX EM 2 Dante | EW-DX EM 4 Dante
To establish a radio link between the transmitter and receiver, we recommend the following procedure.
In order to establish a connection between a receiver and transmitters of the EW-D series, the devices do not necessarily have to be synchronized with each other.
To successfully connect a receiver and a transmitter, both devices must have the same frequency range.
Step 1: Set a free frequency
- We recommend using the AUTO SCAN function, as this is the most reliable way to identify free frequencies (see Ch 1 / Ch 2 -> Scan / Auto Setup menu item).
-
If you know free frequencies in your area, you can also set the frequency manually.
- EW-DX EM 2: Ch 1 / Ch 2 -> Frequency menu item
- EW-DX EM 2 Dante: Ch 1 / Ch 2 -> Frequency menu item
- EW-DX EM 4 Dante: Ch 1 - Ch 4 -> Frequency menu item
- EW-DX SKM(-S): Opening the menu and navigating the menu items
- EW-DX SK (3-PIN): Opening the menu and navigating the menu items
Once you have set the same frequency for the desired receiving channel on the receiver and for the transmitter you want to connect, the radio link is established.
To ensure that all settings are transmitted to the transmitter, we recommend synchronizing the transmitter with the receiving channel.
Step 2: Synchronizing the receiver and transmitter
-
On the EW-DX EM 2 and EW-DX EM 2 Dante receivers, press the CH 1 or CH 2 button, and on the EW-DX EM 4 Dante receiver, press the CH 1, CH 2, CH 3 or CH 4 button to select the channel for synchronization.
-

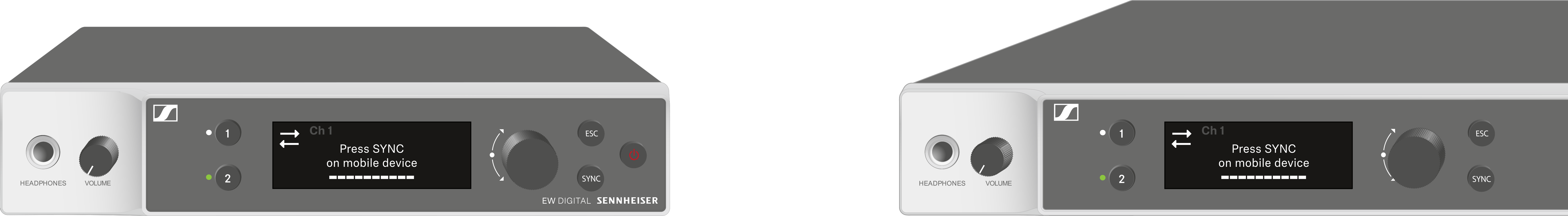

Press the SYNC button on the receiver.
The receiver’s display shows that the synchronization process has started.The blue DATA LED flashes.
-

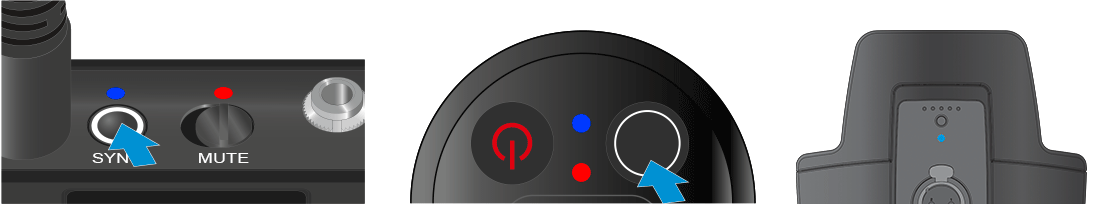

Short-press the SYNC button on the transmitter.
The blue DATA LED flashes.
