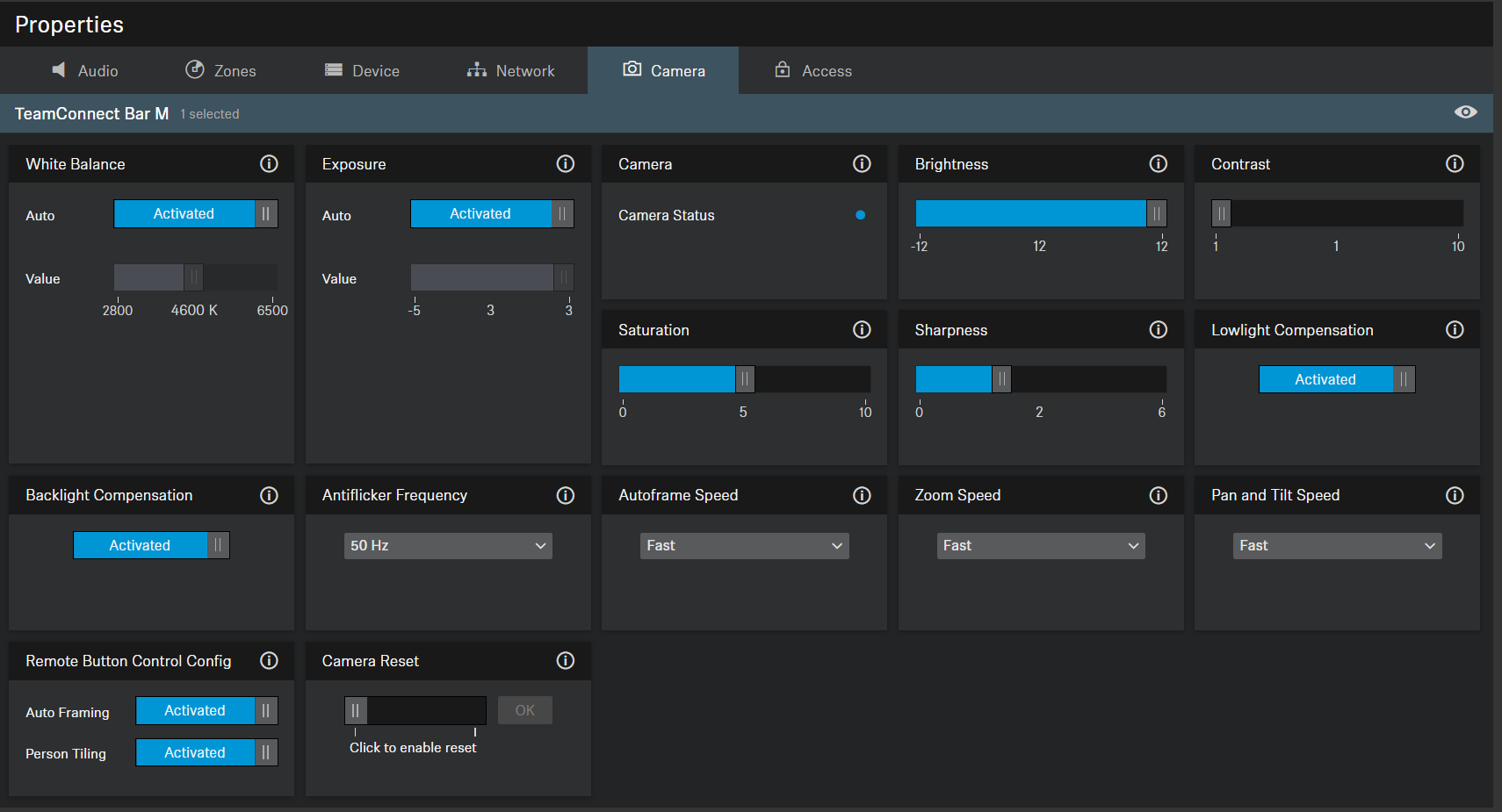

Camera Settings

White Balance

Adjusts the video image for natural color representation. The white balance can be set either automatically or manually.

Exposure

Adjusts the camera for scenes with different lighting conditions. The exposure can be set either automatically or manually.

Camera Status

Shows current status (enabled or disabled) of the camera.

Brightness

Adjusts the brightness of the video image from -12 (dark) to 12 (very bright).

Contrast

Adjusts the contrast between light and dark parts of the video image from 1 (low contrast) to 10 (high contrast).

Saturation

Adjusts the color saturation of the video image from 0 (low saturation) to 10 (high saturation).

Sharpness

Adjusts the level of detail in the video image.

Lowlight Compensation

Increases the camera sensitivity in scenes with low lighting. Either Backlight Compensation or Lowlight Compensation can be used.

Backlight Compensation

Increases the exposure of the camera in backlight conditions. Either Backlight Compensation or Lowlight Compensation can be used.

Antiflicker Frequency

Reduces image flickering caused by AC driven lighting sources.

Autoframe Speed

Controls the speed of automatic zooming.

Zoom Speed

Controls the speed of manual zooming.

Pan and Tilt Speed

Controls the pan and tilt speed of the camera.

Remote Button Control Config

Activates or deactivates functions Auto Framing and/or Person Tiling on the remote control.

Camera Reset

Resets the preset camera settings to default settings.
