Muting the SK AVX bodypack transmitter

Both the bodypack transmitter and the SKM-S AVX handheld transmitter have a Mute switch that mutes the audio signal without switching the transmitter off.

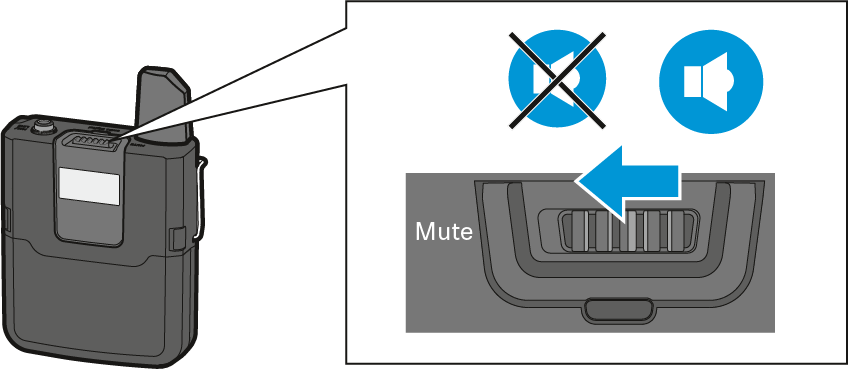

  1. Slide the Mute switch to the position Mute

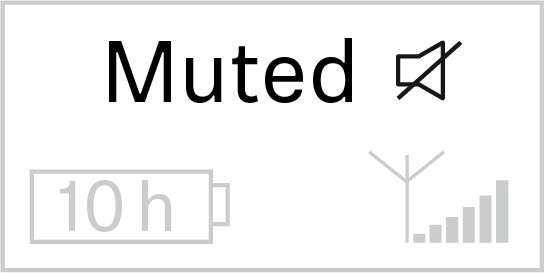

    Muted appears on the display panel of the transmitter.

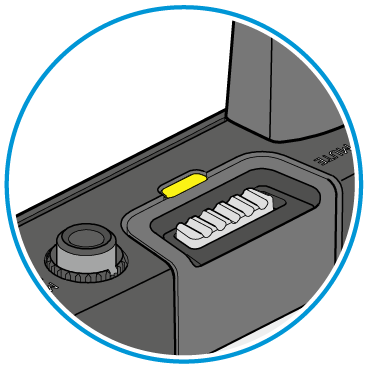

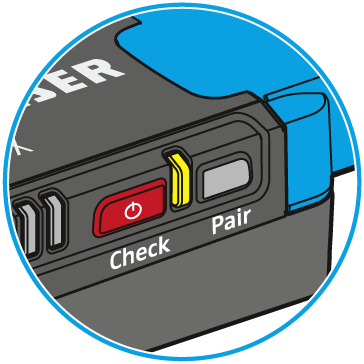

    The status LED on both the transmitter and the paired receiver lights up yellow.

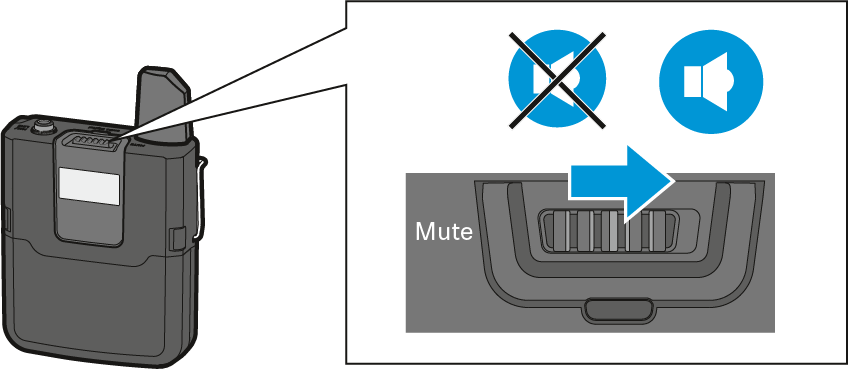

  2. Slide the Mute switch to the position Mic to unmute the audio signal.
