Mode menu item

In the Mode menu item you can switch between Stereo and Focus.

Stereo

mode

The left-right signals are available as usual. The Balance setting serves to adjust the balance between the left and right stereo signal (see Balance menu item).

To use it, activate Stereo mode on the corresponding SR 2000 IEM / SR 2050 IEM transmitter den Modus Stereo (see Mode menu item).

Focus

mode

The corresponding SR 2000 IEM / SR 2050 IEM transmitter operates in Stereo mode. The left-right signals are mixed and are available as a mono signal in both headphone channels. The balance setting serves to adjust the relative levels of the two separate channels in the mixed mono signal. See Balance menu item.
The corresponding SR 2000 IEM / SR 2050 IEM transmitter operates in Mono mode. Only the left audio input of the SR 2000 IEM / SR 2050 IEM is received as a mono signal.

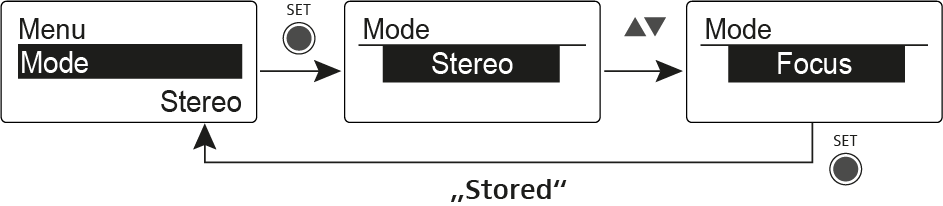

To open the Mode menu item:

On the home screen, press the SET button to open the operating menu.
Press the UP or DOWN button until the Mode menu item appears in the selection frame.
Press the SET button to open the menu item.
Adjust the settings as desired.
Press the SET button to save the changes you made to the settings. OR
Press the ESC button to cancel the entry without saving the settings.
