Connecting/disconnecting the AC 3200-II to/from the power supply system

To supply power to the AC 3200-II, the connected transmitters and any antenna amplifiers used, you will need the NT 12-125D power supply unit.

Only use the supplied NT 12-125D power supply unit. It is designed for your antenna combiner and ensures safe operation.

To connect the AC 3200-II antenna combiner to the power supply system:

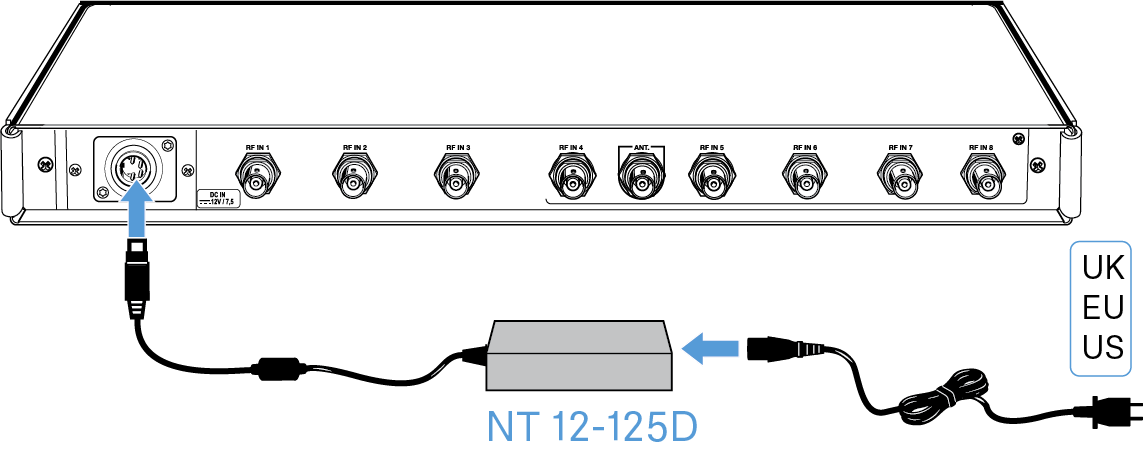

  1. Connect the mains cable (EU, UK or US version, depending on your location) to the input socket on the NT 12-125D mains unit.
  2. Connect the DC connector of the mains unit to the DC input socket 6 of the AC 3200-II.
  3. Connect the mains connector of the mains cable to the mains power supply.

To completely disconnect the AC 41 antenna combiner from the power supply system:
  1. Disconnect the mains cable (EU, UK or US version, depending on your location) from the input socket on the NT 12-125D mains unit.
  2. Disconnect the DC connector of the mains unit to the DC input socket 6 of the AC 3200-II.
  3. Disconnect the mains connector of the mains cable from the mains power supply.
