Caractéristiques techniques

Aperçu de toutes les caractéristiques techniques.

AMBEO VR Mic

Principe transducteur
  • Micro statique à polarisation permanente
Directivité
  • 4x cardioïde, en format A de l'ambisonie
    • 1: Front Left Up (FLU)
    • 2: Front Right Down (FRD)
    • 3: Back Left Down (BLD)
    • 4: Back Right Up (BRU)
Réponse en fréquence
  • 20 Hz à 20 KHz
Référence de matriçage
  • Centre de la fixation de capsules
Restitution en format B
  • W = FLU + FRD + BLD + BRU
  • X = FLU + FRD – BLD – BRU
  • Y = FLU – FRD + BLD – BRU
  • Z = FLU – FRD – BLD + BRU
Sensibilité
  • 31 mV/Pa (–30 dBV) à 1 kHz
Impédance de charge minimale
  • 1000 Ω
Impédance nominale
  • env. 200 Ω
Niveau de bruit équivalent
  • Pondération A : 18 dB(A)
  • Pondération CCIR : 27 dB
Max. SPL à DHT = 1 %
  • 130 dB(A) à 1 kHz
Alimentation
  • 4x alimentation fantôme (P48) selon IEC 61938 (48 V ± 4 V), 3,5 mA respectivement
Connexion
  • DIN12M
  • avec le câble adaptateur (fourni) vers 4x XLR-3M, Brochage : 1 = (GND), 2 = (+), 3 = (–)
Dimensions
  • Longueur : 215 mm
  • Diamètre : 49 mm/25 mm
Température
  • Fonctionnement : de -10 °C à 55 °C
  • Stockage : de -20 °C à 70 °C
Humidité relative de l‘air
  • max. 90 % à 40 °C

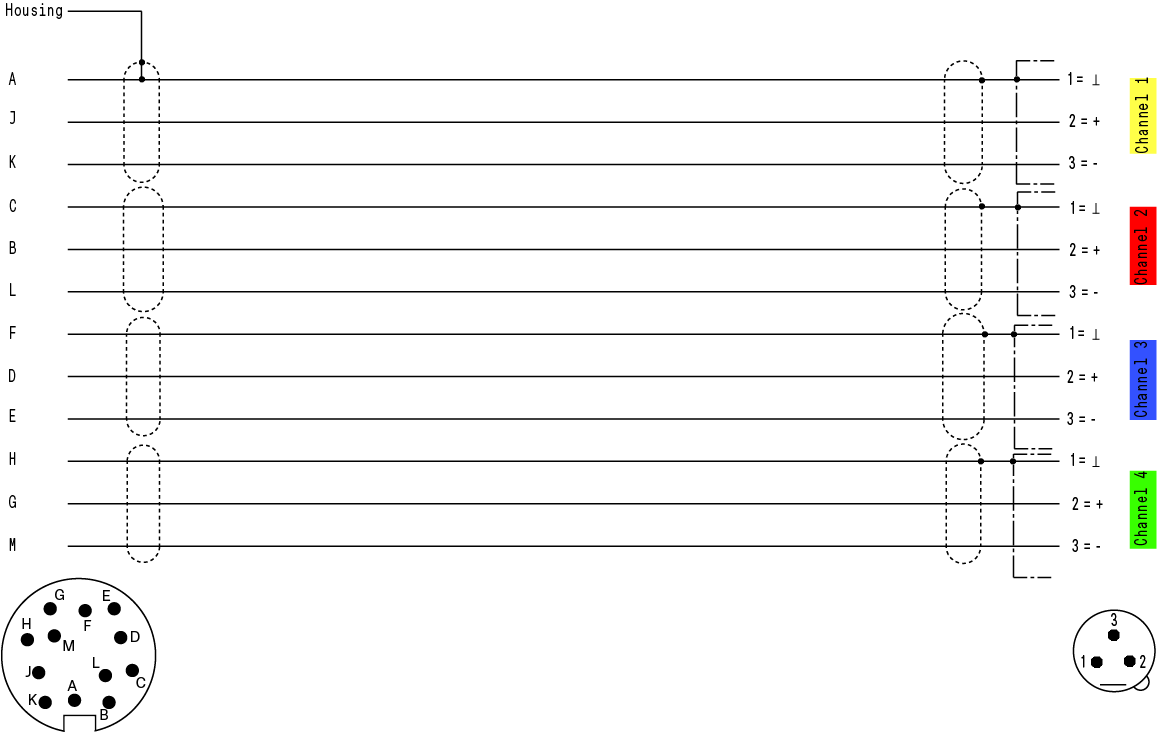

Brochage du câble adaptateur

DIN12F -> XLR-3M

A + blindage + boîtier -> canal 1 (jaune) - broche 1 + boîtier XLR

B -> canal 2 (rouge) - broche 2

C -> canal 2 (rouge) - broche 1 + boîtier XLR

D -> canal 3 (bleu) - broche 2

E -> canal 3 (bleu) - broche 3

F -> canal 3 (bleu) - broche 1 + boîtier XLR

G -> canal 4 (vert) - broche 2

H -> canal 4 (vert) - broche 1 + boîtier XLR

J -> canal 1 (jaune) - broche 2

K -> canal 1 (jaune) - broche 3

L -> canal 2 (rouge) - broche 3

M -> canal 4 (vert) - broche 3
