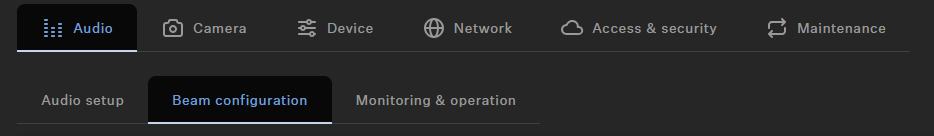

Beam configuration

In the beam configuration section, you can manage the following settings.



The TCC M Plus allows you to define two different zone types:
  • One Priority Zone
  • Up to five Exclusion Zones

The horizontal angles can be set individually for each zone.

Priority Zone

Note:
If the two zone types overlap, the rules of the Exclusion Zone apply.

The Priority Zone allows you to set up a zone that is given preference when audio signals arrive simultaneously from different positions. This function is useful, for example, in conferences with a particularly important person.

You can set a weighting for this zone. The weighting increases the focus on the signals coming from the zone by the selected values. The following settings are available:
  • Mid: Increases the weighting of the audio output from the zone to approximately 1.5 times the normal value.
  • High: Increases the weighting of the audio output from the zone to approximately 2.5 times the normal value.
  • Max: Increases the weighting of the audio output from the zone to approximately 4 times the normal value.
Note:
When defining the Priority Zone, the area that is to be prioritized for audio source detection is displayed in green.

You can use the slider to define a Priority Zone. The zone can be set individually from 15° to 165°. Minimum angle size: 15°.

Exclusion Zones

Note:
If the two zone types overlap, the rules of the Exclusion Zone apply.

The TCC M Plus allows you to define up to five Exclusion Zones. When these zones are enabled, all audio signals coming from these areas are ignored.

Note:
When defining the Exclusion Zones, the area that is to be excluded for audio source detection is displayed in red.

You can use the sliders to define the Exclusion Zones. The horizontal zone can be set individually from 15° to 165°.

Creating the zones

The zones can be drawn in the overview using the cursor. You can zoom in or out and rotate the view by right-clicking.
