System planning
This section of the documentation contains information to help you with system planning.
- Planning
  At the start of planning, the following aspects are to be considered.
- Recommendations on antenna mounting
- Multi-room mode

Shared use of the 1.9 GHz frequency band

When SpeechLine Digital Wireless is used in combination with other devices using the 1.9 GHz frequency band (e.g. Sennheiser TeamConnect Wireless or DECT telephones), the maximum number of SpeechLine Digital Wireless links depends on the number of other devices used.

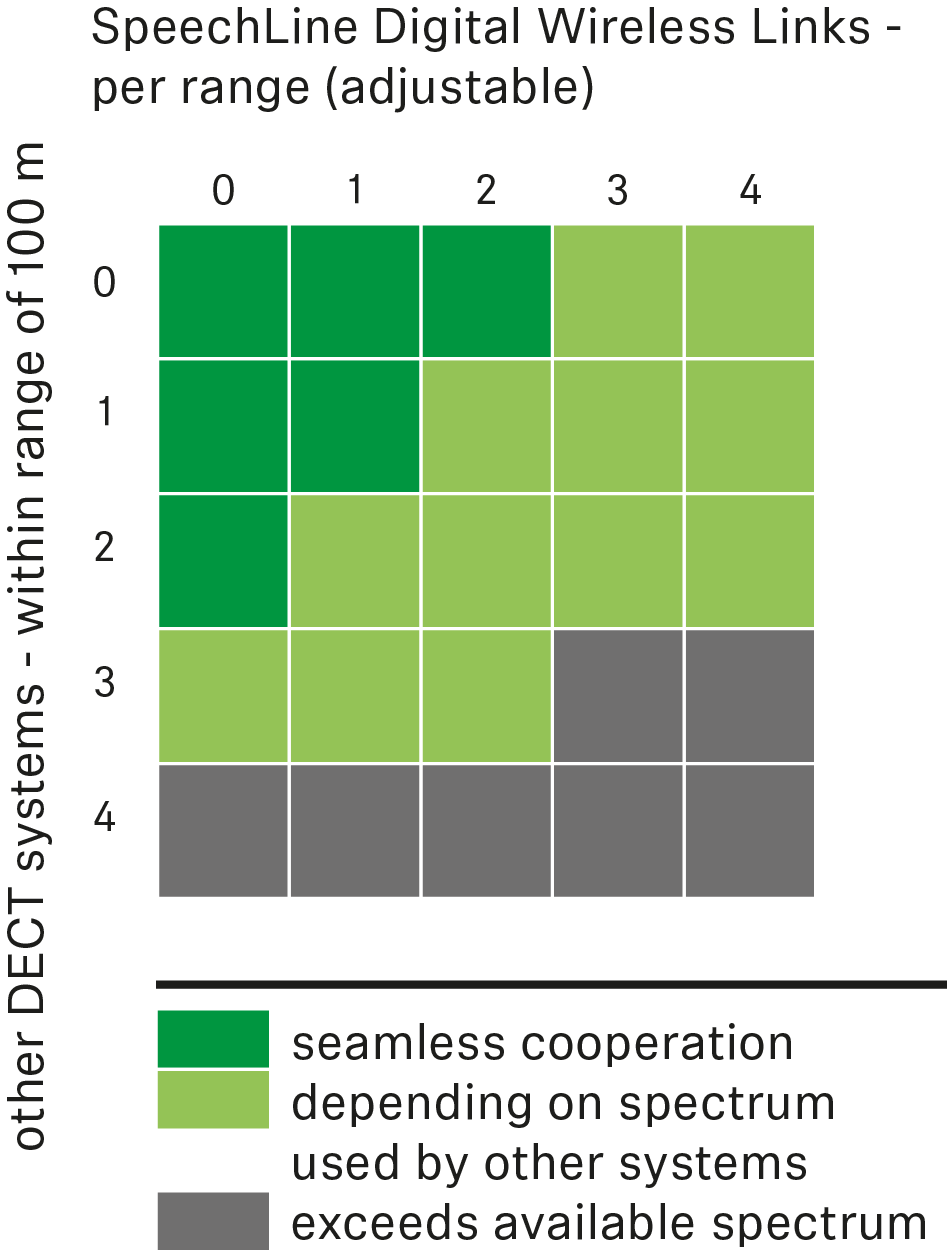

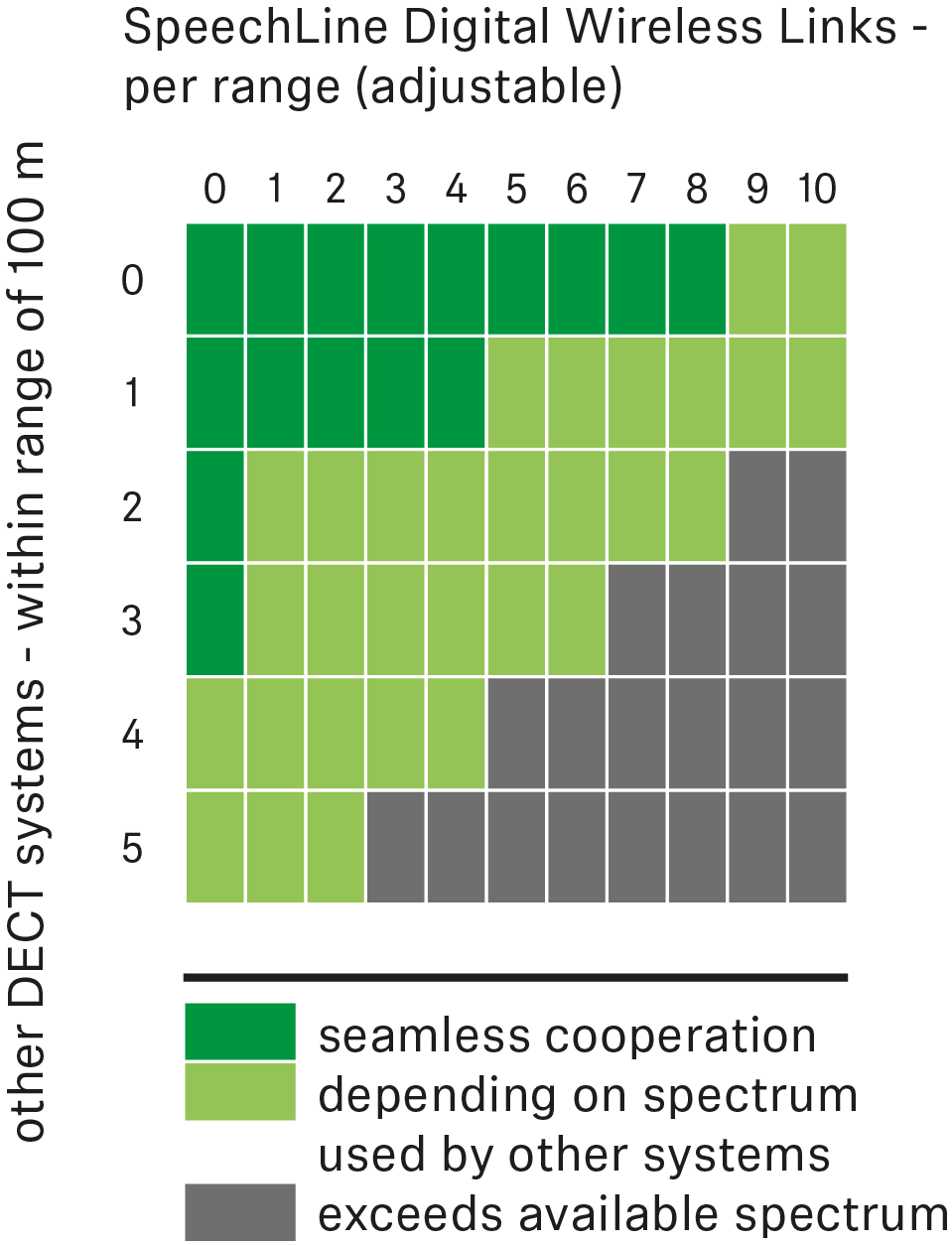

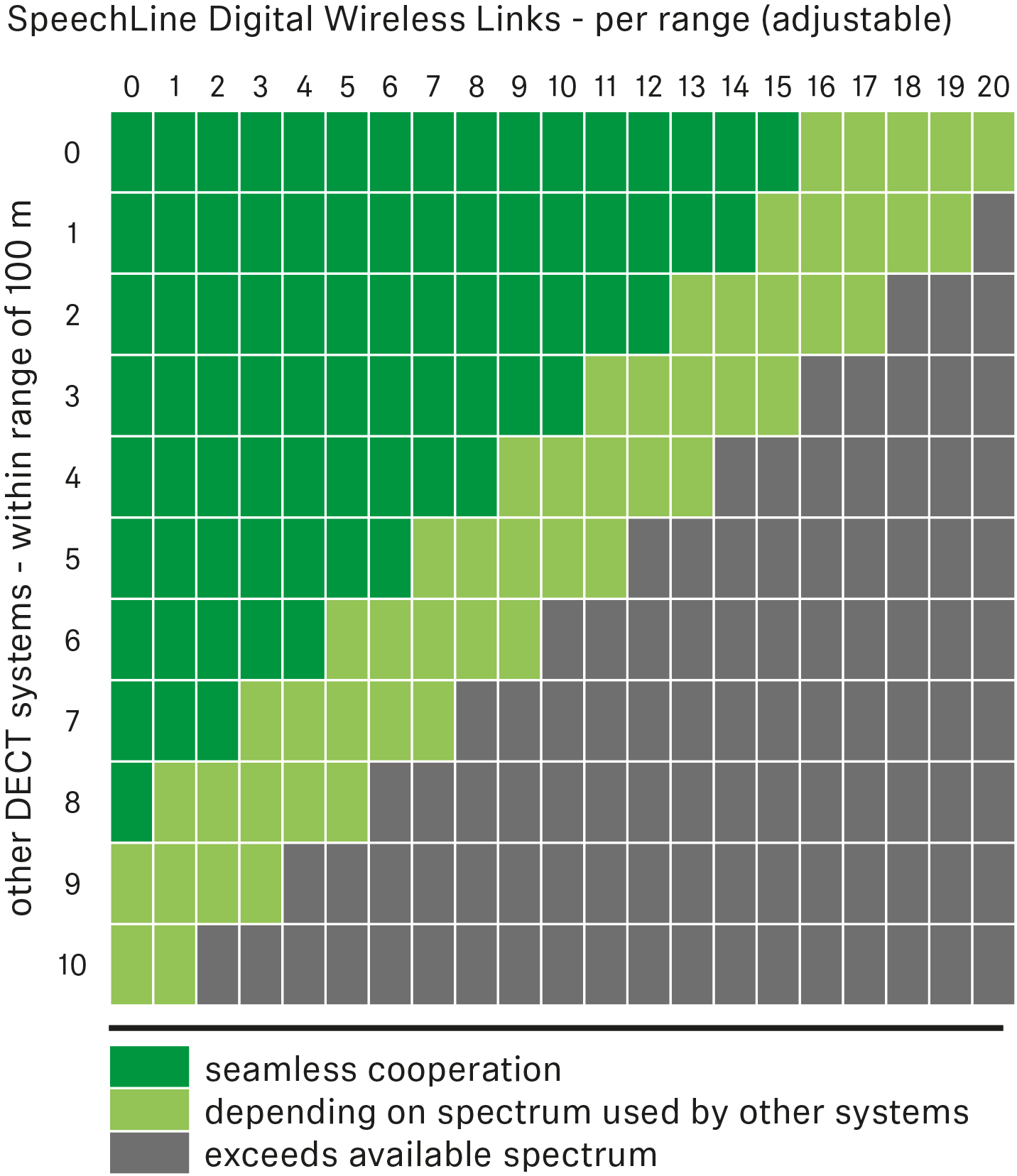

The following charts indicate the possible combinations of systems depending on country-specific conditions (see also Country-Specific Variants).

Shared use of the 1.9 GHz frequency band

Europe, UK, Hong Kong, Singapore, Malaysia, Australia

USA, Canada, Latin America, Brazil, Taiwan

Japan
