MKH 416

Specifications

Frequency response

• 40 - 20,000 Hz

Transducer principle

• RF condenser microphone

Pick-up pattern

• super-cardioid/lobar

Sensitivity (free field, no load) (1 kHz)

• 25 mV/PA ± 1 dB

Nominal impedance

• 25 Ω

Min. terminating impedance

• approx. 800 Ω

Equivalent noise level

• CCIR-weighted: approx. 24 dB
• A-weighted: approx. 13 dB

Max. sound pressure level

• 130 dB SPL

Power supply

• 48 V ± 4 V phantom powering

Current consumption

• approx. 2 mA

Temperature range

• -10 °C to + 70 °C

Finish

• matt black

Connector

• 3-pol. XLR connector

Pin assignment

• 1: Ground, housing; supply (-)
• 2: NF (+); supply (+)
• 3: NF (-); supply (-)

Dimensions

• Ø 19 x 250 mm

Weight

• 175 g

Frequency response

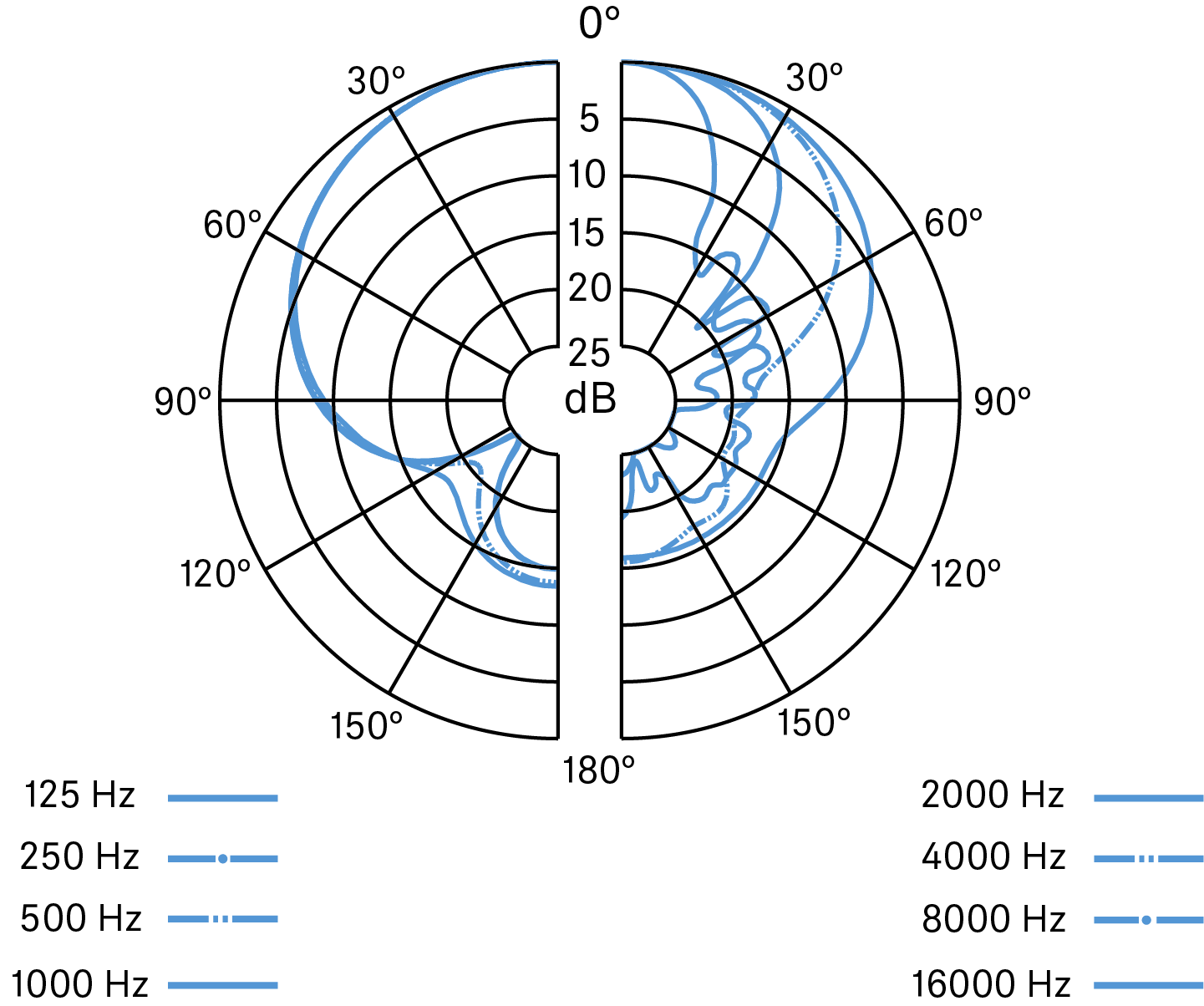

Polar pattern
