Specifications
All specifications at a glance.
Technical specifications
Pick-up pattern
- super-cardioid/lobar
Frequency response
- 40 – 20.000 Hz
Sensitivity
- with P48 powering: 21 mV/Pa
- with battery powering: 19 mV/Pa
Max. SPL
- with P48 powering: 132 dB SPL
- with battery powering: 126 dB SPL
Equivalent noise level
A-weighted
- with P48 powering: 15 dB (A)
- with battery powering: 16 dB (A)
Power supply
- 48 V ± 4 V (P48, IEC 61938) via XLR-3 or
- battery/rechargeable battery (AA size 1.5 V/1.2 V)
Current consumption
- with P48 powering: 4.4 mA
Operating time with battery
- approx. 150 h
“Low Batt” indicator
- < 1.05 V; approx. 8 h of remaining operating time after initial display
Operating temperature
- -10 °C to +60 °C
Diameter
- ⌀ 20 mm x 256 mm
Weight
- 128 g (without battery)

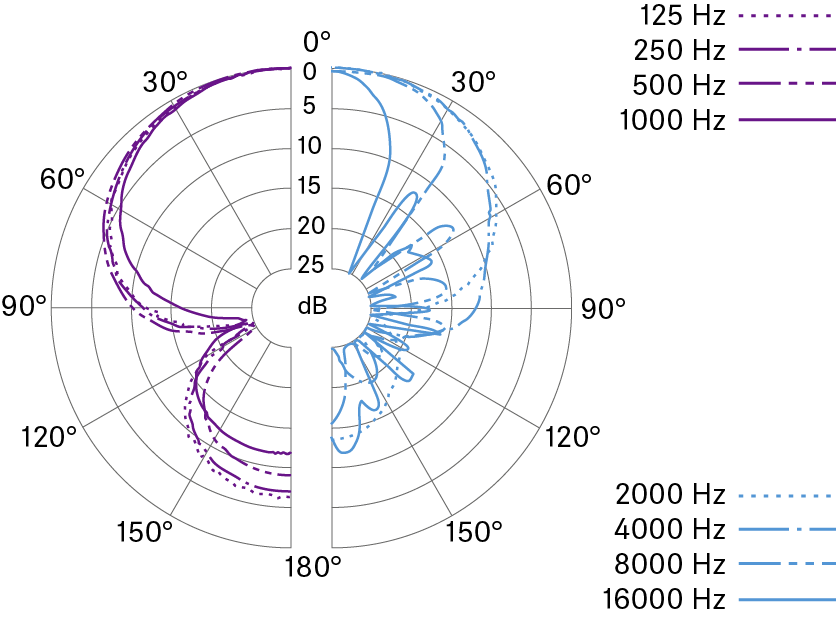

Polar diagram

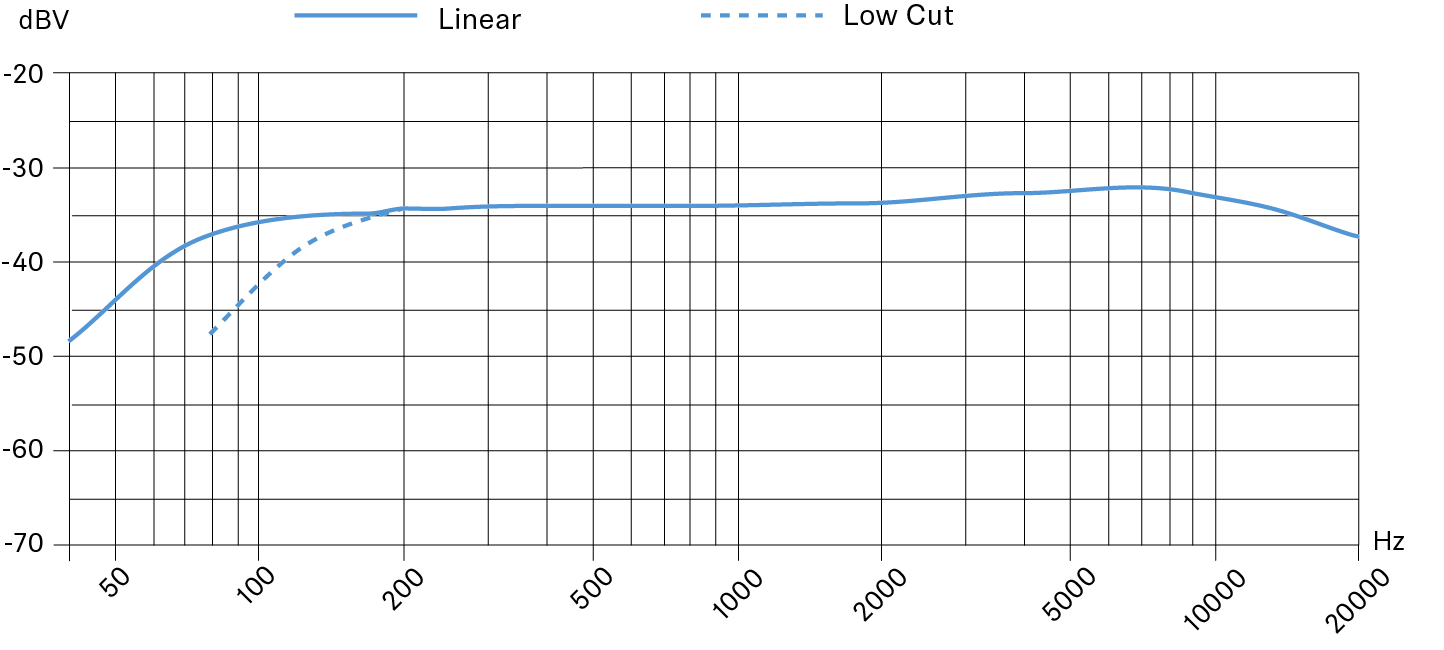

Frequency response curve
