Specifications
All specifications at a glance.
ME 9002
Transducer principle
- pressure transducer, pre-polarized condenser microphone
Frequency response
- 20 to 20,000 Hz
Pick-up pattern
- omni-directional
Sensitivity (at 1 kHz)
- 3.35 / 33.5* mV/Pa
- -49.5 / -29.5* dBV/Pa
Max. SPL
- 139 / 131* dB
Equivalent noise level
- A-weighted: 32 / 18* dB(A)
- CCIR-weighted: 45 / 31* dB
*with switched-off attenuation

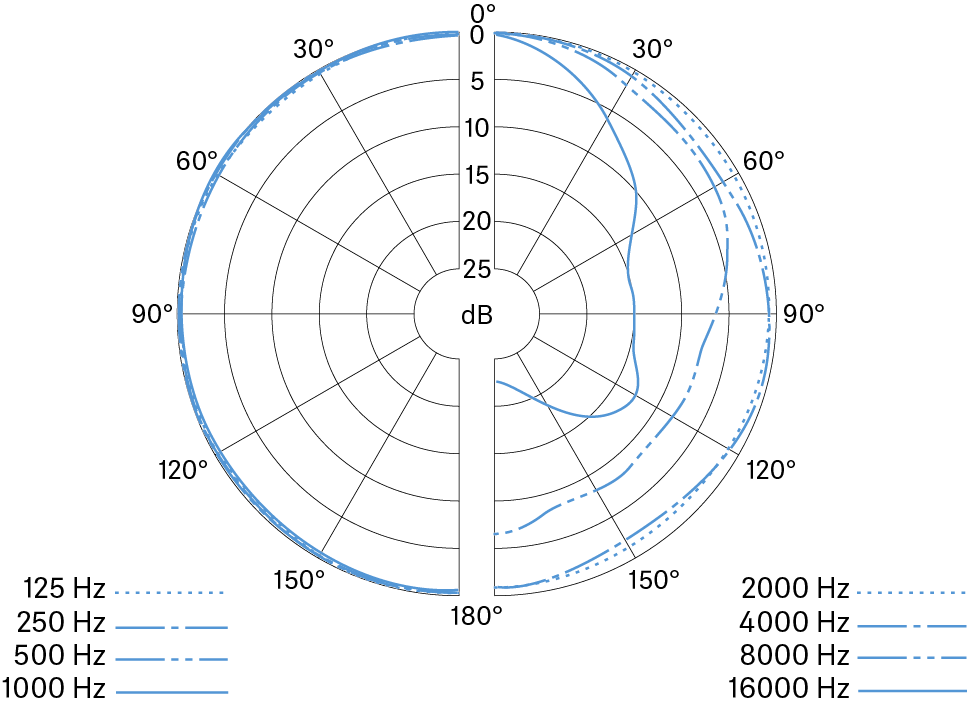

Polar pattern

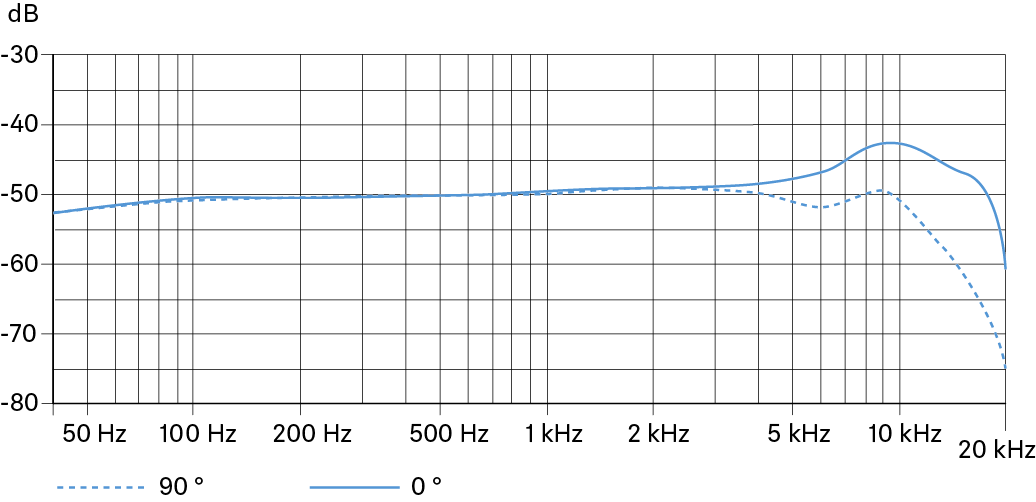

Frequency response
ME 9004
Transducer principle
- pressure gradient transducer, pre-polarized condenser microphone
Frequency response
- 40 to 20,000 Hz
Pick-up pattern
- Cardioid
Sensitivity (at 1 kHz)
- 1.88 / 18.8* mV/Pa
- -54.5 / -34.5* dBV/Pa
Max. SPL
- 145/ 136* dB
Equivalent noise level
- A-weighted: 31 / 19* dB(A)
- CCIR-weighted: 44 / 29* dB
*with switched-off attenuation

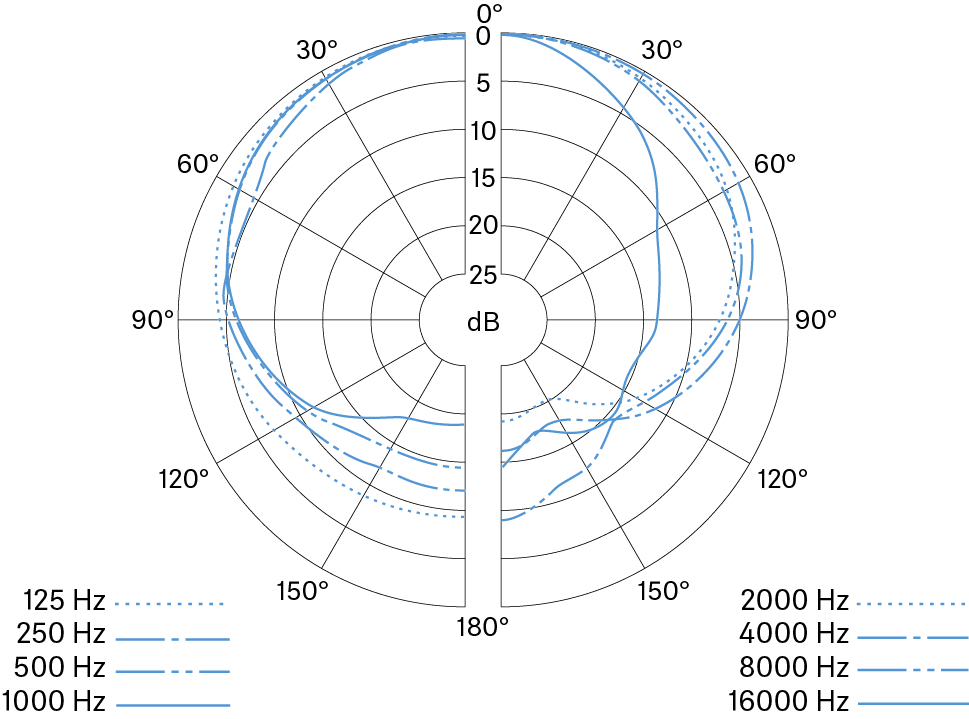

Polar pattern

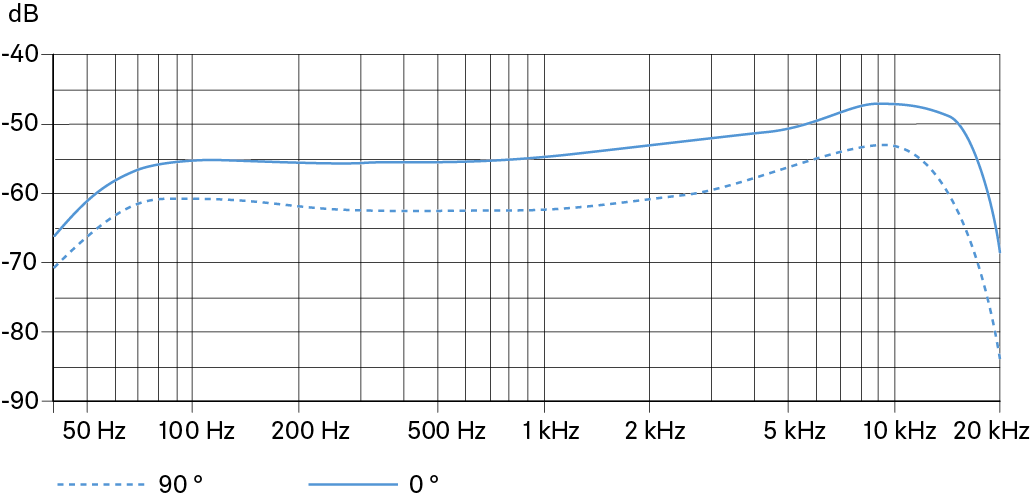

Frequency response
ME 9005
Transducer principle
- pressure gradient transducer, pre-polarized condenser microphone
Frequency response
- 40 to 20,000 Hz
Pick-up pattern
- Super-cardioid
Sensitivity (at 1 kHz)
- 2.0 / 20* mV/Pa
- -54 / -34* dBV/Pa
Max. SPL
- 145/ 135* dB
Equivalent noise level
- A-weighted: 31 / 18* dB(A)
- CCIR-weighted: 43 / 27* dB
*with switched-off attenuation

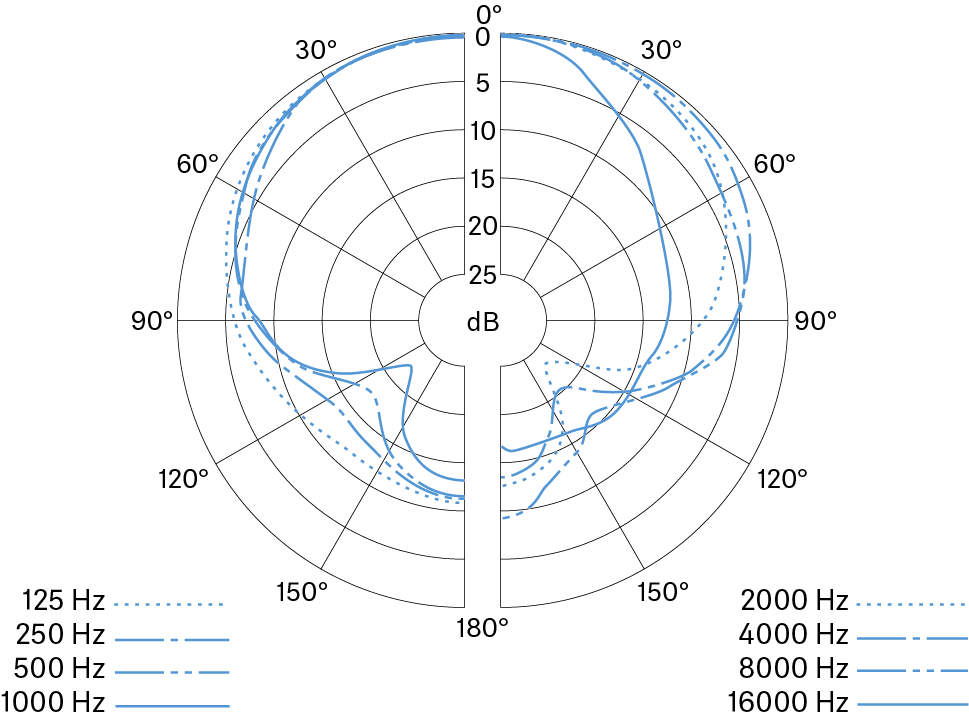

Polar pattern

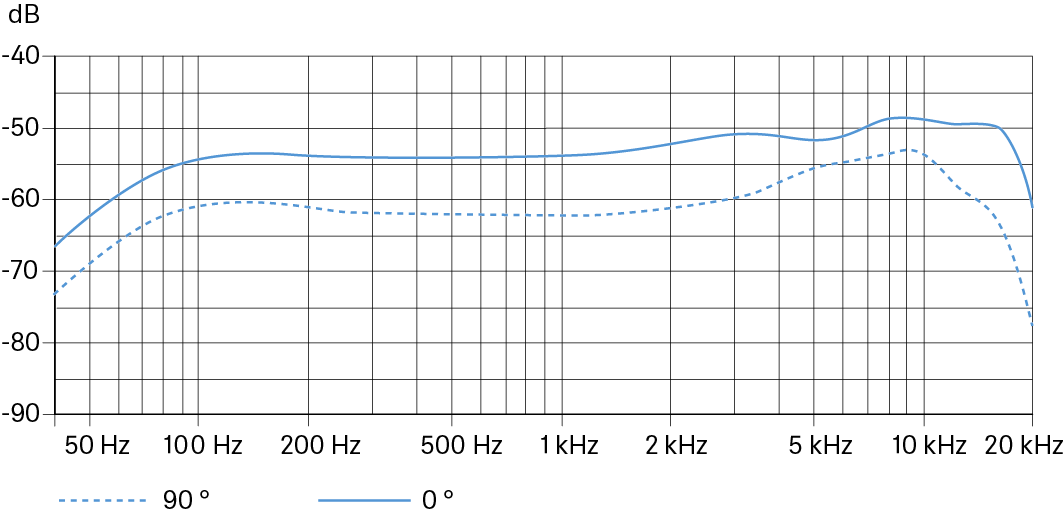

Frequency response
MM 435
Transducer principle
- dynamic
Frequency response
- 40 to 20,000 Hz
Pick-up pattern
- Cardioid
Sensitivity (free field, at 1 kHz)
- 1.8 mV/Pa -54.9 dBV/Pa
Max. SPL (at 1 kHz)
- 163 dB
Equivalent noise level
- A-weighted: 17 dB(A)
Dynamic range
- 146 dB(A)
Nominal impedance (at 1 kHz)
- 245 Ω
Min. terminating impedance
- 1 kΩ
Dimensions
- Ø 51 x 72.5 mm
Weight
- 119 g

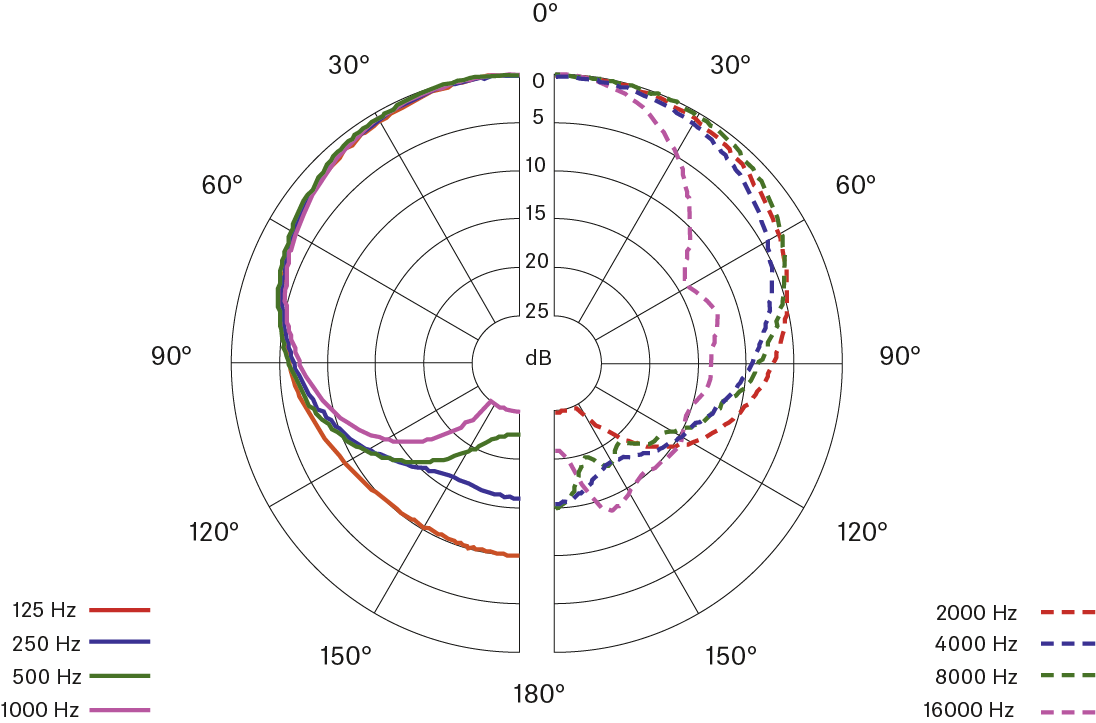

Polar pattern

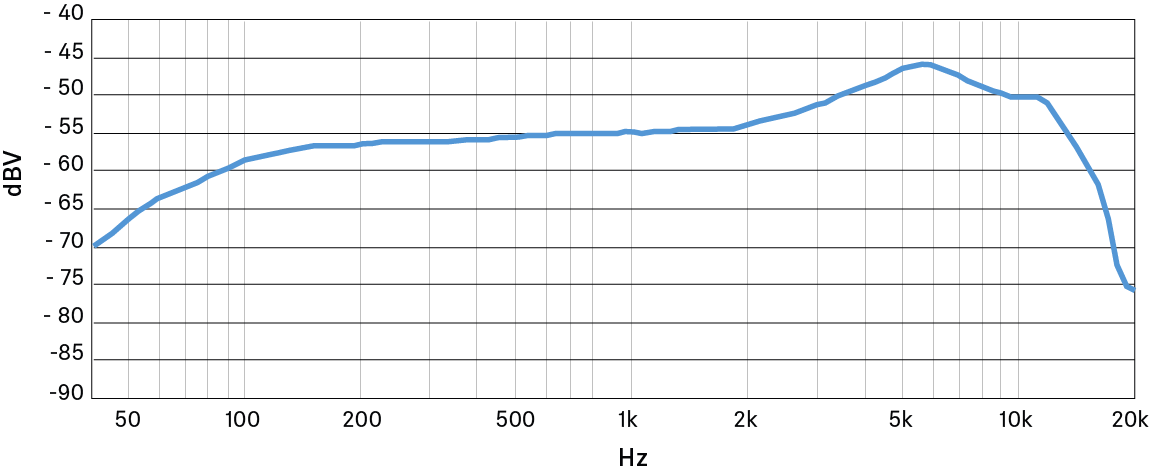

Frequency response
MM 445
Transducer principle
- dynamic
Frequency response
- 40 to 20,000 Hz
Pick-up pattern
- High-Rejection-Super-cardioid
Sensitivity (free field, at 1 kHz)
- 1.6 mV/Pa
Max. SPL (at 1 kHz)
- 163 dB
Equivalent noise level
- A-weighted: 18 dB(A)
Dynamic range
- 145 dB(A)
Nominal impedance (at 1 kHz)
- 245 Ω
Min. terminating impedance
- 1 kΩ
Dimensions
- Ø 51 x 67.5 mm
Weight
- 114 g

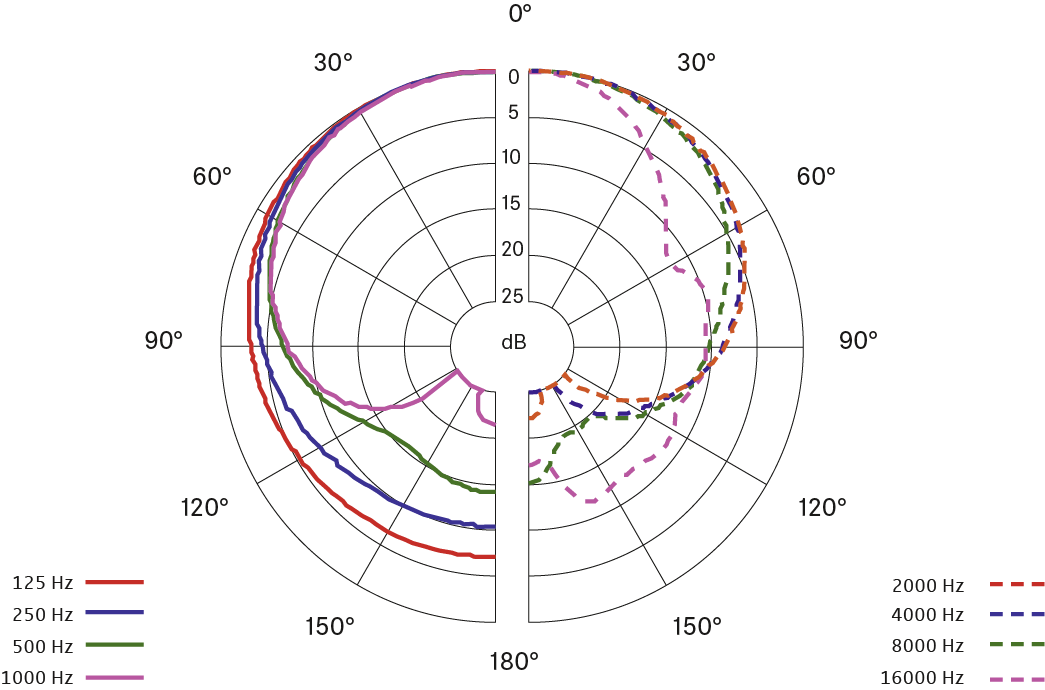

Polar pattern

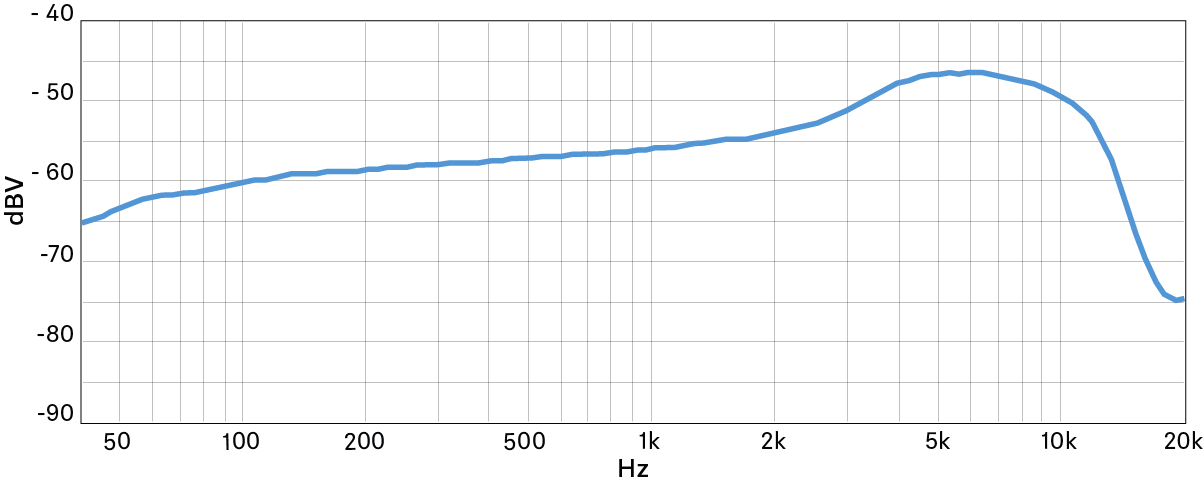

Frequency response
MMD 42-1
Transducer principle
- dynamic
Pick-up pattern
- omni-directional
Sensitivity
- 1.8 mV/Pa +/-2.5 dB
Max. SPL at 1 kHz
- 154 dB
Weight
- 112 g

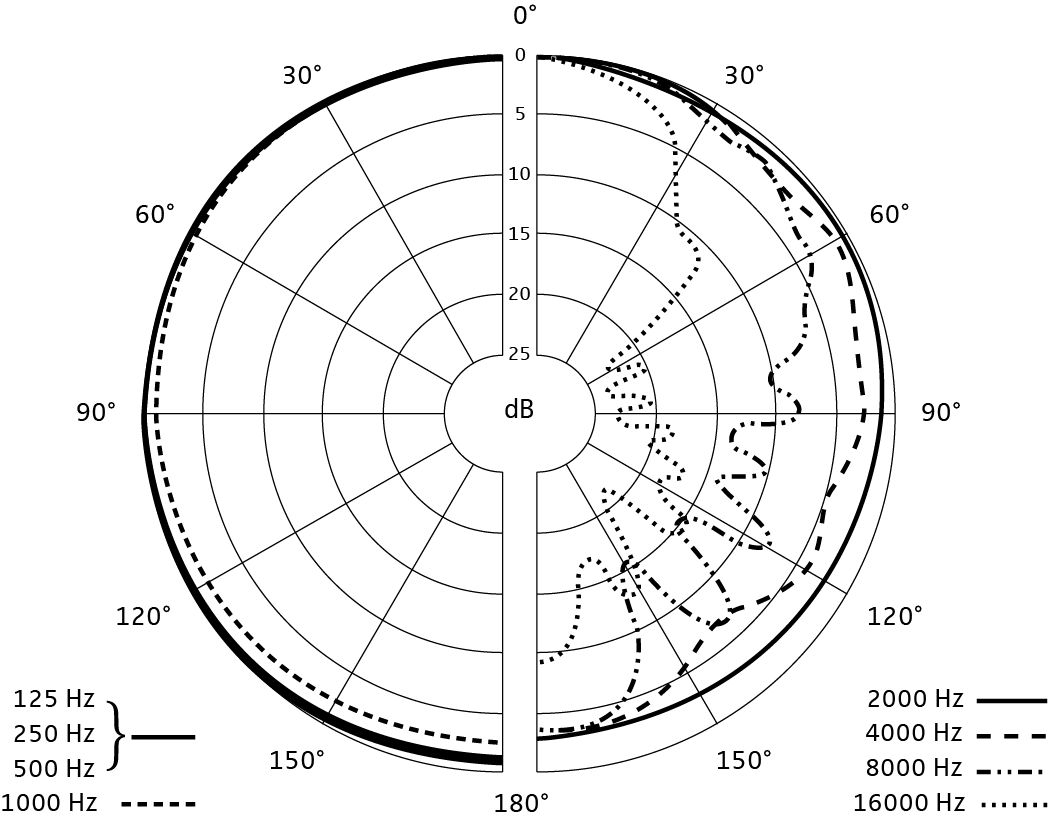

Polar pattern

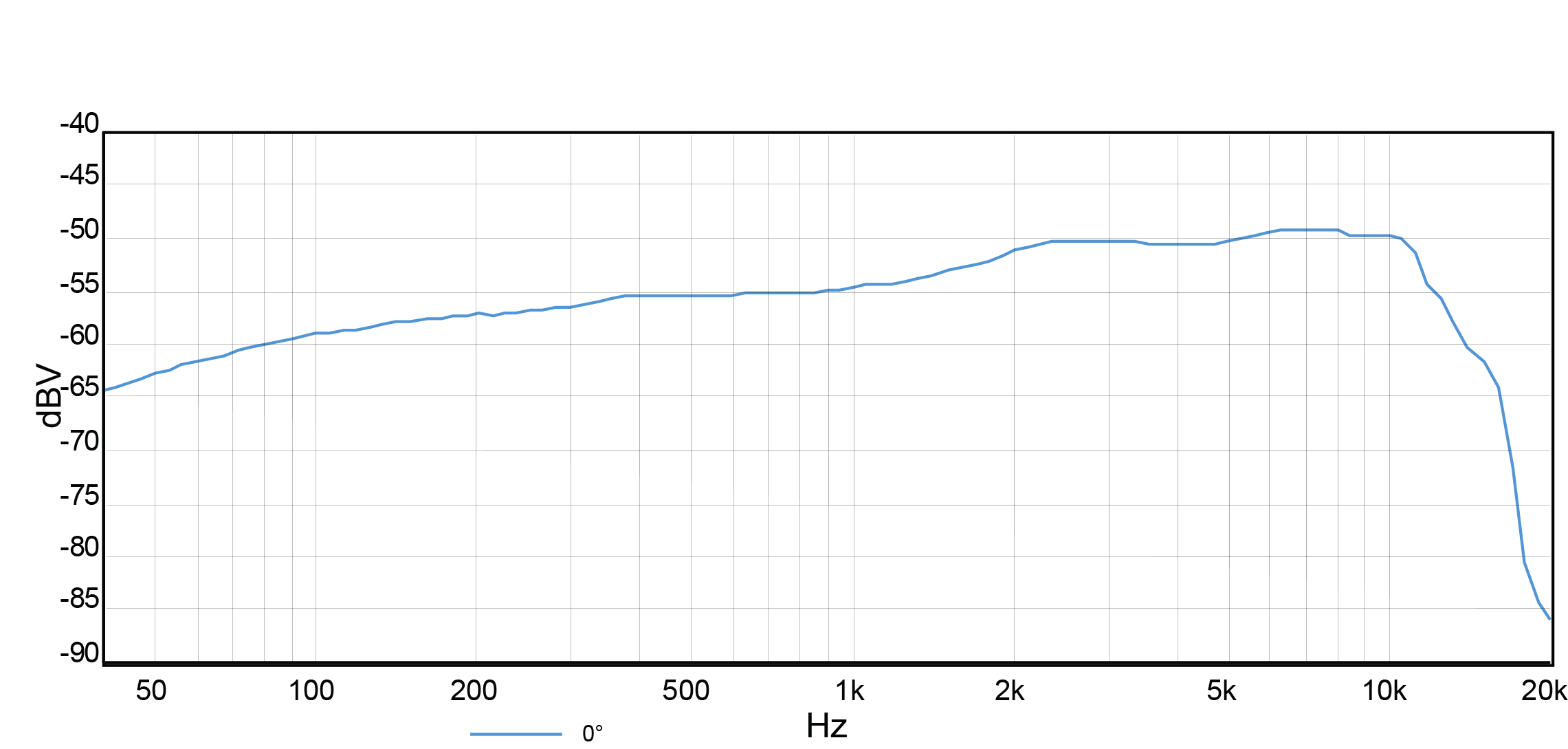

Frequency response
MMD 835
Transducer principle
- dynamic
Frequency response
- 40 to 16,000 Hz
Pick-up pattern
- Cardioid
Sensitivity
- 2.1 mV/Pa
Max. SPL (at 1 kHz)
- 154 dB
Dynamic range
- 139 dB(A)
Weight
- 112 g

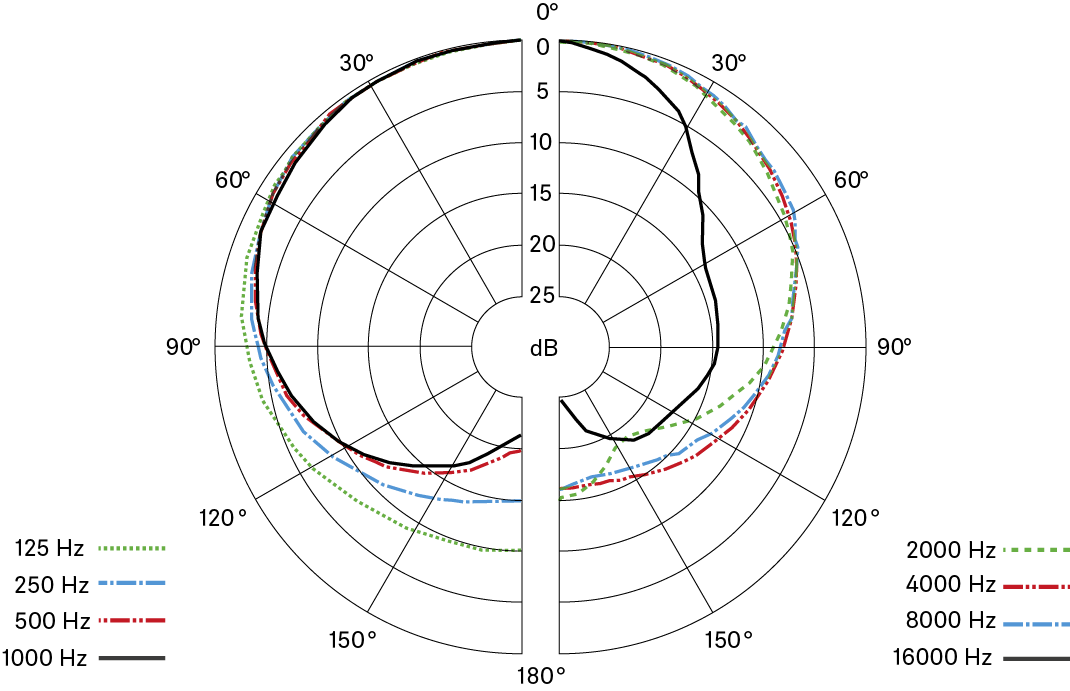

Polar pattern

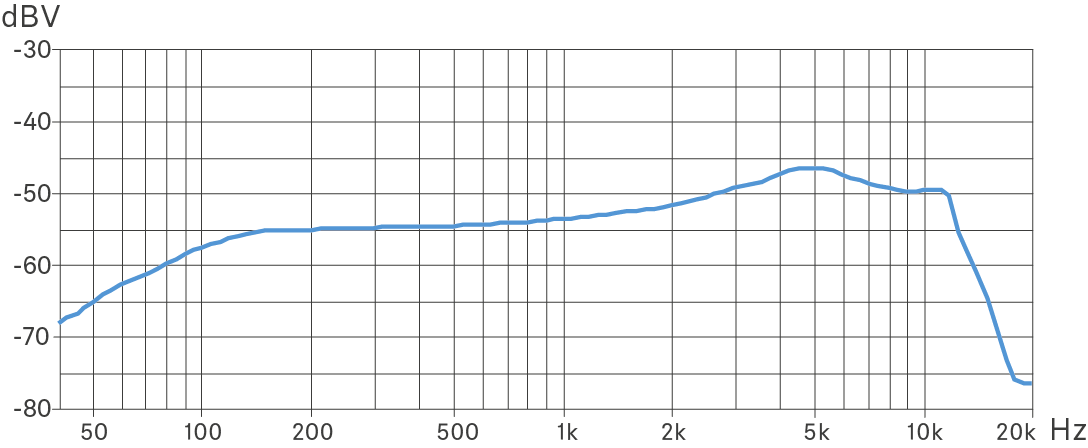

Frequency response
MMD 845
Transducer principle
- dynamic
Frequency response
- 40 to 16,000 Hz
Pick-up pattern
- Super-cardioid
Sensitivity
- 1.6 mV/Pa
Max. SPL (at 1 kHz)
- 154 dB
Dynamic range
- 136 dB(A)
Weight
- 119 g

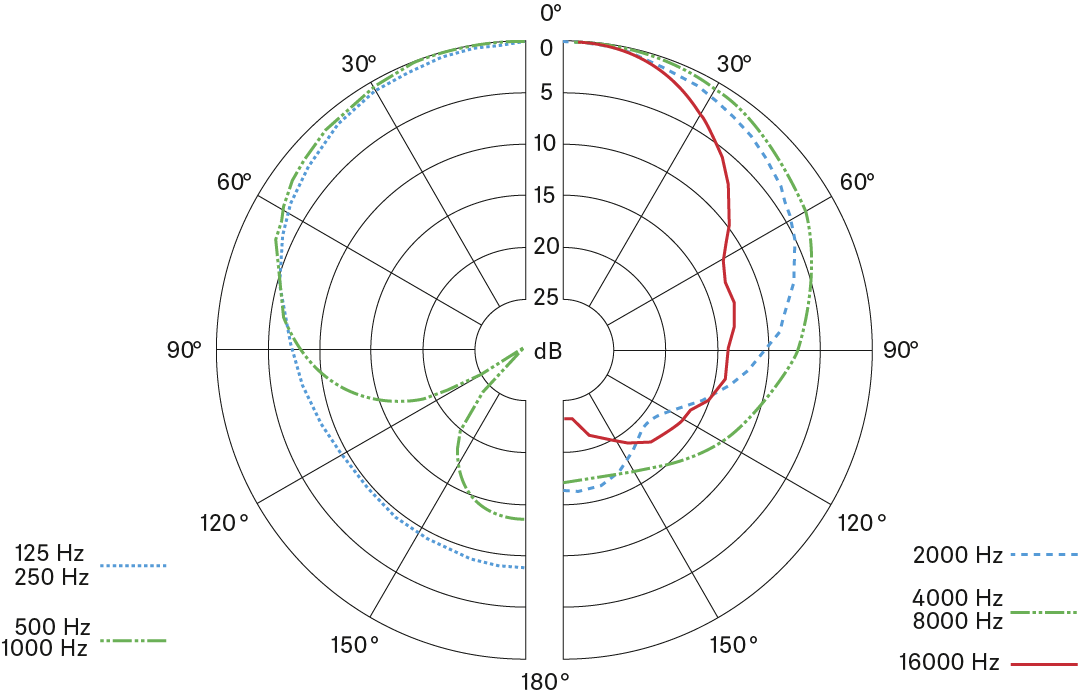

Polar pattern

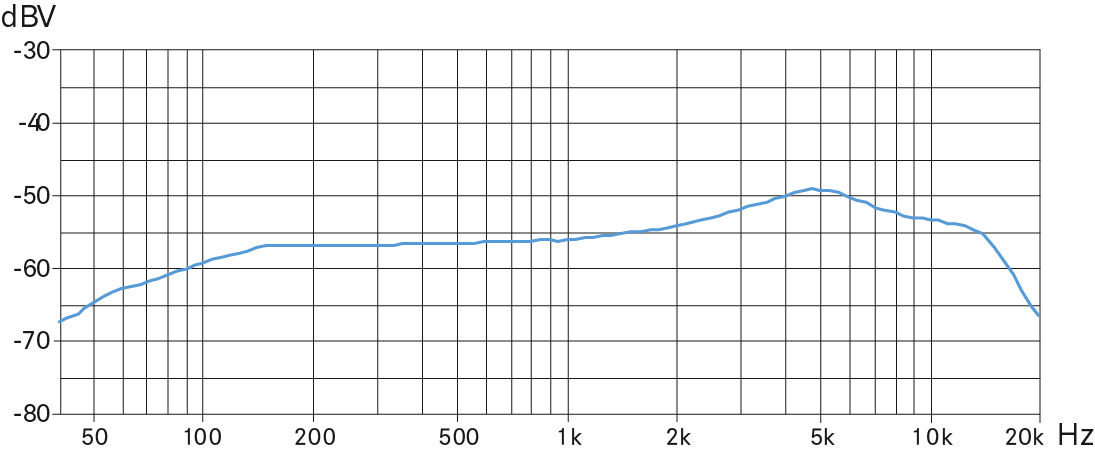

Frequency response
MME 865
Transducer principle
- pre-polarized condenser
Frequency response
- 40 to 20,000 Hz
Pick-up pattern
- Super-cardioid
Sensitivity
- 1.6 mV/Pa
Max. SPL (at 1 kHz)
- 154 dB
Dynamic range
- 120 dB(A)
Weight
- 92 g

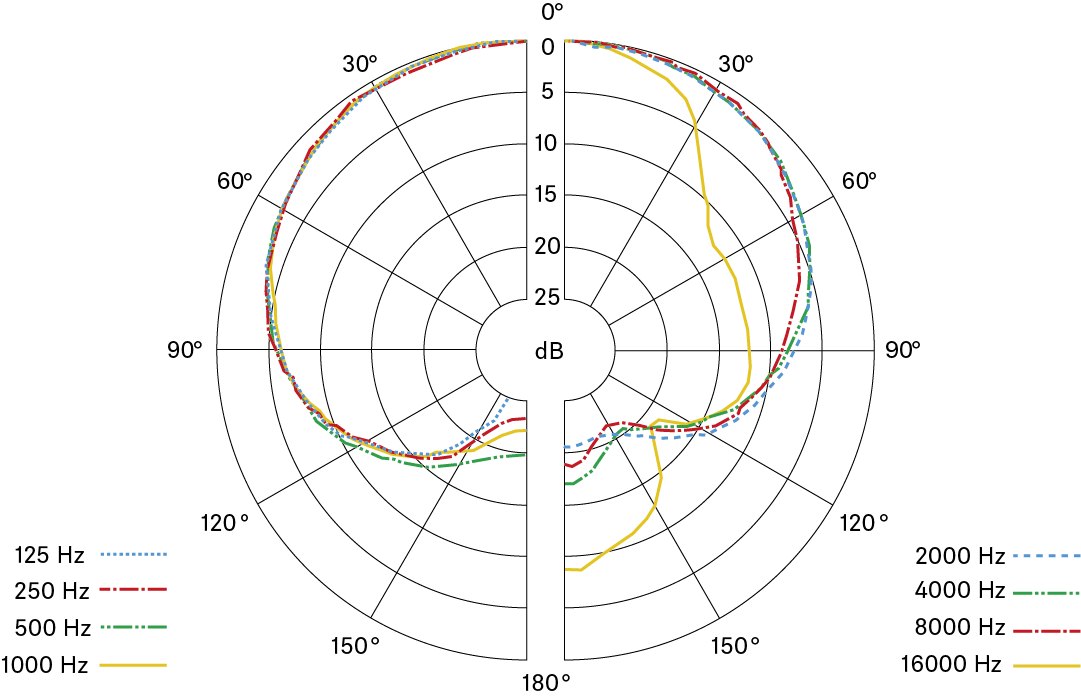

Polar pattern

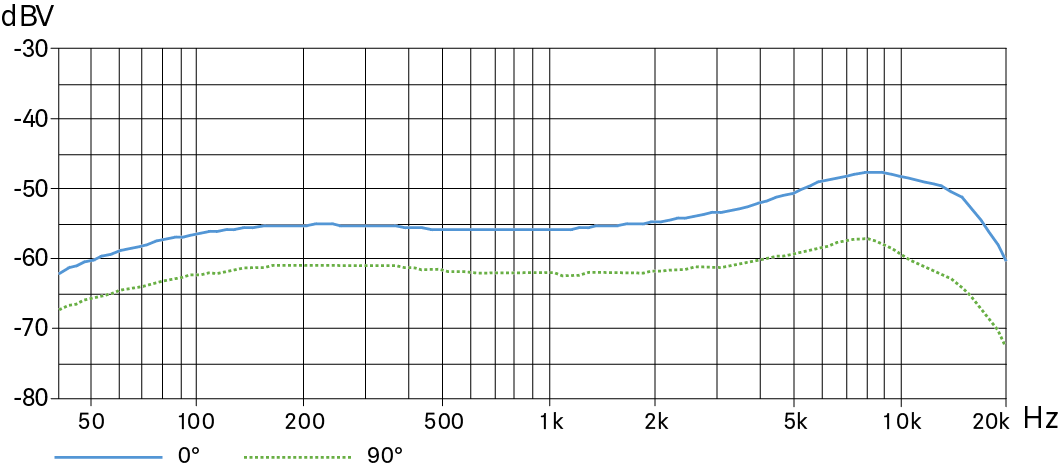

Frequency response
MMD 935
Transducer principle
- dynamic
Frequency response
- 40 to 18,000 Hz
Pick-up pattern
- Cardioid
Sensitivity
- 2.5 mV/Pa
Max. SPL (at 1 kHz)
- 154 dB
Dynamic range
- 139 dB(A)
Weight
- 119 g

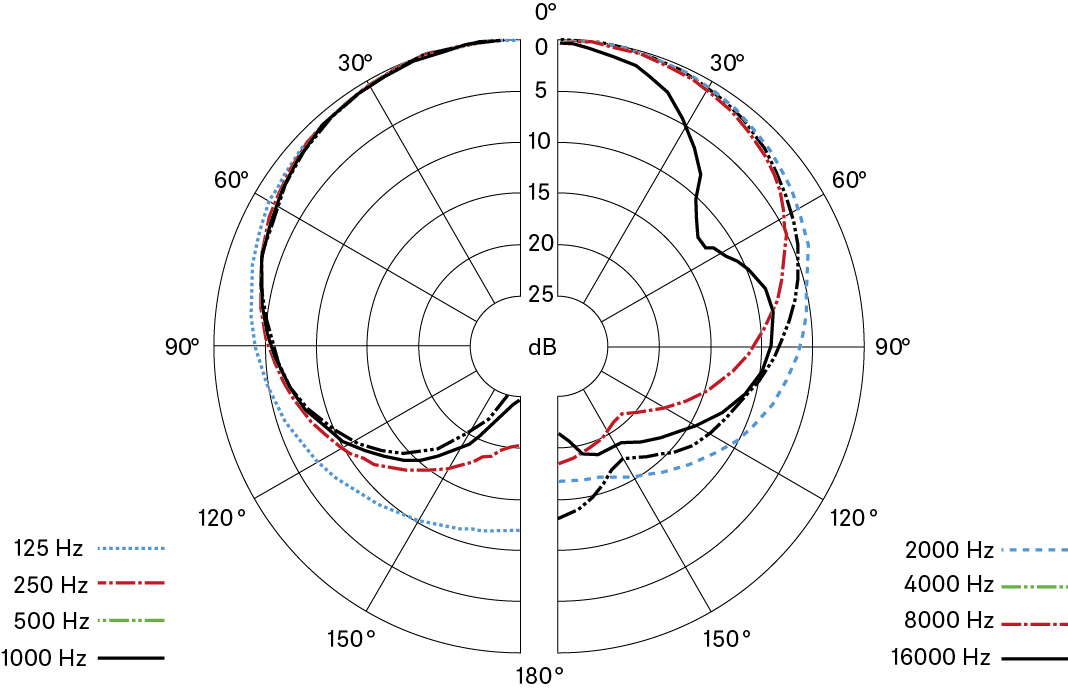

Polar pattern

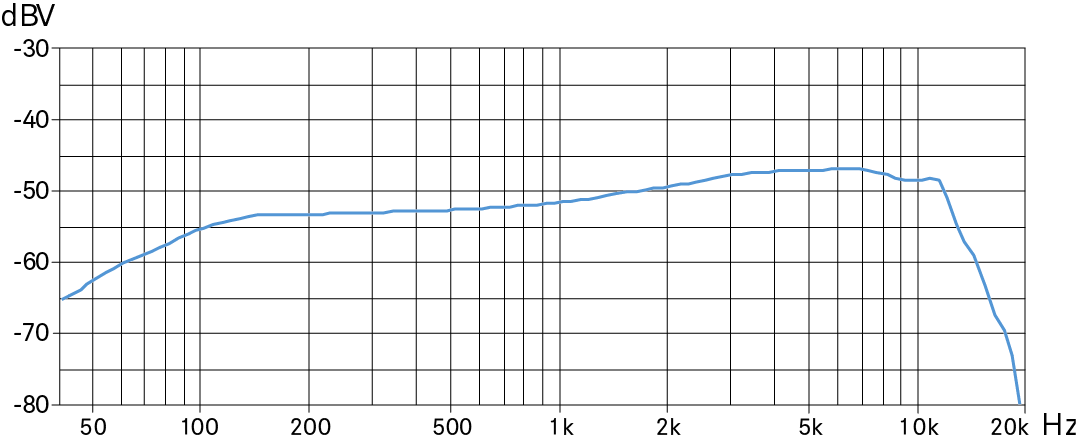

Frequency response
MMD 945
Transducer principle
- dynamic
Frequency response
- 40 to 18,000 Hz
Pick-up pattern
- Super-cardioid
Sensitivity
- 1.8 mV/Pa
Max. SPL (at 1 kHz)
- 154 dB
Dynamic range
- 136 dB(A)
Weight
- 119 g

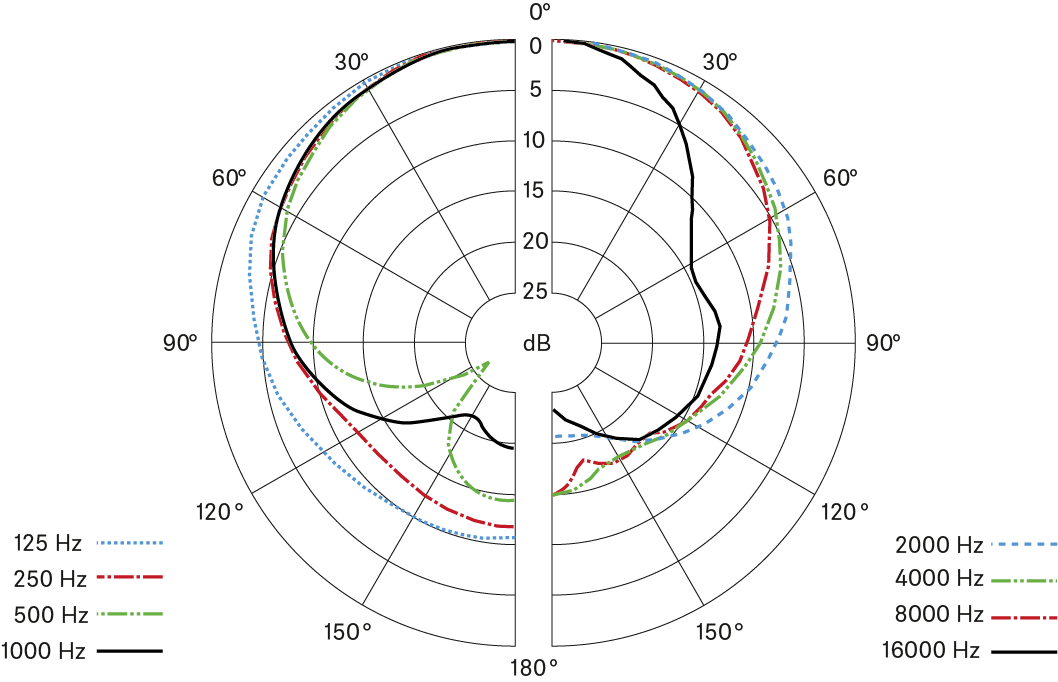

Polar pattern

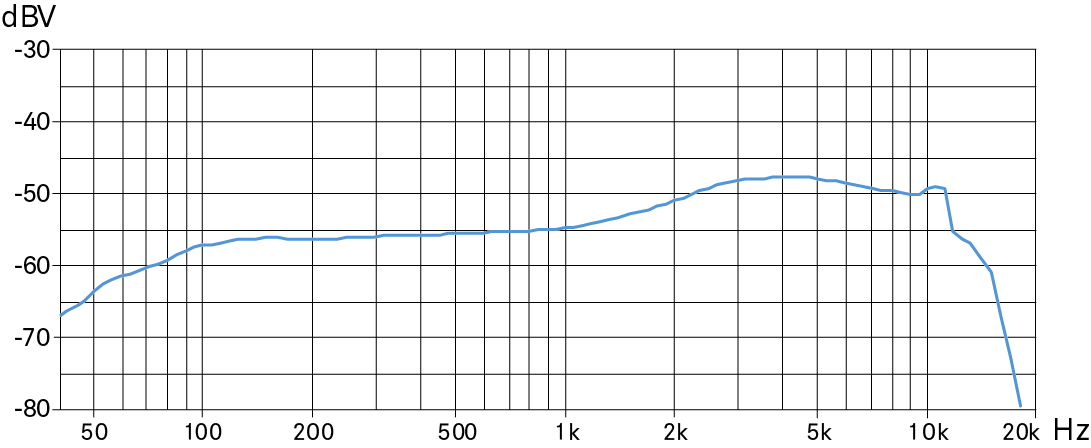

Frequency response
MMK 965
Transducer principle
- externally polarized dual diaphragm condenser microphone
Frequency response
- 40 to 20,000 Hz
Pick-up pattern
- Cardioid/Super-cardioid, switchable
Sensitivity
- 7.0 mV/Pa
- with preattenuation: 2.2 mV/Pa (factory setting)
Max. SPL at 1 kHz
- 144 dB
- with preattenuation: 154 dB (factory setting)
Dynamic range
- 126 dB(A)
Diameter of diaphragm
- 2.54 cm (1")
Equivalent noise level
- A-weighted: 18 dB
Weight
- 162 g

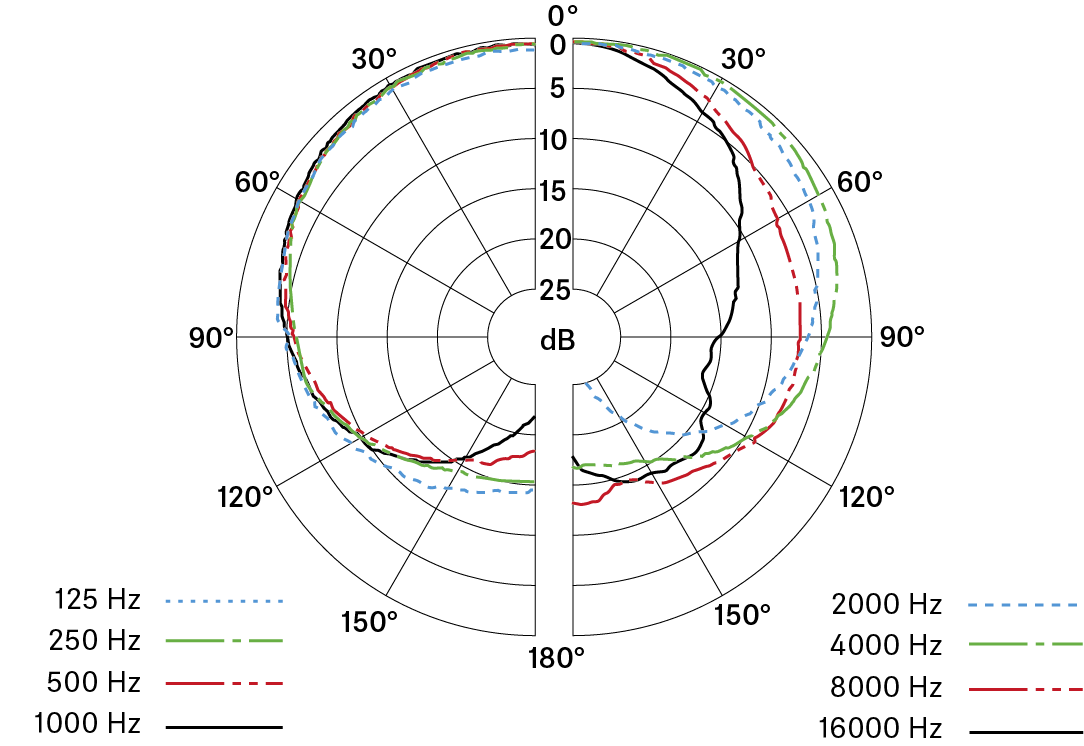

Polar pattern - Cardioid

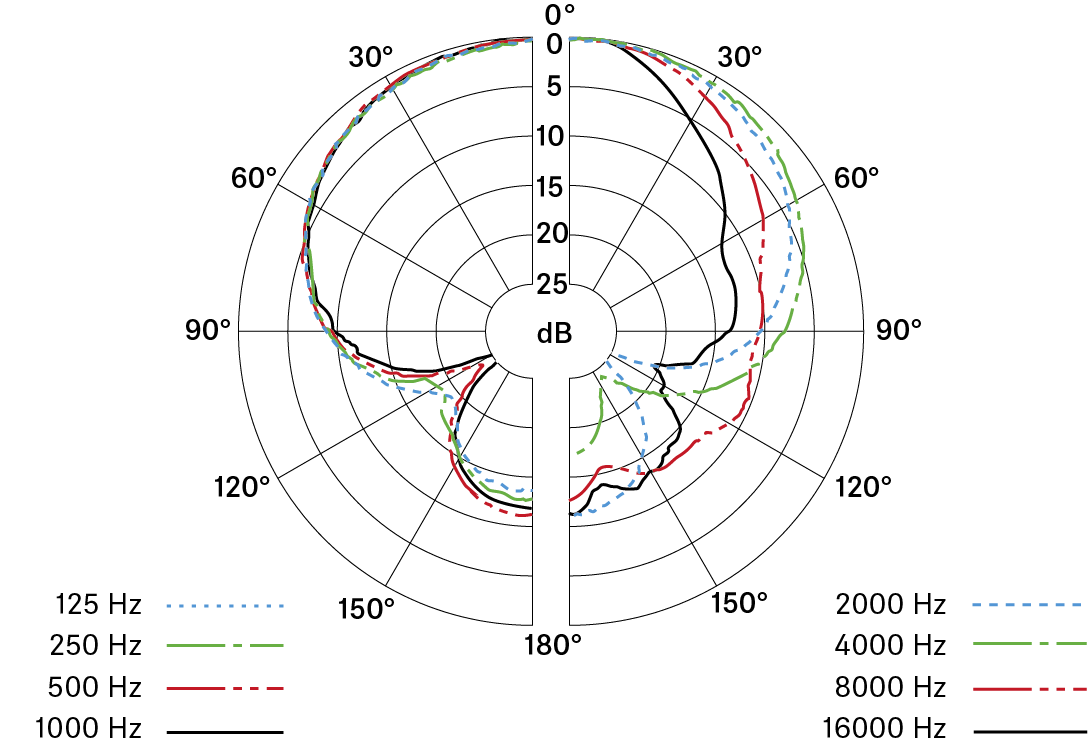

Polar pattern - Super-cardioid

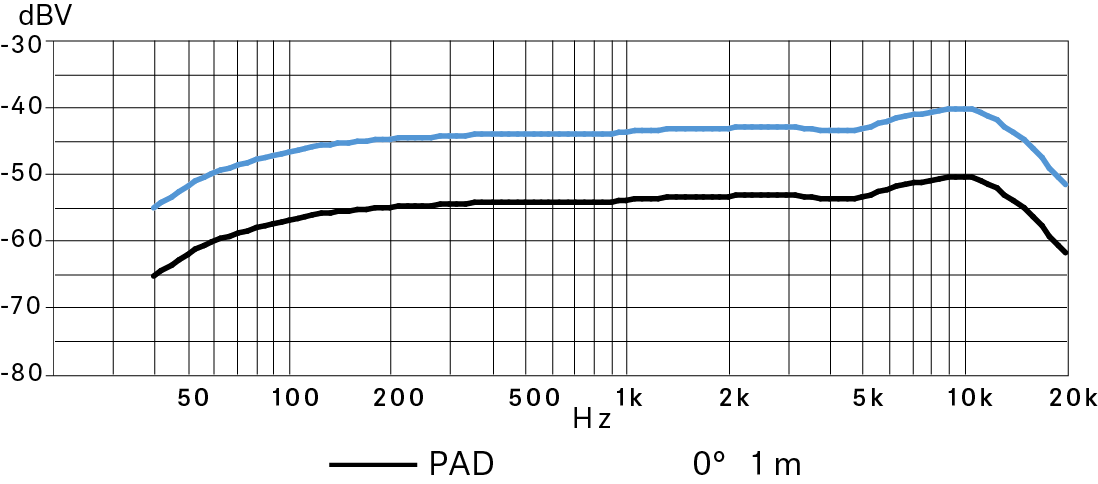

Frequency response - Cardioid

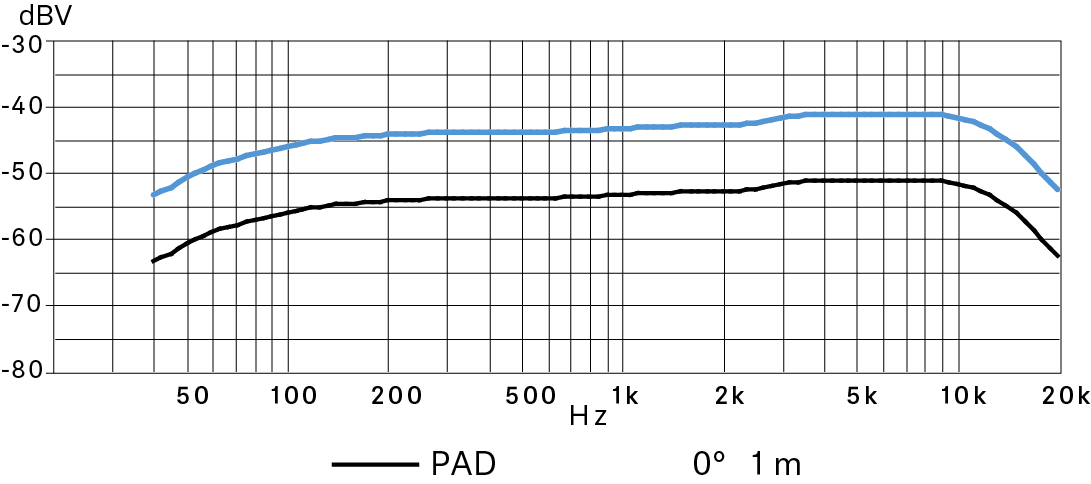

Frequency response - Super-cardioid
