The frequency bank system
There are different frequency ranges in the UHF band available for transmission.
ew 100 G4
The following frequency ranges are available for the ew 100 G4 series:
- A1 range: 470 - 516 MHz
- A range: 516 - 558 MHz
- AS range: 520 - 558 MHz
- G range: 566 - 608 MHz
- GB range: 606 - 648 MHz
- B range: 626 - 668 MHz
- C range: 734 - 776 MHz
- C-TH range: 748.2 - 757.8 MHz
- D range: 780 - 822 MHz
- JB range: 806 - 810 MHz
- E range: 823 - 865 MHz
- K+ range: 925 - 937,5 MHz
- 1G8 range: 1785 - 1800 MHz

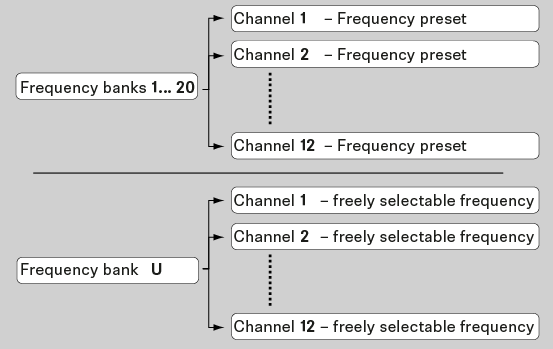

Every frequency range has 21 frequency banks with up to 12 channels:
You can find information about the frequency presets in the frequency tables of the respective frequency ranges under Frequency ranges.
ew 300-500 G4
The following frequency ranges are available for the ew 300-500 G4 series:
- Aw+ range: 470 - 558 MHz
- Aw30 range: 470 - 558 MHz
- AS range: 520 - 558 MHz
- Gw1 range: 558 - 608 MHz
- Gw range: 558 - 626 MHz
- GBw range: 606 - 678 MHz
- Bw range: 626 - 698 MHz
- Bw30 range: 626 - 698 MHz
- Cw range: 718 - 790 MHz
- Cw-TH range: 748.2 - 757.8 MHz
- Dw range: 790 - 865 MHz
- JB range: 806 - 810 MHz
- K+ range: 925 - 937,5 MHz

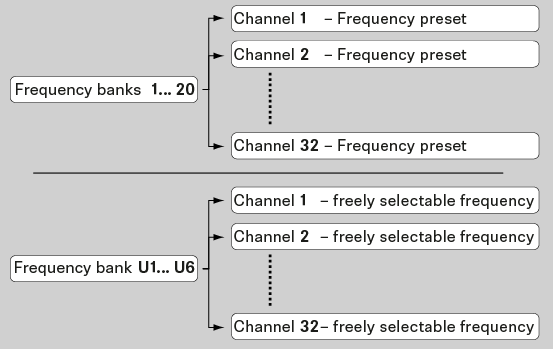

Every frequency range has 26 frequency banks with up to 32 channels:
You can find information about the frequency presets in the frequency tables of the respective frequency ranges under Frequency ranges.
ew 100 P G4
The following frequency ranges are available for the ew 100 P G4 series
- A1 range: 470 - 516 MHz
- A range: 516 - 558 MHz
- AS range: 520 - 558 MHz
- G range: 566 - 608 MHz
- GB range: 606 - 648 MHz
- B range: 626 - 668 MHz
- C range: 734 - 776 MHz
- C-TH range: 748.2 - 757.8 MHz
- D range: 780 - 822 MHz
- JB range: 806 - 810 MHz
- E range: 823 - 865 MHz
- K+ range: 925 - 937,5 MHz
Every frequency range has 21 frequency banks with up to 12 channels:
You can find information about the frequency presets in the frequency tables of the respective frequency ranges under Frequency ranges.
ew 500 P G4
The following frequency ranges are available for the ew 500 P G4 series
- Aw+ range: 470 - 558 MHz
- AS range: 520 - 558 MHz
- Gw1 range: 558 - 608 MHz
- Gw range: 558 - 626 MHz
- GBw range: 606 - 678 MHz
- Bw range: 626 - 698 MHz
- Cw range: 718 - 790 MHz
- Dw range: 790 - 865 MHz
- JB range: 806 - 810 MHz
- K+ range: 925 - 937,5 MHz
Every frequency range has 26 frequency banks with up to 32 channels:
You can find information about the frequency presets in the frequency tables of the respective frequency ranges under Frequency ranges.
