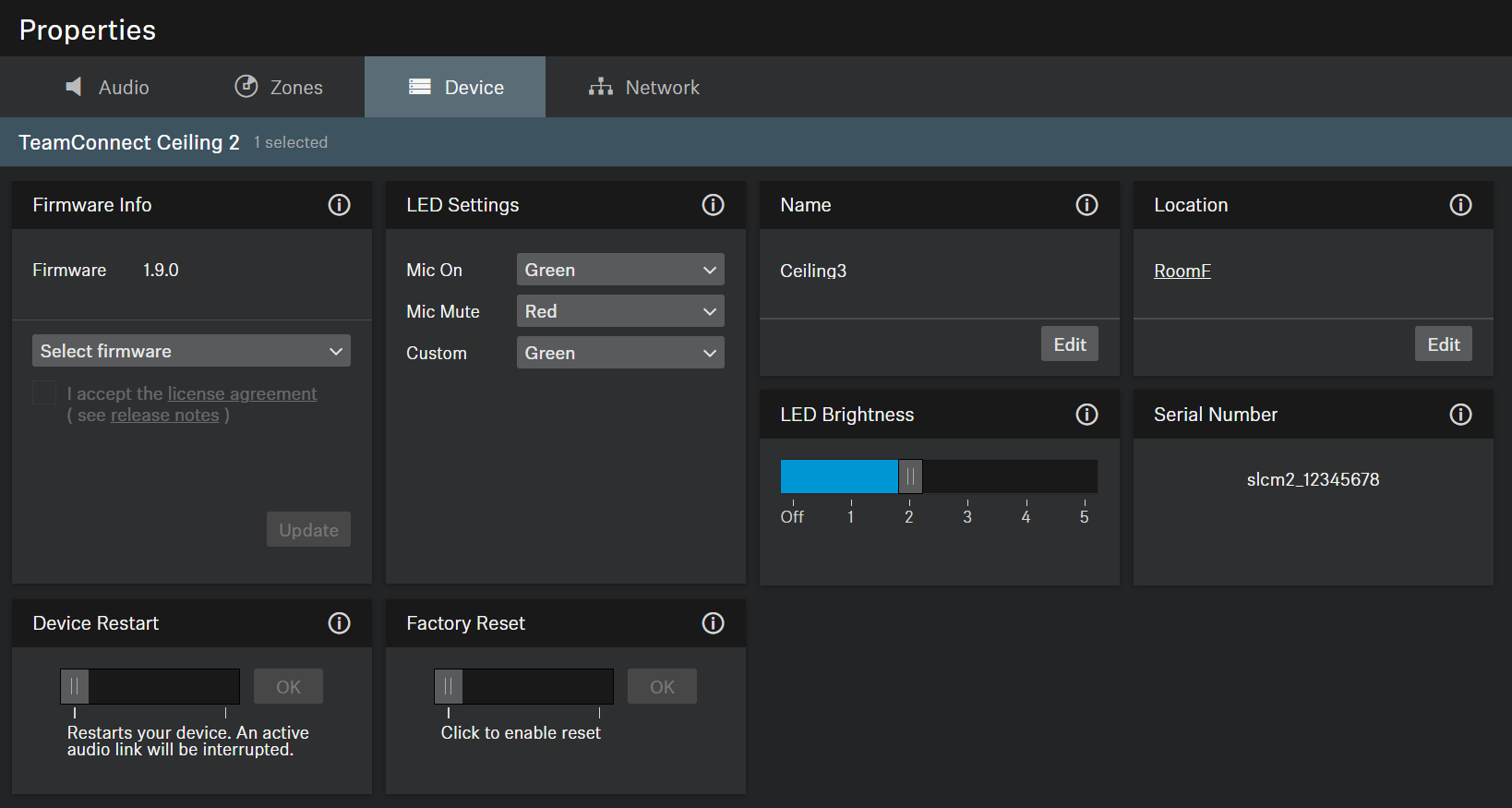

Device Settings

The following device settings are available for the TC Bar.

Audio SettingsZonesNetwork SettingsFirmware InfoFactory ResetDevice RestartLocationNameSerial NumberLED BrightnessLED Settings

Firmware Info

Displays the current firmware version.

For information on how to update the firmware, refer to Updating device firmware.

LED Settings

Adjusts the color of the four LEDs in the corners of the ceiling microphone array.

  • Mic On: Sets the color of the LEDs when the microphone array is active.
  • Mic Mute: Sets the color of the LEDs when the microphone array is muted.
  • Custom: Sets the color of the LEDs for a status which can be customized via a media control system using the Sennheiser Sound Control Protocol.

Name

Edits the name of a device. The name will be stored on the device. If you change the name on the device itself, it will be displayed here accordingly.

Location

Sets the location of the selected device.

The field is limited to 255 bytes length including any UTF-8 characters.

LED Brightness

Slider for adjusting the LED brightness.

  • Off: the LEDs are switched off completely
  • 1 ... 5: adjusts the brightness between low (1) and high (5)

Serial Number

Displays the serial number.

Device Restart

Restarts the selected device.

Factory Reset

All settings of the selected device are reset to the factory defaults.

The last saved status of the Location-based mute function is retained even after you reset the device to the factory default.
