Zones

The TeamConnect Bar allows you to define two different types of zones.

Audio SettingsDevice SettingsNetwork SettingsCamera SettingsAccessPriority ZoneExclusion ZonesOverview
The TeamConnect Bar allows you to define two different types of zones:
  • One Priority Zone - Zone to be preferred
  • Up to three Exclusion Zones - Zones to be excluded

For each zone the horizontal angles can be set individually.

Priority Zone

In case both zone types overlap, the rules of the Exclusion Zone will apply.

The Priority Zone allows you to set up a zone which will be handled prioritized in case of incoming audio signals from different positions at the same time. This feature can be useful e.g. during conference meetings with an important person involved.

You can adjust a weighting for this zone. The weighting increases the focus on the incoming signals from the zone by the selected values. The following settings can be made:
  • Mid: Increases the weighting on the audio output from the zone by about 1.5 times the normal value.
  • High: Increases the weighting on the audio output from the zone by about 2.5 times the normal value.
  • Max: Increases the weighting on the audio output from the zone by about 4 times the normal value.
When defining the Priority Zone the area to be prioritized in the detection of the audio source is indicated green.

You can adjust the slider to set a Priority Zone. The zone can be adjusted individually from 15° to 165°. Minimum size for the angle: 15°.

Exclusion Zones

In case both zone types overlap, the rules of the Exclusion Zone will apply.

The TC Bar allows you to define up to three exclusion zones. By activating these zones all outgoing audio signals from these areas will be neglected.

When defining the Exclusion Zones the area to be excluded in the detection of the audio source is indicated petrol.

You can adjust the sliders to set the exclusion zone. The horizontal zone can be adjusted individually from 15° to 165°.

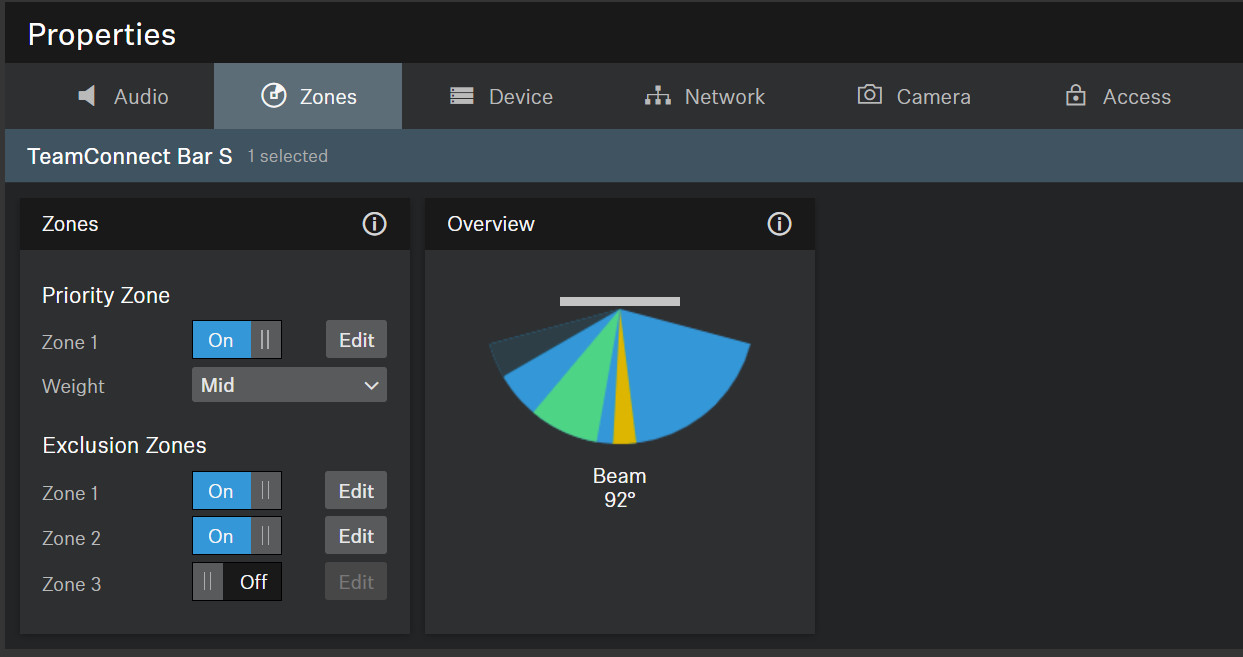

Overview

When you activate the zones, a 2D overview is created on the right, which displays all activated zones in real time. The zones in the 2D model are indicated either green (prioritized) or petrol (excluded).
