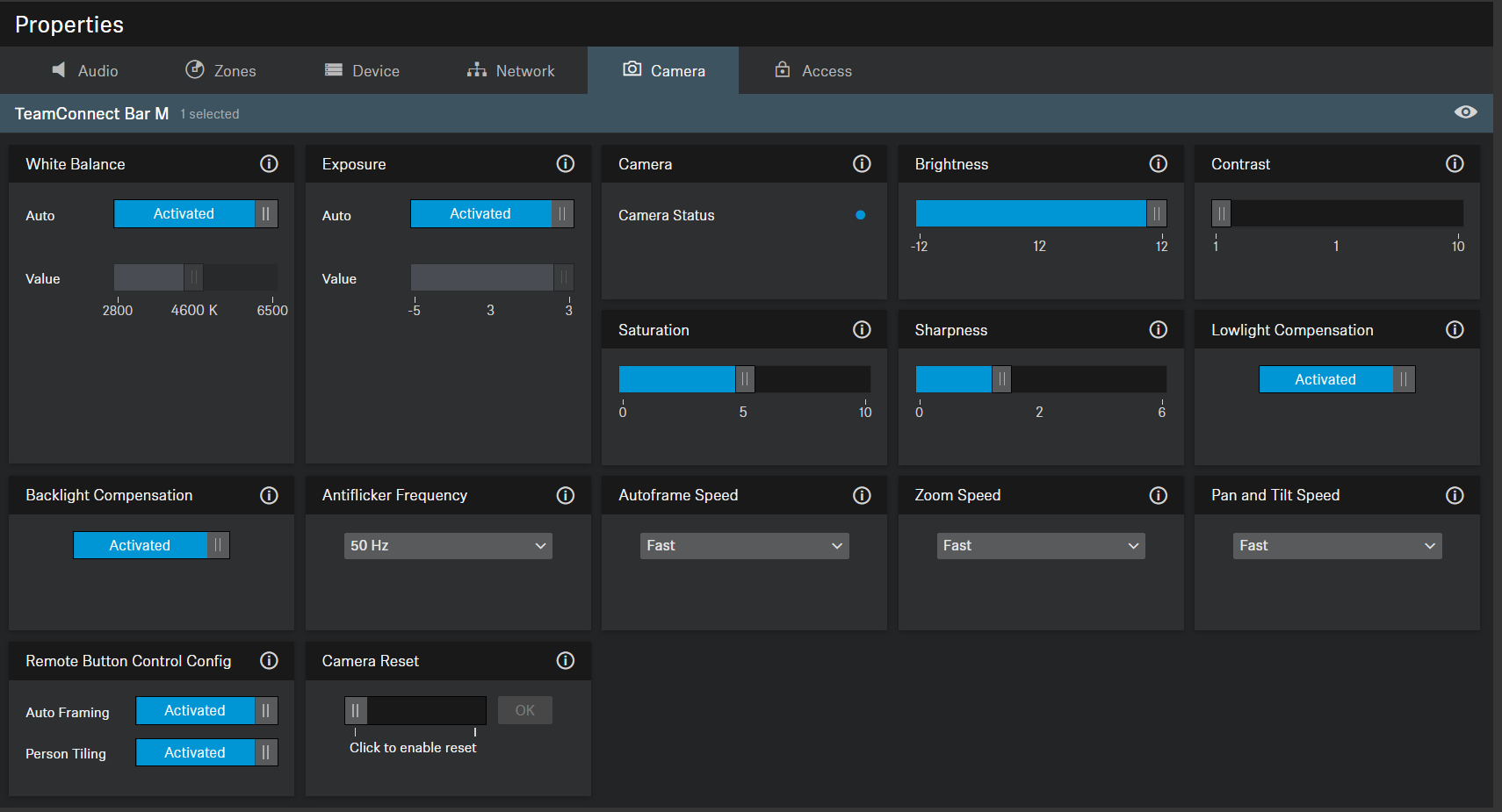

Camera Settings

White Balance

Adjusts the video image for natural color representation. The white balance can be set either automatically or manually.

Adjusts the camera for scenes with different lighting conditions. The exposure can be set either automatically or manually.

Shows current status (enabled or disabled) of the camera.

Adjusts the brightness of the video image from -12 (dark) to 12 (very bright).

Adjusts the contrast between light and dark parts of the video image from 1 (low contrast) to 10 (high contrast).

Adjusts the color saturation of the video image from 0 (low saturation) to 10 (high saturation).

Adjusts the level of detail in the video image.

Increases the camera sensitivity in scenes with low lighting. Either Backlight Compensation or Lowlight Compensation can be used.

Increases the exposure of the camera in backlight conditions. Either Backlight Compensation or Lowlight Compensation can be used.

Reduces image flickering caused by AC driven lighting sources.

Controls the speed of automatic zooming.

Controls the speed of manual zooming.

Controls the pan and tilt speed of the camera.

Activates or deactivates functions Auto Framing and/or Person Tiling on the remote control.

Resets the preset camera settings to default settings.
