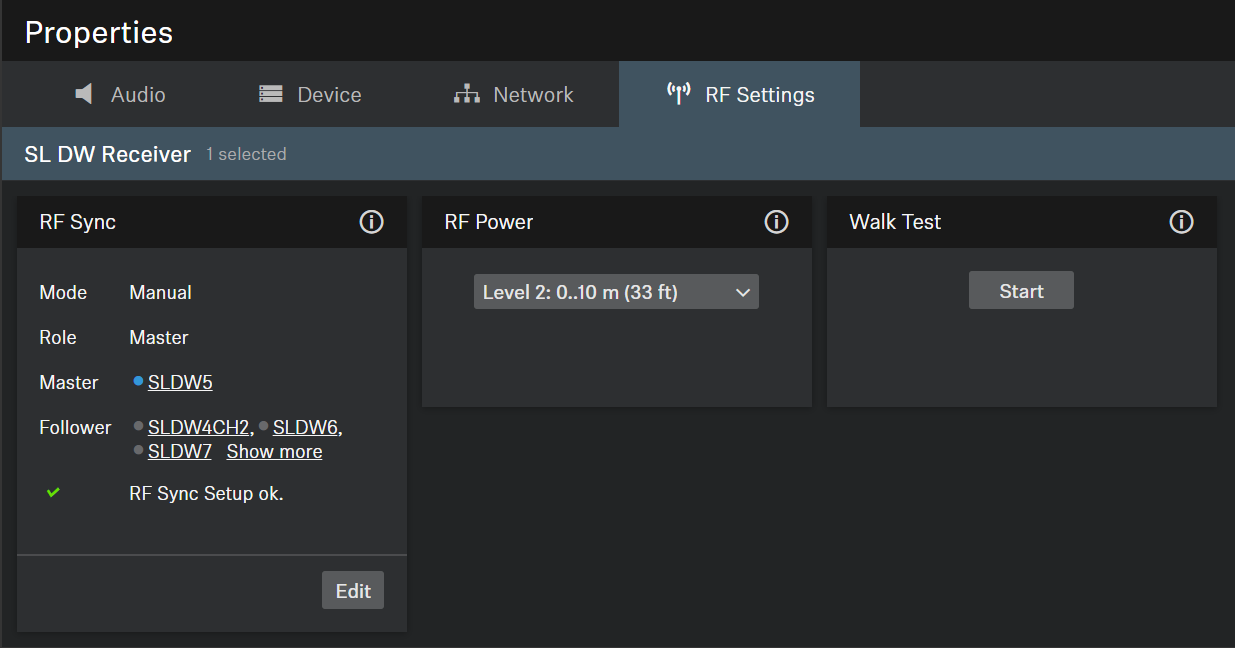

RF Settings

Click on the desired field in the image for details.
RF SyncTransmission powerWalk TestAudio settingsDevice SettingsNetwork Settings

RF Sync

Allows the configuration of the RF synchronization of the devices:
  • Defining devices as a master or a follower.
  • Automatic mode: automatically defines the master and the followers.
    • This mode is recommended for a single-room setup.
  • Manual mode: allows the manual configuration of master and follower devices.
    • This mode is recommended for larger setups in multiple rooms.
For detailed information on the “RF sync” function, please refer to chapter RF sync for SpeechLine Digital Wireless.

Transmission power

  • Automatic: The transmission power is automatically adjusted.
  • Level 1 ... 5: The transmission power can be manually reduced in 5 steps.
    • This function is required for operation in Multi-Room Mode.
For further information on the Multi-Room Mode refer to the SpeechLine Digital Wireless system instruction manual: SpeechLine Digital Wireless system instruction manual.

Walk Test

  • Start: Starts the walk test.
  • Stop: After starting the walk test, the Start button becomes the Stop button. Click on Stop to end the walk test.
