Audio settings

The following settings can be adjusted for wireless links with the SL Rack Receiver DW in the audio tab.

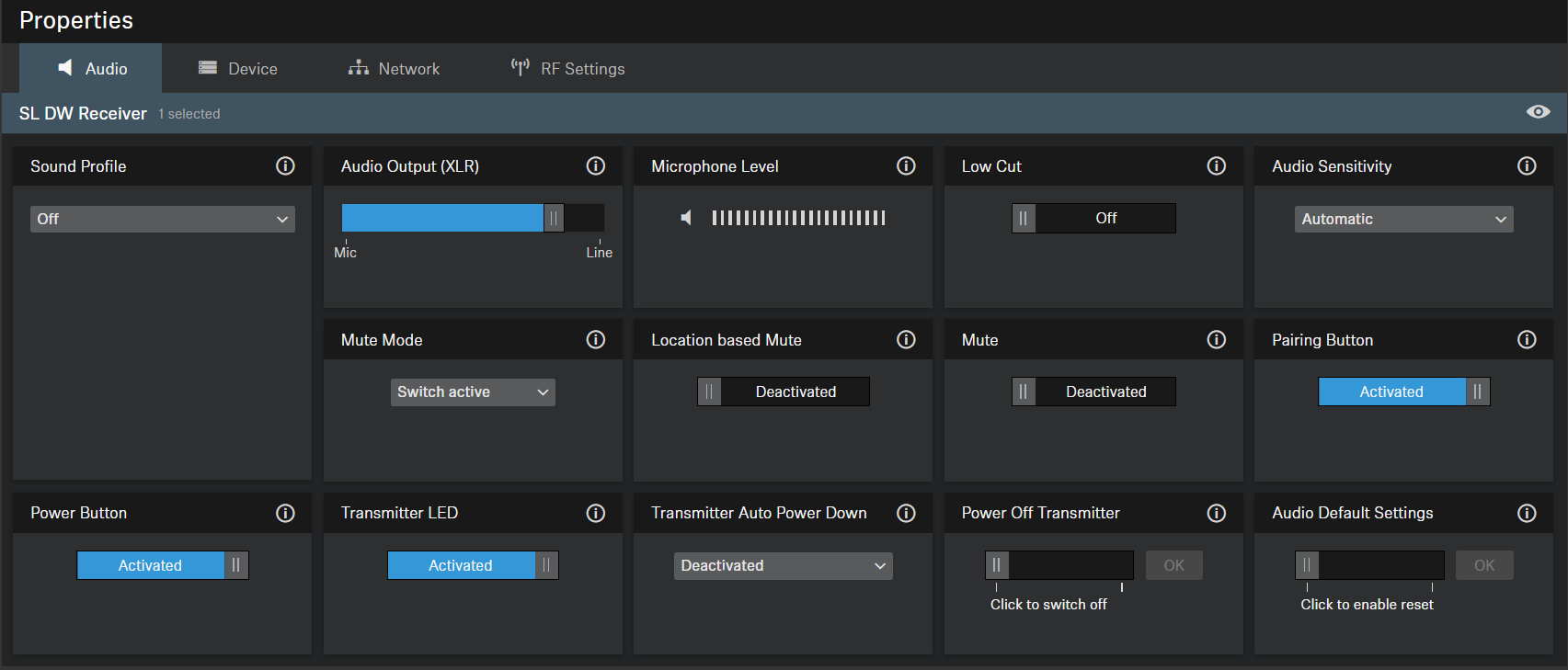

Click on the desired field in the image for details.
Sound ProfileAudio OutputMute ModeLocation based muteLow CutMuteAudio SensitivityPairing ButtonAudio Default SettingsPower Off TransmitterTransmitter Auto Power DownTransmitter LEDPower ButtonDevice SettingsNetwork SettingsRF SettingsMicrophone Level

Sound Profile

  • Female Speech: Recommended sound profile for female speakers.
  • Male Speech: Recommended sound profile for male speakers.
  • Media: Recommended sound profile for audio devices.
  • Custom: 7-band equalizer for manually adjusting the sound settings.
  • Off: No sound profile is activated.

Audio Output

Slider for adjusting the audio output level of the XLR socket between Mic Level and Line Level. This setting does not affect the RCA output since a line level signal is always present at this output.

Channel Name

Displays the name of the channel.

Microphone Level

Displays the microphone level.

Low Cut

A low cut filter cuts out all sounds below a certain frequency in order to filter out wind or handling noise.

  • On: The low cut filter is activated. Low-frequency noise is filtered out.
  • Off: The low cut filter is deactivated.

Audio Sensitivity

  • Automatic: The audio sensitivity will be adjusted automatically.
  • 0 dB ... -30 dB: The audio sensitivity can be adjusted manually in steps of 6 dB in the range between 0 dB and -30 dB.

Mute Mode

  • Switch activated: The MUTE switch of the paired transmitter is activated and can be used.
  • Switch deactivated: The MUTE switch of the paired transmitter is deactivated and cannot be used. The receiver continuously outputs audio signals.
  • Push to talk: Press and hold the MUTE switch of the paired transmitter to activate the audio signal (for SL Boundary 114-S DW and SL Tablestand 133/153-S DW only).
  • Push to mute: Press and hold the MUTE switch of the paired transmitter to mute the audio signal (for SL Boundary 114-S DW and SL Tablestand 133/153-S DW only).

Location based mute

Part of group: Activate this function to add the transmitter to a mute group. If then one of the transmitters in this mute group is muted or unmuted, all other transmitters in the same mute group of the same location will also be muted and unmuted simultaneously. This allows you to create a separate mute group for each location.

Deactivated: The transmitter is not part of a mute group. Muting or unmuting does not affect other transmitters.

The most recently saved status is retained even after you reset the device or the audio settings to the factory defaults.

Mute

Immediately mutes the audio outputs of the selected device.

Power Button

Activates or deactivates the power button on the transmitter. This prevents the user from accidentally switching off the transmitter.
  • Activated: The power button on the transmitter is unlocked.
  • Deactivated: The power button on the transmitter is locked.

Transmitter LED

Activates or deactivates the LED that indicates an active connection on paired handheld and bodypack transmitters. If the transmitter LED is deactivated, the green LED does not indicate an active connection.
  • Activated: The LED indicates an activate connection.
  • Deactivated: The LED does not indicate an active connection.

Transmitter Auto Power Down

Sets the time after which the transmitter will be automatically switched off if no link is active.

  • Deactivated: The feature is deactivated.
  • 10 min: The transmitter automatically switches off after 10 minutes.
  • 20 min: The transmitter automatically switches off after 20 minutes.
  • 30 min: The transmitter automatically switches off after 30 minutes.

Pairing Button

Activates or deactivates the pairing button on the transmitter. This prevents the user from accidentally pairing the transmitter with another receiver.
  • Activated: The pairing button on the transmitter is unlocked.
  • Deactivated: The pairing button on the transmitter is locked.

Power Off Transmitter

Immediately switches off the selected transmitter.

Audio Default Settings

Resets the audio settings (Low Cut and Sound Profiles) to the factory defaults.
The last status saved in the “Location-based mute” field is retained even after you reset the audio settings to the factory defaults.

Mix Settings

Under Mix Settings you can adjust the levels of the channels in order to emphasize or attenuate them individually. All channels are mixed down to a sum signal.
  • Auto Mix: The audio sensitivity of all channels will be adjusted automatically.
  • Manual Mix: The audio sensitivity of each channel can be adjusted manually.
