RF Settings

The following settings can be adjusted for wireless links with the receivers and transmitters of the evolution wireless G4 and G3 series.

Audio SettingsDevice SettingsNetwork SettingsRF Settings

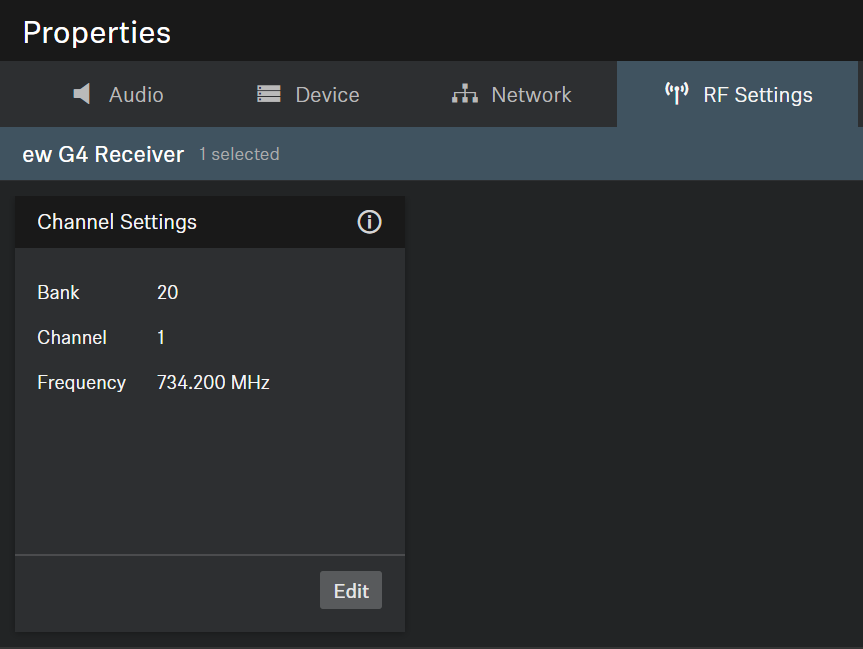

Channel Settings

Displays the current frequency including bank and channel.

RF Power

Adjusts the transmission power of the receiver:
  • Low: 10 mW
  • Standard: 30 mW
  • High: 50 mW
For some frequency variants of the receiver, not all options might be available due to country-specific regulations.

RF Mute

Immediately mutes the audio outputs of the selected device.
