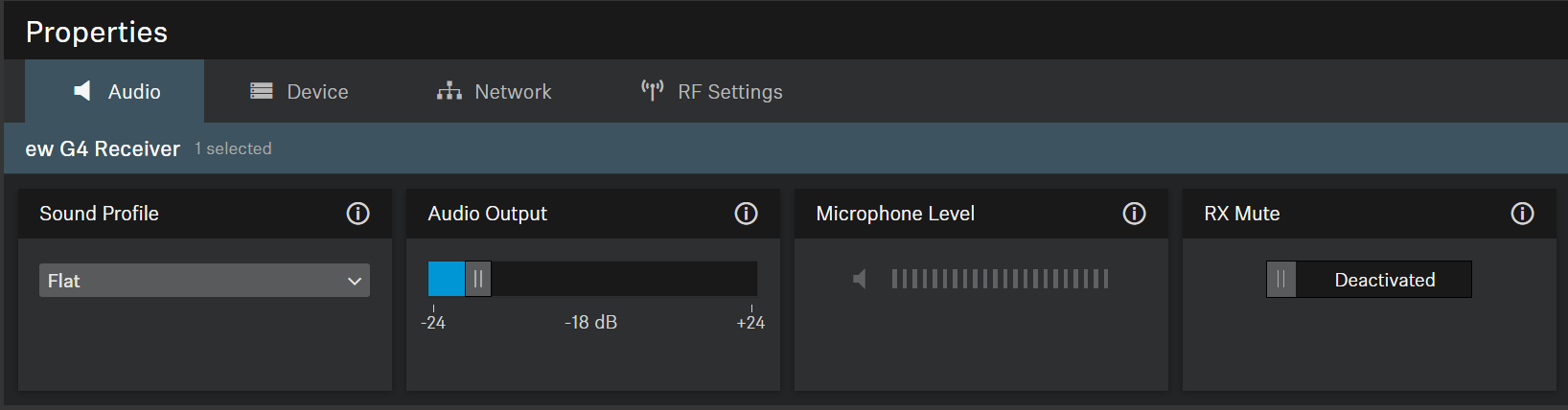

Audio Settings

The following settings can be adjusted for wireless links with the receivers and transmitters of the evolution wireless G4 and G3 series.

Device SettingsNetwork SettingsRF SettingsSound ProfileAudio outputMicrophone LevelRX Mute

Sound Profile

  • Flat: no equalization
  • Low Cut: -3 dB at 180 Hz
  • Low Cut/High Boost: -3 dB at 180 Hz and +6 dB at 10 kHz
  • High Boost: +6 dB at 10 kHz
  • Off: No sound profile is activated.

Microphone Level

Displays the microphone level.

Audio output

Slider for adjusting the audio output level of the AF OUT audio output of the EM 300-500 G4.

RX Mute

Immediately mutes the audio outputs of the selected device.
