Audio settings

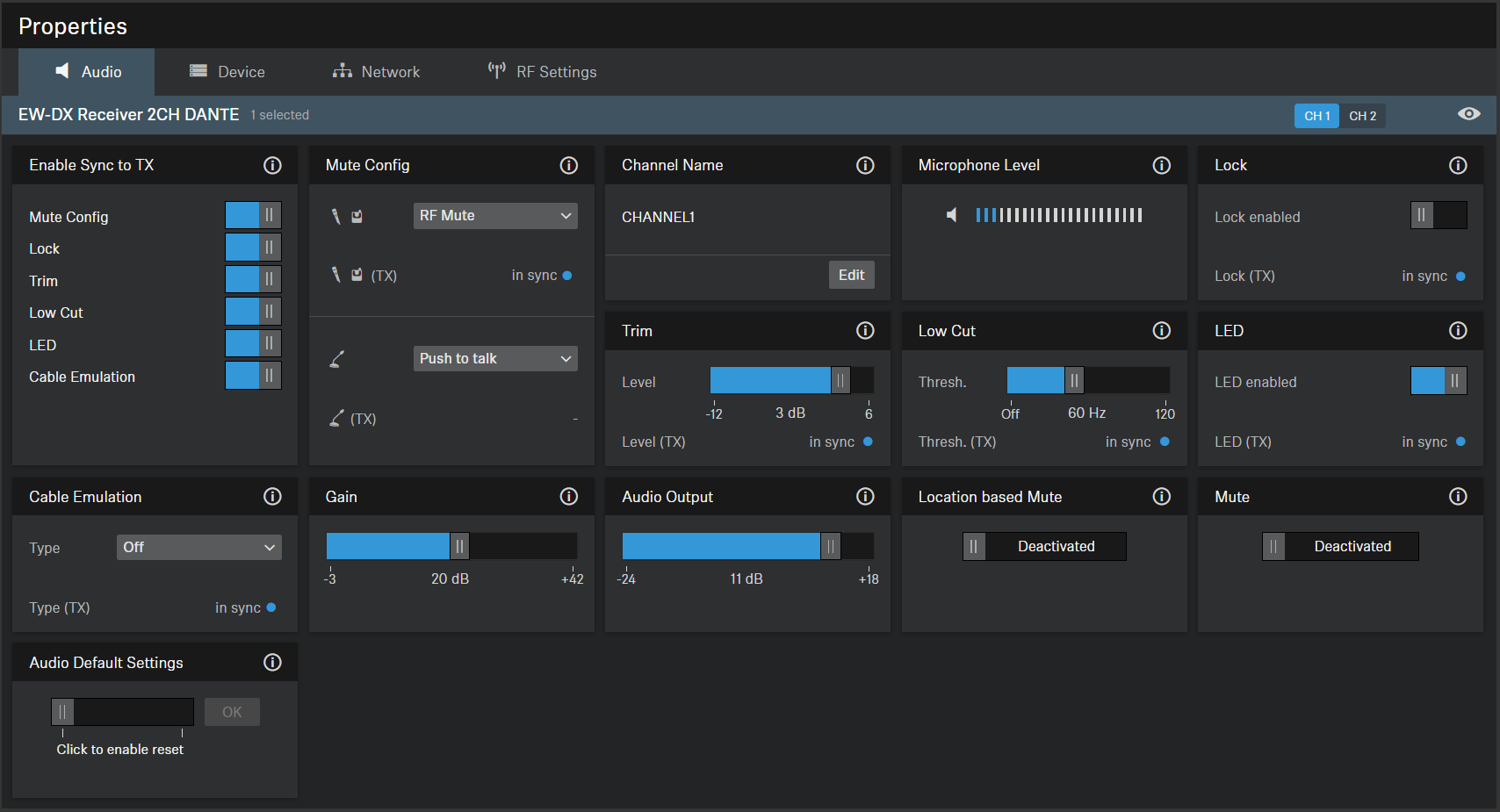

The following settings can be adjusted for wireless links with the EW-DX EM 2, EW-DX EM 2 Dante and EW-DX EM 4 Dante in the audio tab.

Click on the desired field in the image for details.
Enable Sync to TXMute ConfigChannel NameTrimMicrophone LevelLow CutLockLEDMuteLocation based muteAudio OutputAmplificationCable EmulationAudio Default SettingsDevice SettingsNetwork SettingsRF Settings

Enable Sync to TX

Activates or deactivates synchronization of the displayed audio settings on the transmitter.

To send value changes to the transmitter, you have to press the “Sync” button on the receiver and the transmitter. Settings that are synchronized between the transmitter and the receiver are indicated with a blue dot and the informational text “in sync” in the settings box.

Mute Config

This function is only available for transmitters with a mute button (SK, SKM-S and TS).

Activates the transmitter’s mute function for AF or HF.

  • Activates the following mute functions of the table stand transmitter:
    • OFF: No mute function activated.
    • AF Mute: Activates the transmitter’s mute function for AF.
    • Push to talk:
      • The microphone is muted.
      • The microphone button lights up red.
      • Press and hold the button on the table stand to activate the audio signal.
    • Push to mute:
      • The microphone is activated.
      • The microphone button lights up green.
      • Press and hold the button on the table stand to mute the audio signal.

Channel Name

Displays the name of the channel.

Trim

The trim function lets you adjust the level of multiple transmitters connected to a single receiver channel, in steps of 1 dB each.

Microphone Level

Displays the microphone level.

Low Cut

A low cut filter cuts out all sounds below a certain frequency in order to filter out wind or handling noise.

  • On: The low cut filter is activated. Low-frequency noise is filtered out.
  • Off: The low cut filter is deactivated.

Lock

If this option is activated, the user interface on the transmitter is locked.

LED

Activates or deactivates the LED that indicates an active connection on paired handheld and bodypack transmitters. If the transmitter LED is deactivated, the green LED does not indicate an active connection.
  • Activated: The LED indicates an activate connection.
  • Deactivated: The LED does not indicate an active connection.

Location based mute

Part of group: Activate this function to add the transmitter to a mute group. If then one of the transmitters in this mute group is muted or unmuted, all other transmitters in the same mute group of the same location will also be muted and unmuted simultaneously. This allows you to create a separate mute group for each location.

Deactivated: The transmitter is not part of a mute group. Muting or unmuting does not affect other transmitters.

The most recently saved status is retained even after you reset the device or the audio settings to the factory defaults.

Mute

Immediately mutes the audio outputs of the selected device.

Audio Default Settings

Resets the audio settings (Low Cut and Sound Profiles) to the factory defaults.
The last status saved in the “Location-based mute” field is retained even after you reset the audio settings to the factory defaults.

Cable Emulation

This menu option allows you to determine how a cable will affect your sound.
This function is only available for SK bodypack transmitters.

Amplification

Sets the output volume of the selected device channel (CH1 or CH2) from -3 dB to +42 dB in steps of 3 dB.

Audio Output

Slider for setting the audio output level.
