Network Settings

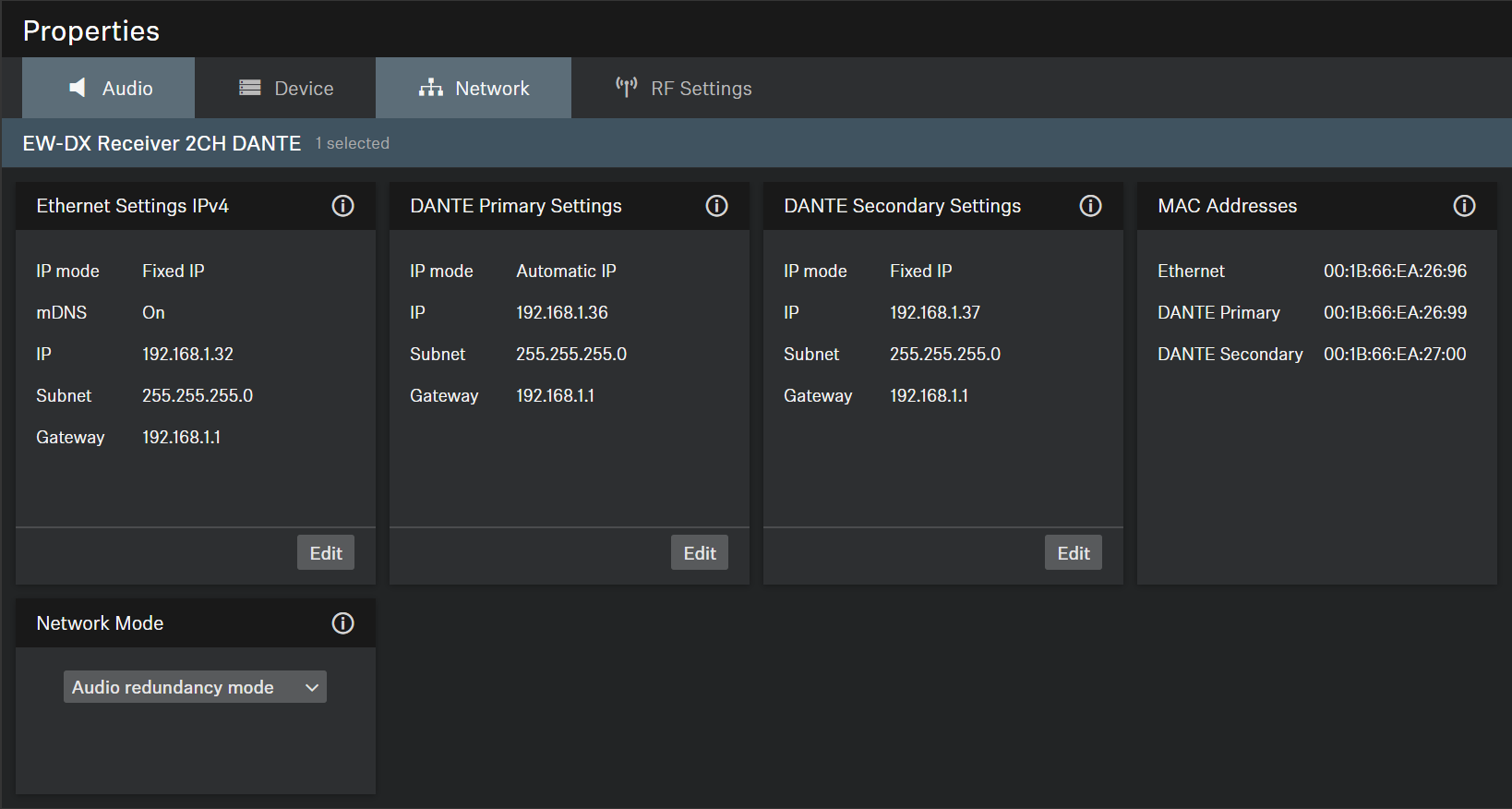

Click on the desired field in the image for details.
Ethernet SettingsDANTE Primary SettingsDANTE Secondary SettingsMAC AddressNetwork ModeAudio settingsDevice SettingsRF Settings

Ethernet Settings

IP Mode
  • Automatic: The IP address is automatically assigned using DHCP. If no DHCP server is available, the IP address is assigned by the SL Rack Receiver DW itself.
  • Fixed IP: The IP address has to be entered manually.
mDNS
  • Off: Deactivates mDNS to reduce the data volume transferred across the network. This option is recommended for larger systems.
  • On: Activates mDNS to allow for automatic device detection. This option is recommended for smaller systems with up to 30 devices.
IP
  • Input of the IP address in Fixed IP mode.
Subnet
  • Input of the subnet mask in Fixed IP mode.
Gateway
  • Input of the gateway in Fixed IP mode.

MAC Address

Displays the unique MAC addresses of the device according to the connected ports.

Network Mode

The network mode defines how the different network interfaces on the device shall be used.
  • Single cable mode
    • When a device is set to Single cable mode, the secondary Ethernet port will behave as a standard switch port, allowing daisy-chaining through the device.
  • Audio redundancy mode
    • When a device is set to Audio redundancy mode, the device will duplicate Dante media traffic to both Ethernet ports, allowing the implementation of a redundant network via the secondary port.
  • Split mode
    • When a device is set to Split mode, the first Ethernet port will be used to control and configure the device via the network. The secondary Ethernet port will be used for the output of digital audio.

DANTE Primary Settings

Displays editable IP address, Subnet and Gateway of the Primary DANTE port.

DANTE Secondary Settings

Displays the IP address, Subnet and Gateway of the Secondary DANTE port. You can edit the settings when using the network mode Audio redundancy.
