Network Settings

Audio SettingsDevice SettingsEthernet SettingsMAC Address

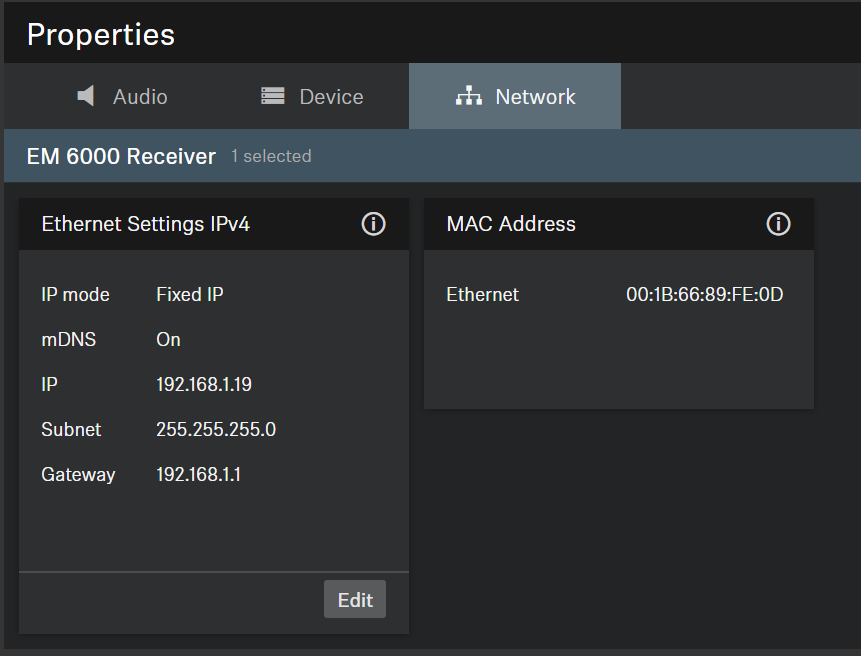

Ethernet Settings

IP Mode
  • Automatic: The IP address is automatically assigned using DHCP. If no DHCP server is available, the IP address is assigned by the SL Rack Receiver DW itself.
  • Fixed IP: The IP address has to be entered manually.
mDNS
  • Off: Deactivates mDNS to reduce the data volume transferred across the network. This option is recommended for larger systems.
  • On: Activates mDNS to allow for automatic device detection. This option is recommended for smaller systems with up to 30 devices.
IP
  • Input of the IP address in Fixed IP mode.
Subnet
  • Input of the subnet mask in Fixed IP mode.
Gateway
  • Input of the gateway in Fixed IP mode.

MAC Address

Displays the unique MAC addresses of the device according to the connected ports.
