Installation

Attaching the microphone

Carefully bend the flexible goose neck.

Connecting the microphone

Plug the 3.5 mm mini jack plug into the 3.5 mm jack socket of the MZA 900 P phantom power adapter (included with e 908 B).
Tighten the coupling ring.
Plug the XLR cable into the XLR output of the MZA 900 P phantom power adapter.

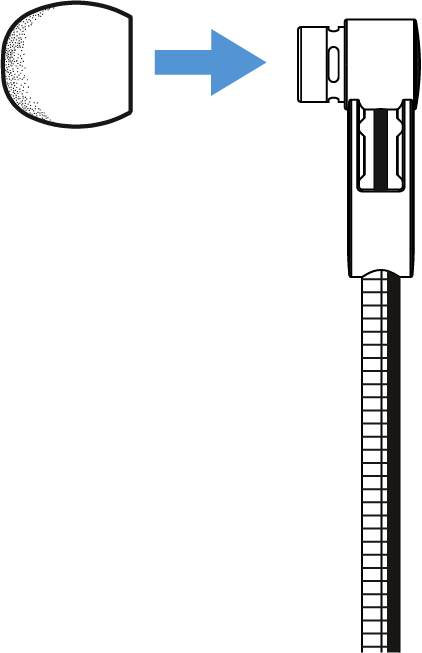

Using the windshield

Place the MZW 908 (optional accessories) windshield over the microphone head.
