Operation

Positioning the microphone on a drum

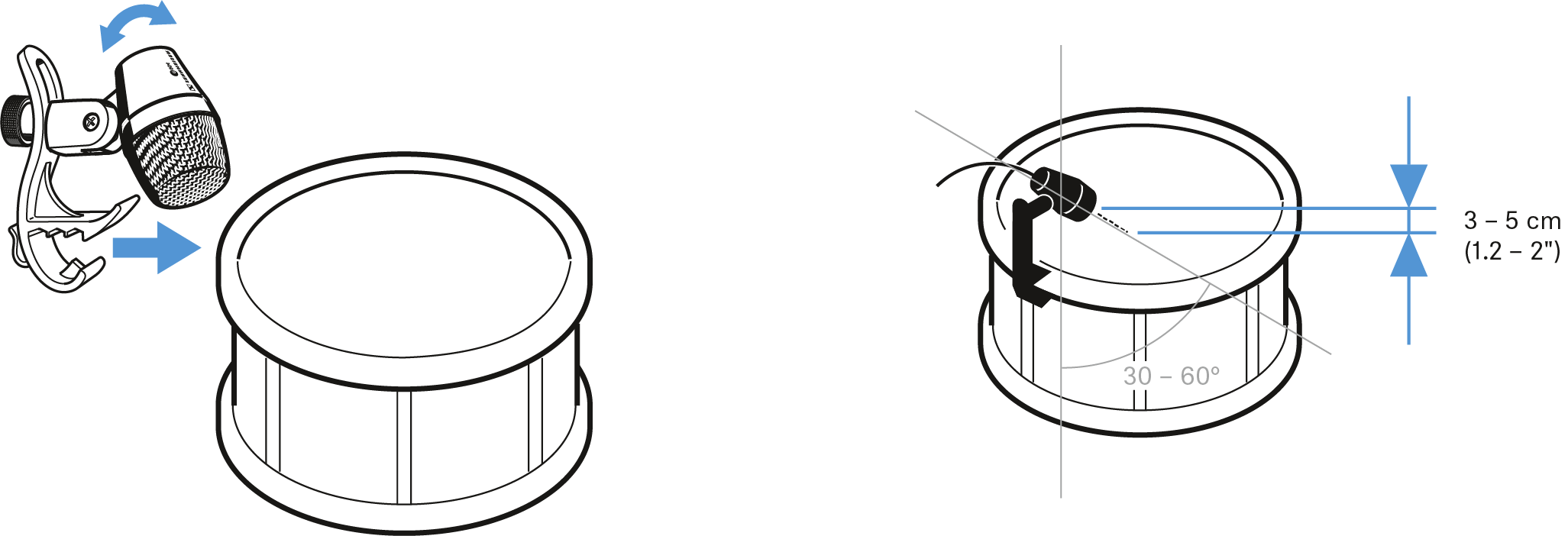

Use the microphone clamp MZH 604 to attach the e 904 to the rim of the drum.
Position the microphone on the drum so that it is 3 to 5 cm above the drumhead.
It is vital to observe the following notes:

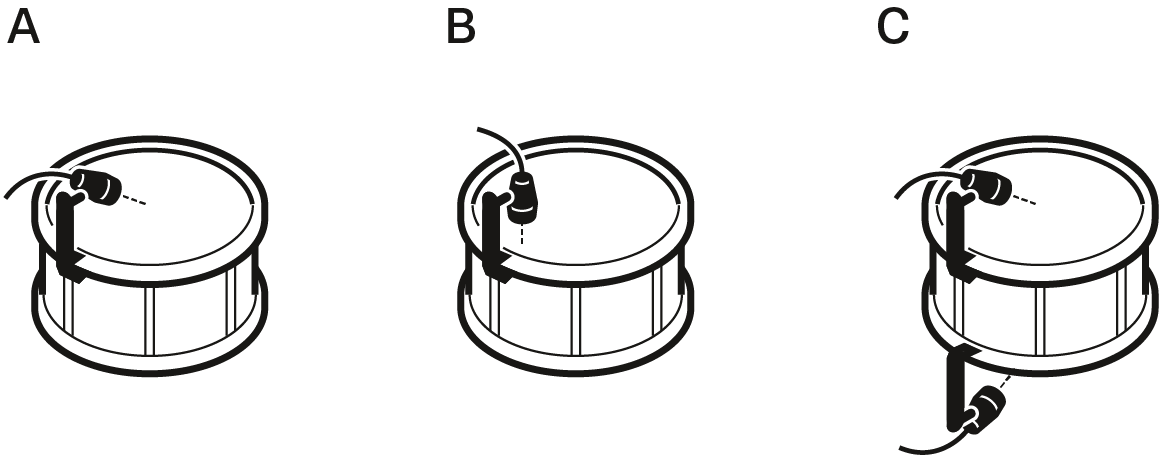

- Position A and B: The fundamental to overtones ratio can be adjusted by changing the angle of the microphone. The most balanced results are obtained at an angle of 30 to 60°.
  - Resulting sound A: More fundamental; little overtones
  - Resulting sound B: Less fundamental; many overtones
- Position C: Use of a second e 904 for picking up the bottom of the drumskin and the snares.
  - The lower microphone must be phase-reversed to avoid phase-cancellation effects due to the second microphone being on the other side of the drumskin

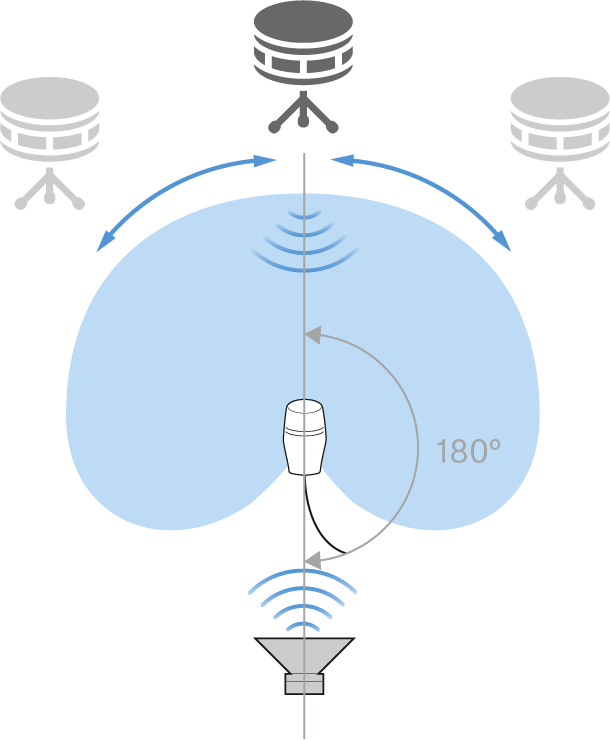

Positioning the monitor loudspeakers

To prevent feedback and crosstalk, postion your monitor loudspeakers in the angle area of the highest cancellation of the microphone (approx. 180°).
