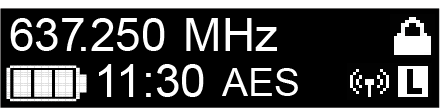

Displays on the SK 6212 bodypack transmitter display panel

You can view the following information on the transmitter display.

Remaining battery life

Shows the remaining battery life and the transmitter operating time.

Frequency

Shows the set frequency.

Alternatively, the name of the radio link can also be displayed here. See Home screen.

Encryption

The radio link between the receiver and transmitter is secured with AES 256 encryption.

The encryption can be set only on the receiver, not on the transmitter.

See Encrypting the radio link.

Lock mode

The lock-off is activated on the transmitter.

See Operating the menu of the SK 6212 bodypack transmitter.

Transmission power/transmission mode

The standard transmission mode of the transmitters in the Digital 6000 series is Long Range mode (LR).

If required, Link Density mode (LD) can be activated in the menu of the EM 6000 (see System -> Transmission Mode menu item) in order to accommodate even more channels in the available frequency spectrum.

For more detailed information about Link Density mode, see Link Density Mode.

LR mode can be set in two transmission power levels: Standard (15 mW) and Low (3.5 mW). See Operating the menu of the SK 6212 bodypack transmitter.

If nothing is shown in the display at this point, it means that LR mode is active with the standard setting.
If L is displayed, LR mode is active with the low setting.
If LD is displayed, LD mode is active.
