EM 6000 | EM 6000 DANTE 2-channel receiver
The digital 2-channel receiver works with a switching bandwidth of 244 MHz (470 to 714 MHz), which is covered by three transmitter versions.
For larger 4-channel systems, you can cascade up to 8 EM 6000s without using additional antenna splitters and you then require only one pair of antennas.
The 2-channel receiver is available in 2 variants:
- EM 6000 | 470 – 714 MHz, article no. 506657
- EM 6000 DANTE | 470 – 714 MHz, article no. 508475
The EM 6000 DANTE variant is identical in construction to the EM 6000. The only difference is that it also has an integrated Dante® interface (Audinate Brooklyn II) for connecting the device to a Dante® network. Two modes are supported for the two Dante® sockets: Redundant and Through.
You can find more detailed information about the EM 6000 in the following sections:
- Installation and Operation: EM 6000 2-channel receiver
- Specifications: EM 6000 2-channel receiver | EM 6000 DANTE 2-channel receiver
Delivery includes
- EM 6000 or EM 6000 DANTE 2-channel receiver
- 3 mains cables (EU, UK, and US variant)
- 2 antennas
- 2 antenna cables (BNC, 50 Ω)
- 4 rubber feet
- Quick guide
- Safety instructions
- Approval sheet
Product overview

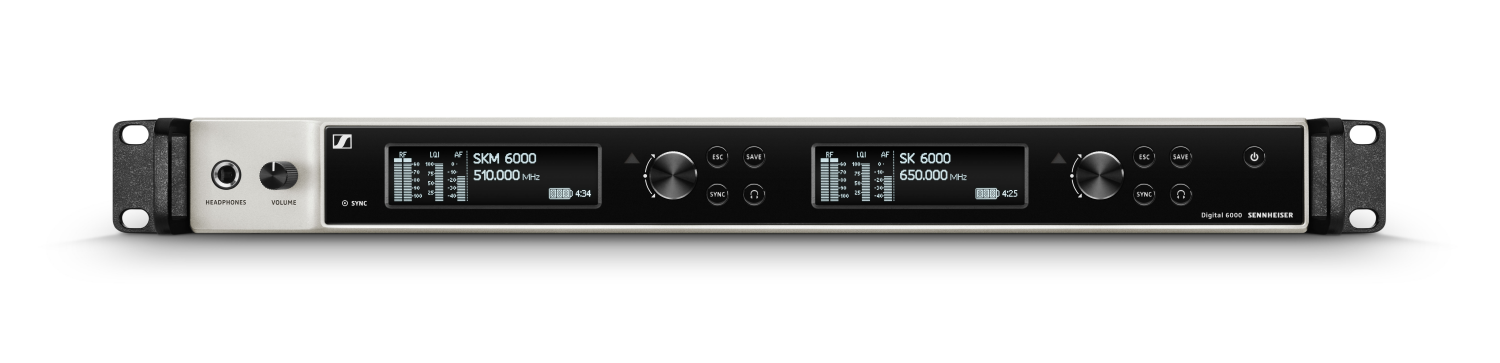

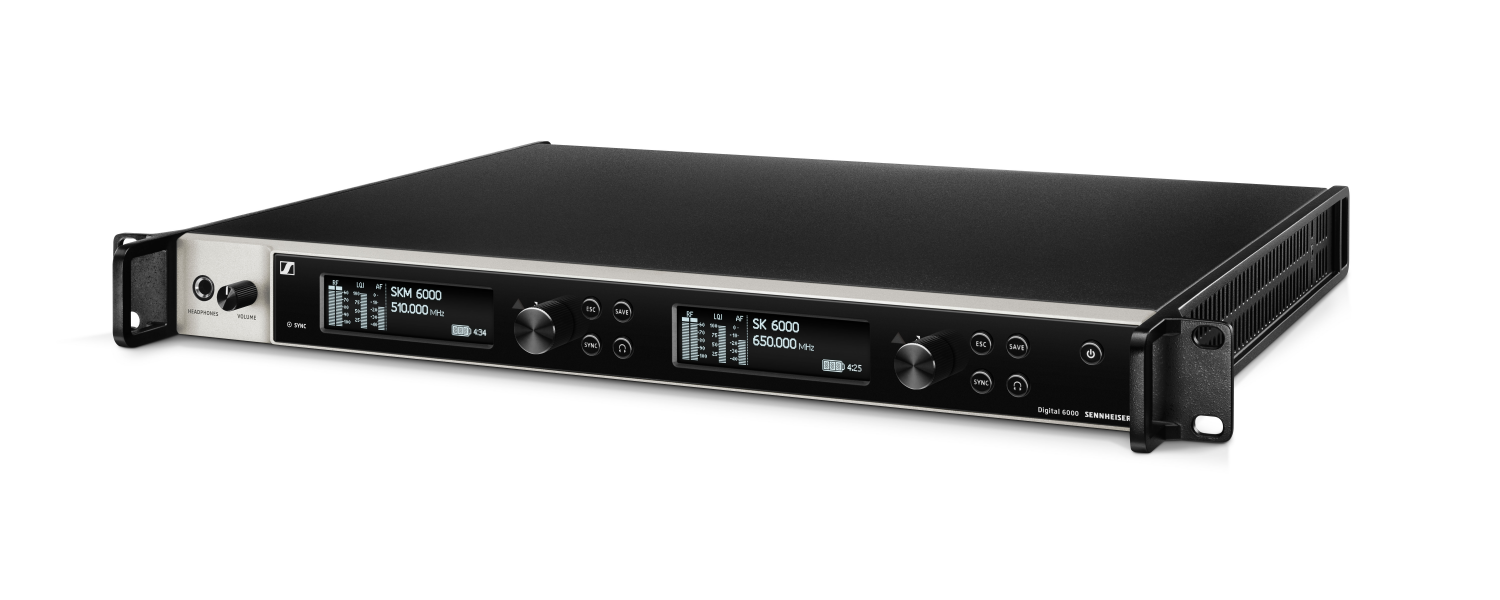

View of the front side:

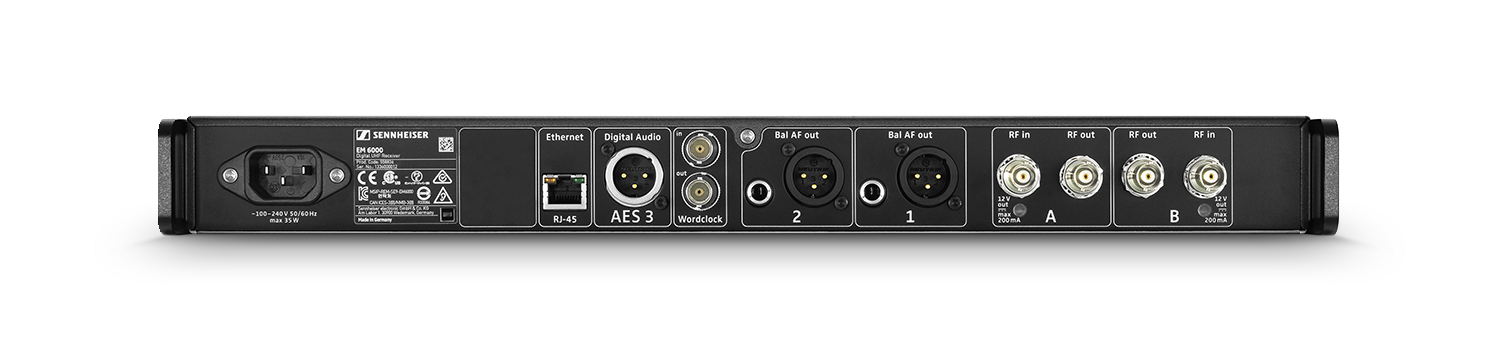

Rear view of the EM 6000:

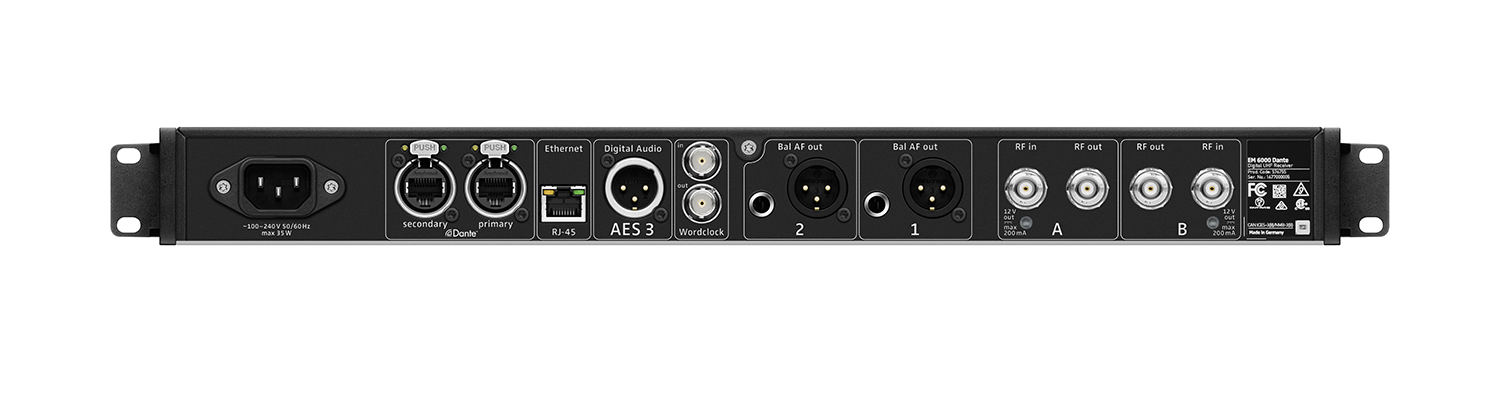

Rear view of the EM 6000 DANTE:
