Connecting the microphone

To connect the microphone:

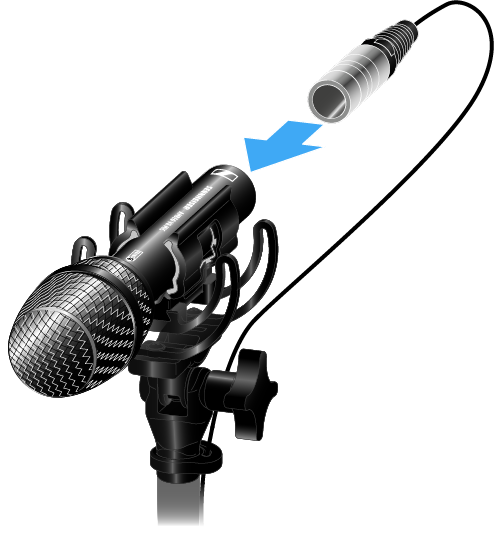

Connect the adapter cable to the microphone's connection socket.

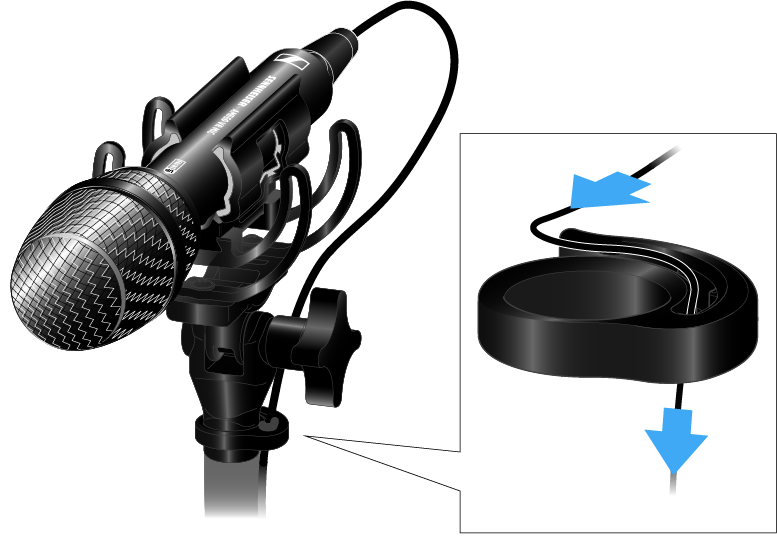

Pass the adapter cable through the cable grip.

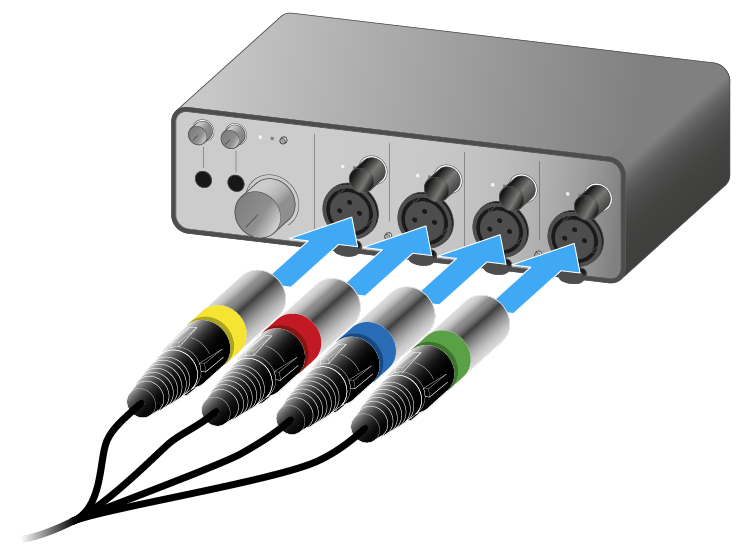

Connect the XLR connector of the adapter cable to a suitable audio interface.
The audio interface must deliver 48 V phantom power.
- Channel 1: yellow XLR connector
- Channel 2: red XLR connector
- Channel 3: blue XLR connector
- Channel 4: green XLR connector
