Operation as a networked conference system

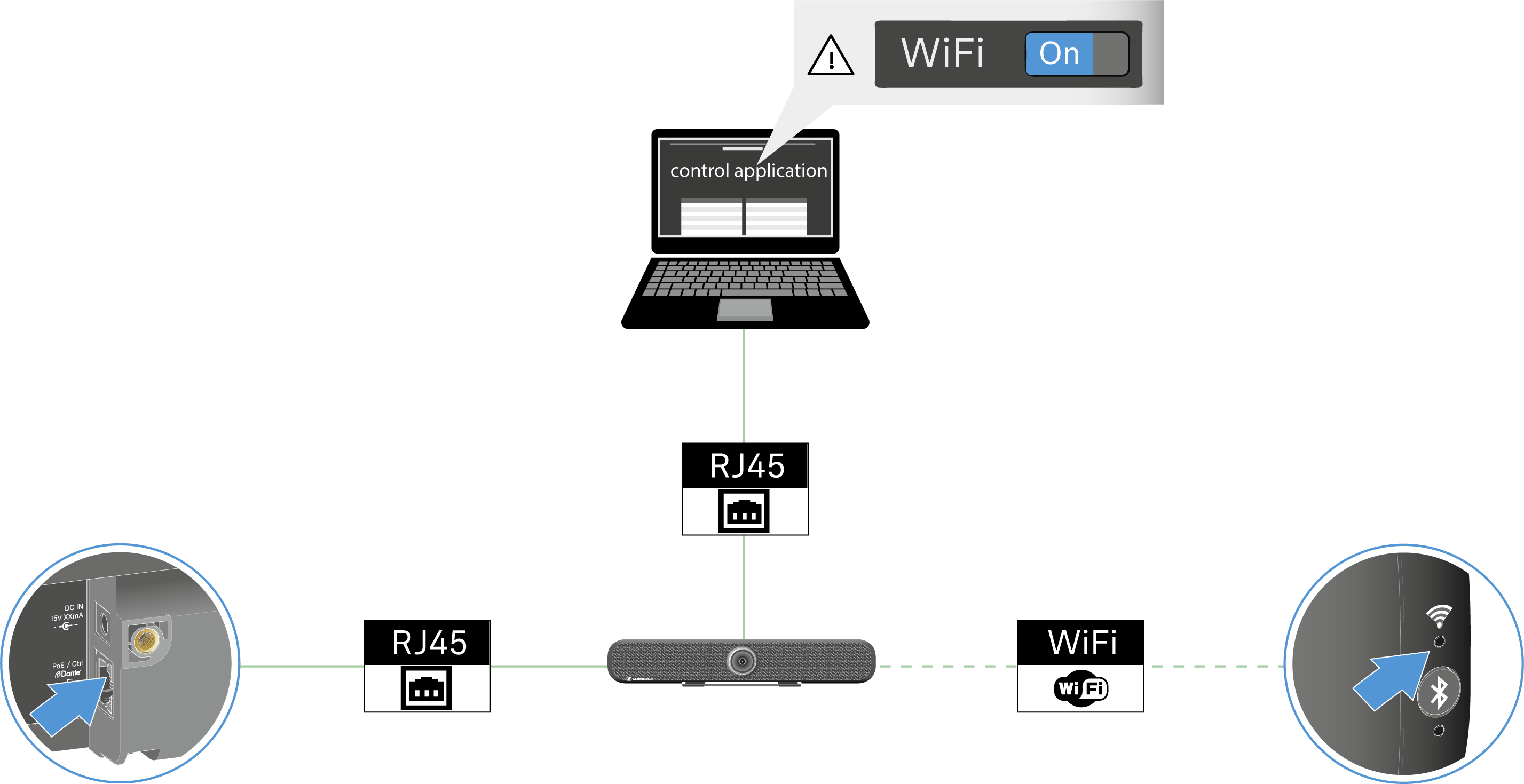

When the TC Bar is operated as a networked conference system, you can use the control application to remotely control and monitor the TC Bar.



You have the option of controlling the TC Bar with the aid of a media control protocol using a programming interface (REST API). You can find the media control protocol for the TC Bar under Third-party API for Sennheiser products.

You can control and monitor the TC Bar remotely using the control application. The application supports the following functions for the TC Bar:

Audio

  • Selecting the sound profile based on the mounting variant
  • Configuring microphone amplification, sensitivity, and noise threshold
  • Modifying the automix priority of connected microphones
  • Modifying the conference output (far end and near end)
  • Modifying the noise suppression
  • Modifying the speaker output
  • Muting all microphones
  • Activating external Dante® speaker output
  • Activating/deactivating the function Location-based Mute
  • Muting the internal microphone
  • Resetting audio settings

Zones

  • Activating/deactivating and adjusting a priority zone
  • Activating/deactivating and adjusting one to three exclusion zones

Device

  • Performing firmware updates
  • Adjusting the device name
  • Adjusting the location
  • Adjusting the LED brightness
  • Selecting the device profile (MS Teams, Zoom, or Custom
  • Activating/deactivating the sound prompts
  • Rebooting the device
  • Activating/deactivating remote control function
  • Activating/deactivating the function DisplayLink® (HDMI)
  • Changing the energy saving mode
  • Restarting the device
  • Resetting to factory settings

Network

  • Adjusting the control and Dante® settings
  • Activating/deactivating Bluetooth®
  • Activating/deactivating the Dante® protocol
  • Activating/deactivating continuous Dante® stream
  • Choosing the network mode

Camera

  • Activating/deactivating and adjusting the white balance
  • Activating/deactivating and adjusting the exposure
  • Adjusting the brightness
  • Adjusting the contrast
  • Adjusting the saturation
  • Adjusting the sharpness
  • Activating/deactivating lowlight compensation
  • Activating/deactivating backlight compensation
  • Selecting the anti-flicker frequency
  • Selecting the auto frame speed
  • Selecting the zoom speed
  • Selecting the tilting and panning speed
  • Activating remote-controlled functions
    • Enabling auto framing
    • Enabling person tiling
  • Choosing the default camera mode
  • Resetting the camera to factory default settings

Access

  • Third-party access
  • Device access
