Identifying paired devices

You can perform a pairing identification to see which transmitter is paired with which receiver.

With the SL Rack Receiver DW, you can perform pairing identification on the deivce or in the Control Cockpit.

With the SL MCR DW, you can only perform the pairing identification in the Control Cockpit.

The SL Rack Receiver DW
  1. Short-press the PAIR button of the receiver or of the transmitter.
    Or
  2. Press the Find button of the desired device from the device list in the Control Cockpit.

    • Identify appears on the display panel of the receiver.
    • The message This is Name appears on the transmitter's display (only SL Handheld DW and SL Bodypack DW).
    • The status LEDs of the paired devices flash green for 10 seconds.
    • The device's icon in the Control Cockpit flashes for 10 seconds.
    • The display returns to the standard display after 10 seconds.

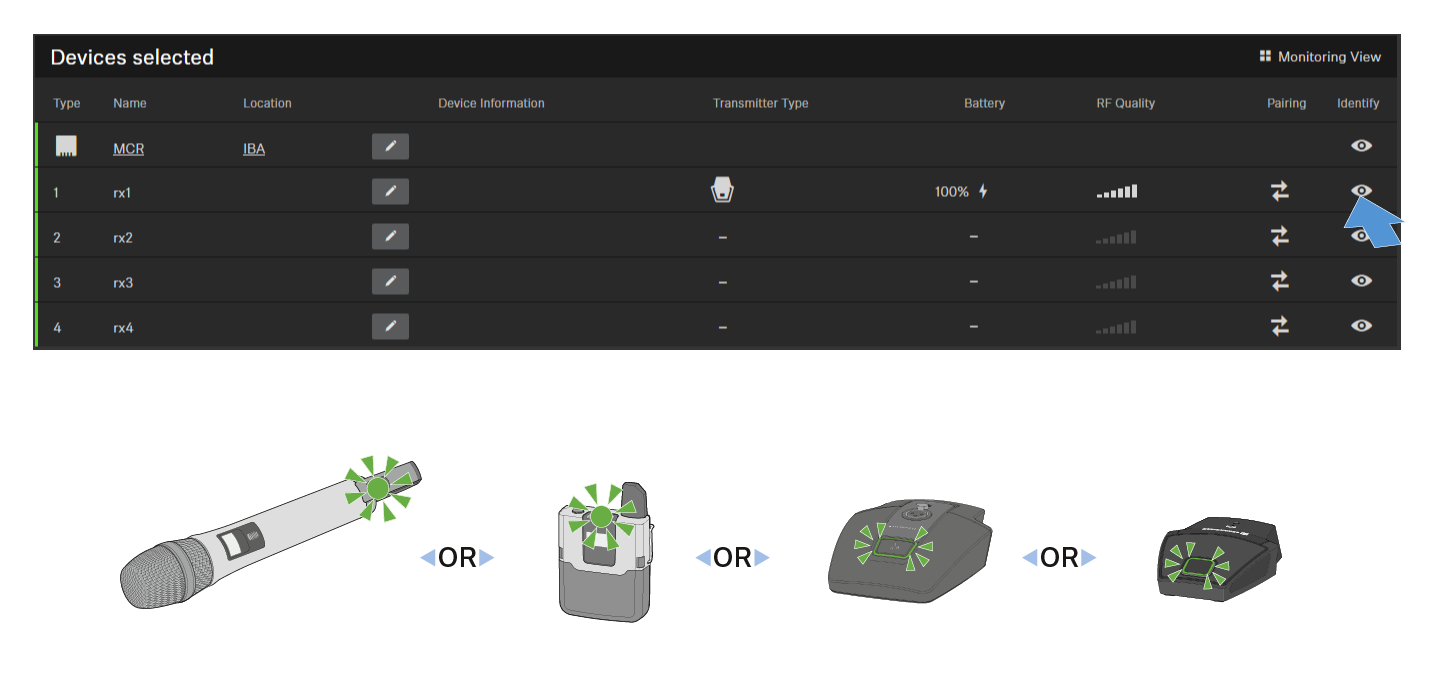

SL MCR DW
  1. Press the Find button of the desired channel of the desired device from the device list in the Control Cockpit.

    • The message This is Name appears on the transmitter's display (only SL Handheld DW and SL Bodypack DW).
    • The status LEDs for the relevant channel will flash green for 10 seconds on the SL MCR DW and the paired transmitter.
    • The device's icon in the Control Cockpit flashes for 10 seconds.
