Connecting the microphone
| Restriction | |
|---|---|
Damage to the product due to an unsuitable power supply!
An unsuitable power supply can cause damage to the product.
Only connect the product to microphone inputs or power supply units which provide 48 V phantom powering as per IEC 61938.
| |

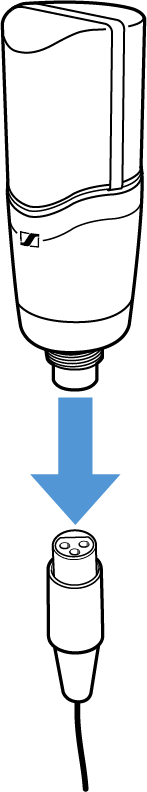

Use a microphone cable with XLR-3 female connector to connect the microphone’s XLR-3 male connector to the microphone preamplifier
(48 ± 4 V phantom powering as per IEC 61938, at least 3.5 mA per channel, see Pin assignment of the XLR-3 connector)
.
.
