Product overview

Front

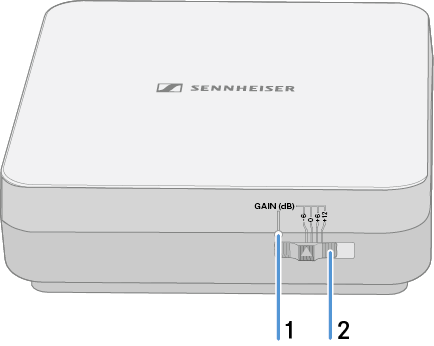

1	Gain LED See Setting the gain
2	Gain switch See Setting the gain

Bottom

3	DC in connection socket for the power supply unit See Connecting the cable to the antenna
4	BNC socket for RF out See Connecting the cable to the antenna
5	Wiring duct See Connecting the cable to the antenna

Mounting frame and drilling template

6	Mounting frame See Installing and mounting the antenna
7	Hole ø5.5 mm
8	Drilling template See Installing and mounting the antenna
