Advanced > RF Power menu item

Configuring the transmission power

Setting range:

Low: 10 mW
Standard: 30 mW
High: 50 mW

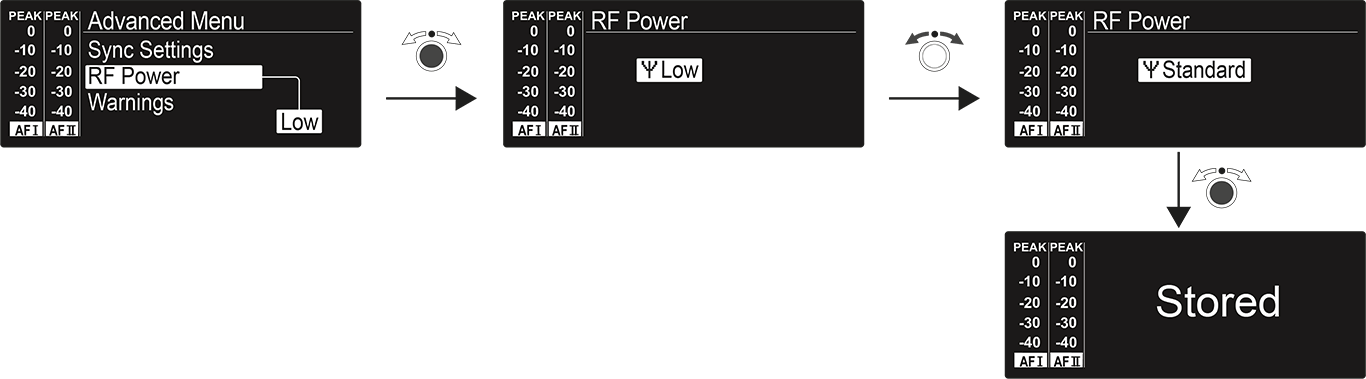

You can configure the transmission power in three steps in the RF Power menu item. Please note the general conditions and restrictions for the use of frequencies: sennheiser.com/sifa.

When synchronizing your transmitter with an EK 2000 IEM receiver, please observe the following:

Only use a transmitter and a receiver from the same frequency range (see the type plate on the transmitter and the receiver).
Make sure that the desired frequencies are listed in the enclosed frequency information sheet.
Make sure that the desired frequencies are approved and legal in your country and, if necessary, apply for an operating license.
